The difference seems to be in the damping of ringing, so I searched the model parameters using the keyword “dump.”
Actually, I didn’t think the Vp parameter affects the ringing behavior.

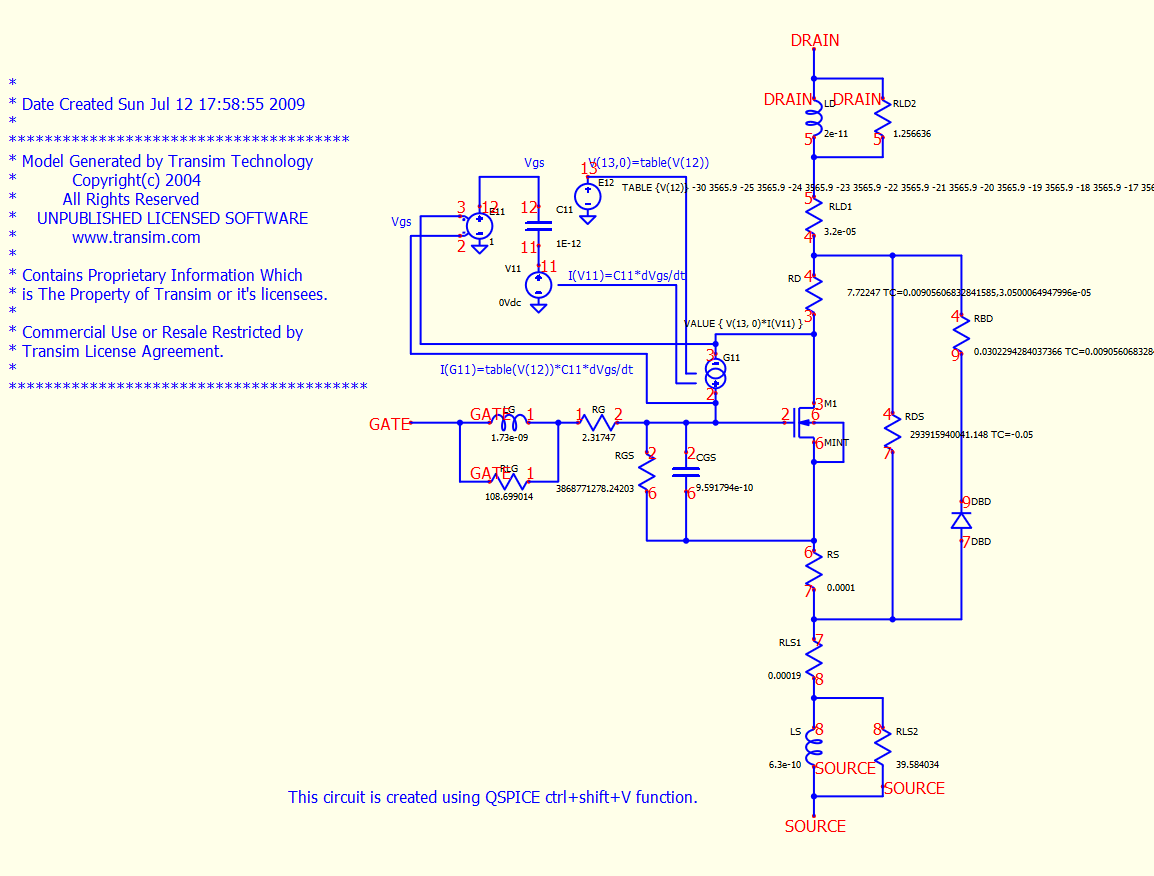

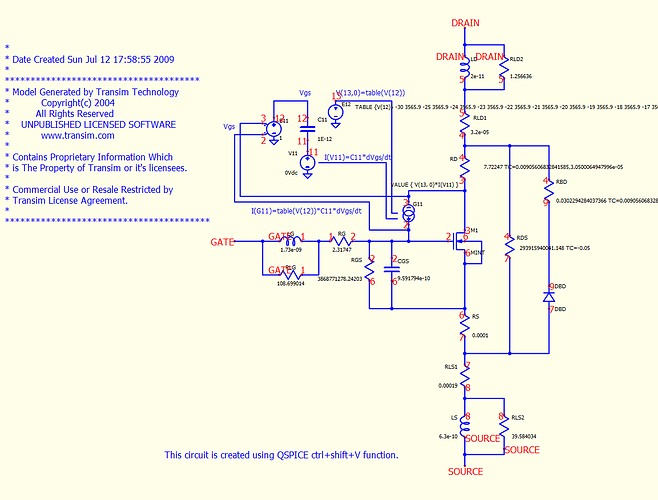

One more thing: I converted the 2SK2225 subcircuit netlist into a schematic using the Ctrl+Shift+V command.
That was really helpful for understanding the 2SK2225 subcircuit.
