Voltage signal source with given response

[youngchan]

Hi,
I want to create a signal source with given response data set. Any suggetion how to do it?
Thanks.

[ivan1]

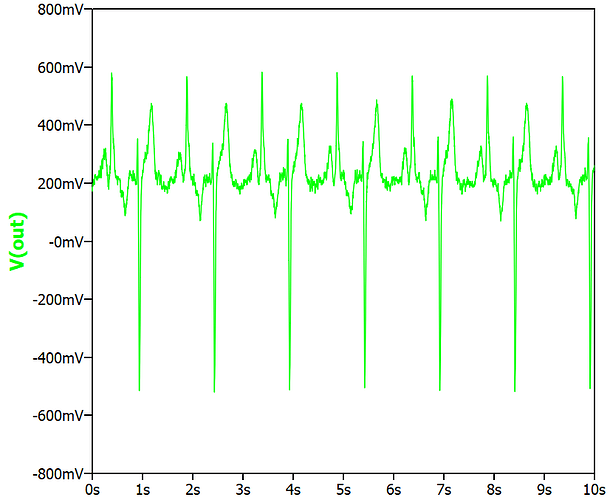

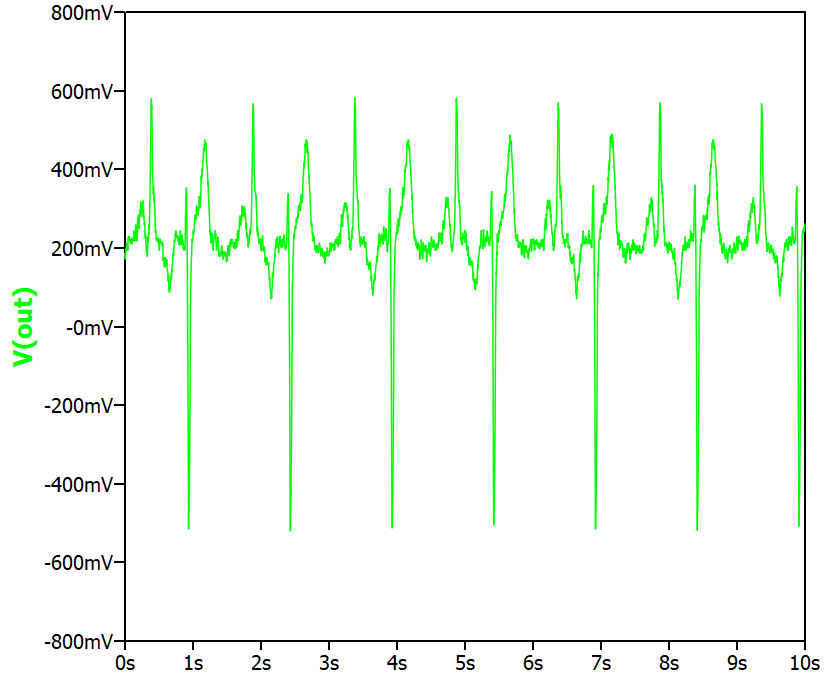

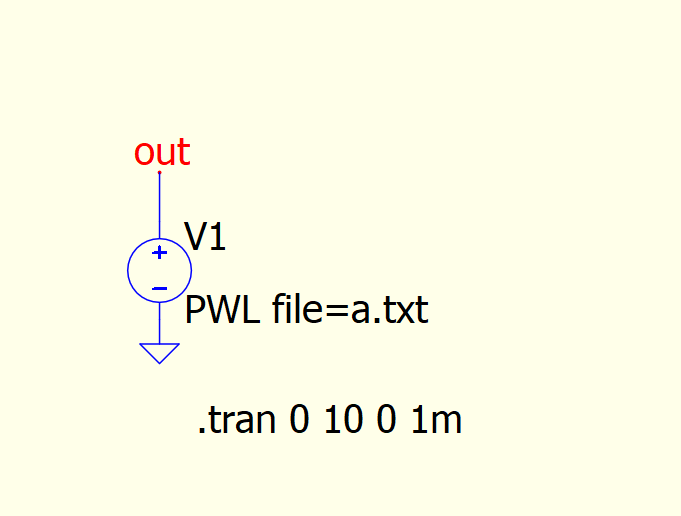

You can use PWL file command. Here is how it is used.

When you use txt file you need to save qspice schematics in the same file.

Untitled.qsch (930 Bytes)
a.txt (715.2 KB)

Best regards

[KSKelvin]

@ivan1

When you use txt file you need to save qspice schematics in the same file.

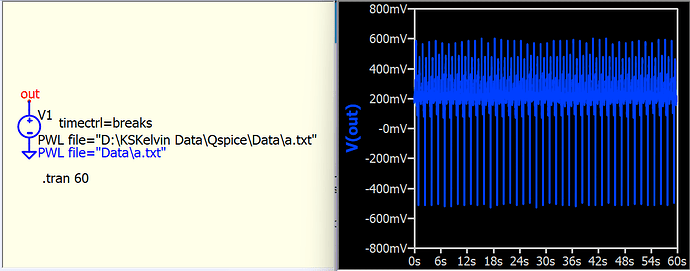

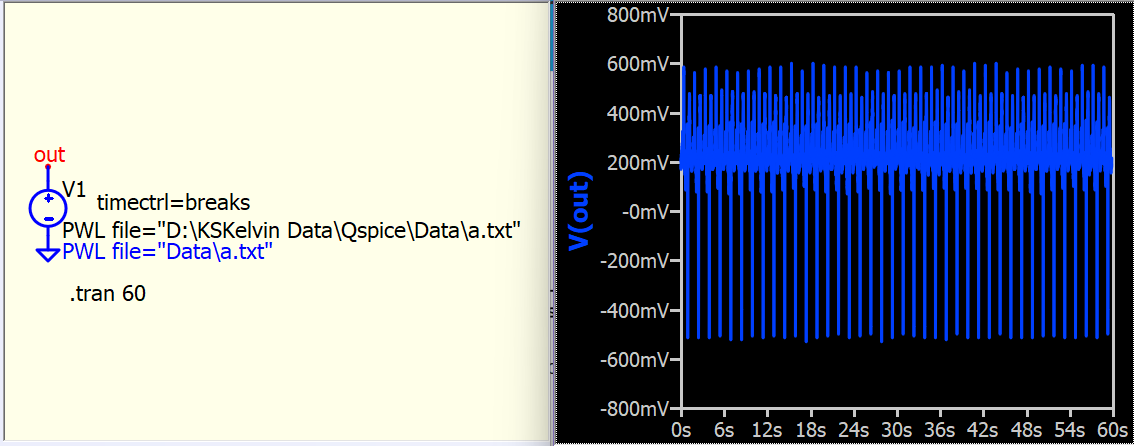

Additional Information:

• You can load a file from an absolute or relative path with " "
• Add timectrl=breaks to force the timestep to hit each breakpoint in the data.
