I am trying to use a G source where I want to relate its transconductance to voltage of a node. Is it possible to do in the QSPICE? Thanks in advance!
Thanks for the help!
@ivan1 already mentioned an alternative solution. But for your information, it is possible to use G-source with legacy syntax.

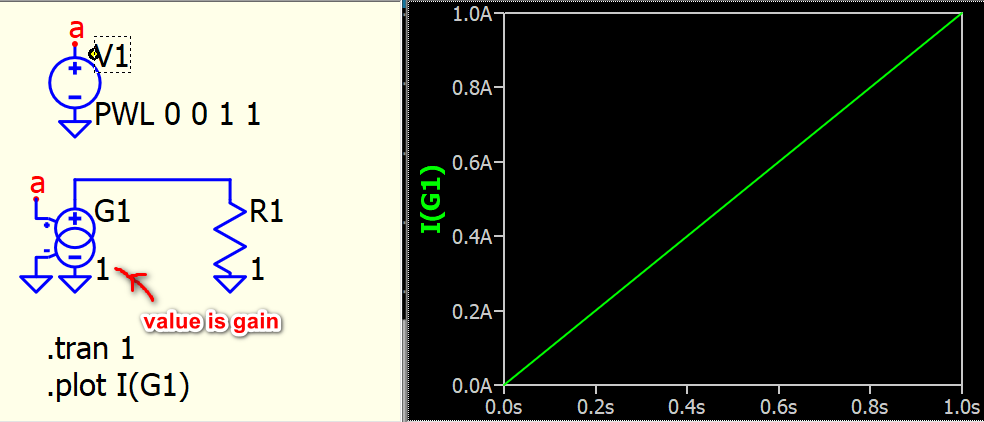

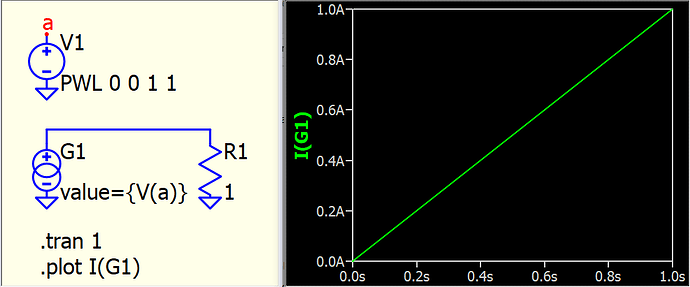

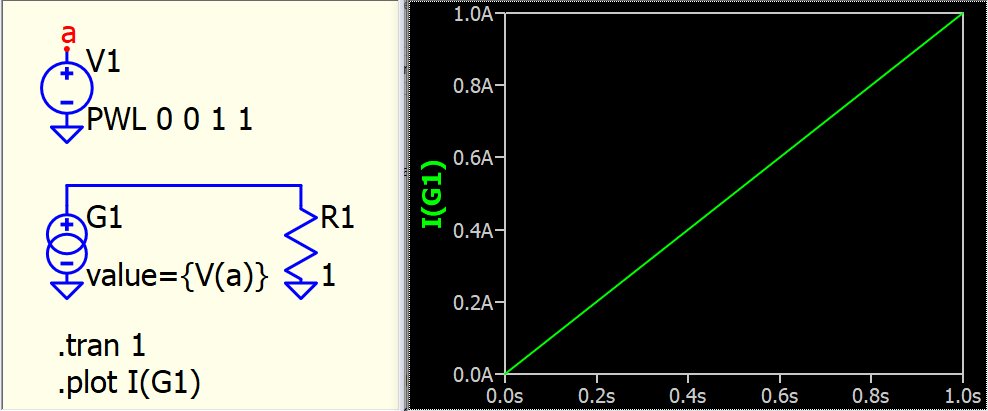

Qspice actually support G-source with two terminals only in netlist format. However, Qspice default symbol only offers 4-terminal G-source. You have to create a two-terminal symbol (I attach a symbol for your reference), and with value={expression} for G-source (** curly bracket is required in this usage)
G-Source Two-terminal.qsym (696 Bytes)
1 Like
By the way, I took a look at your question again, and perhaps it would be better to also show you how to connect a 4-terminal G-source.

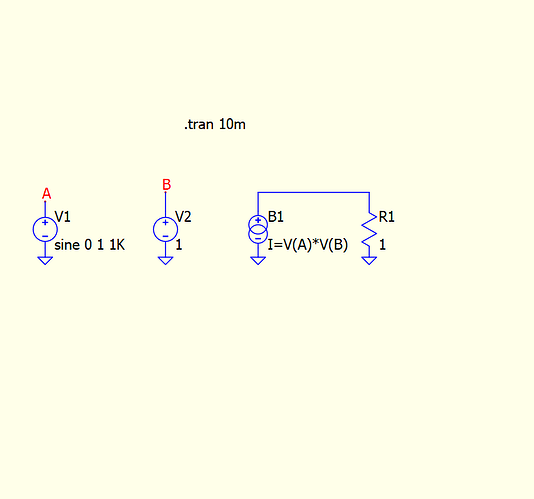

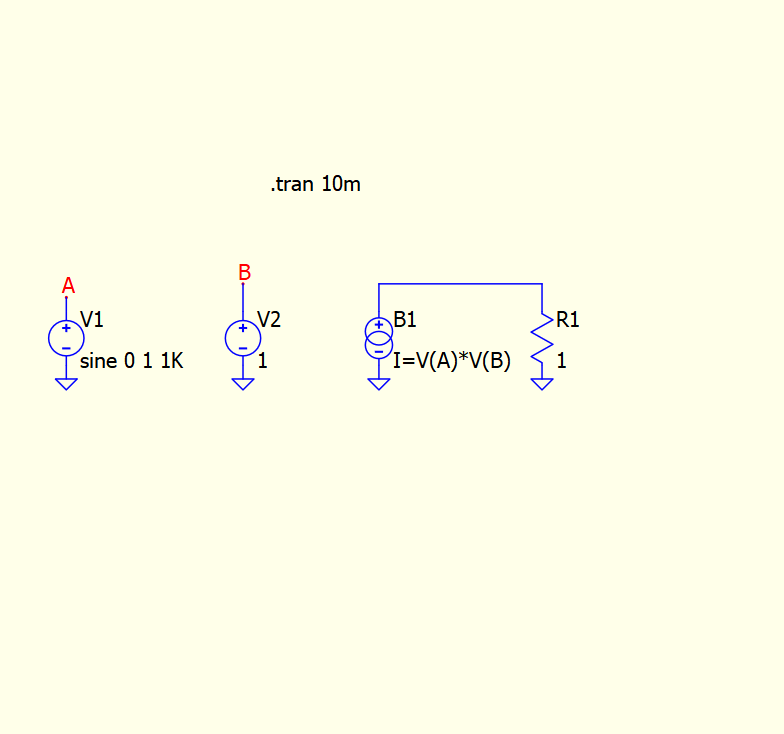

Thanks for the explanations. I see your point, but I wanted to make the gain voltage dependent. For example, I want to replace the gain “1” with a syntax such as {V(node01)}. I applied the method @ivan1 mentioned and it worked fine.
