How to use the UC3825A example model and create my own custom schematics?. I tried copying the symbol into new schematic and added the example folder in the library attribute. It doesn’t work. Any other method?. Thanks

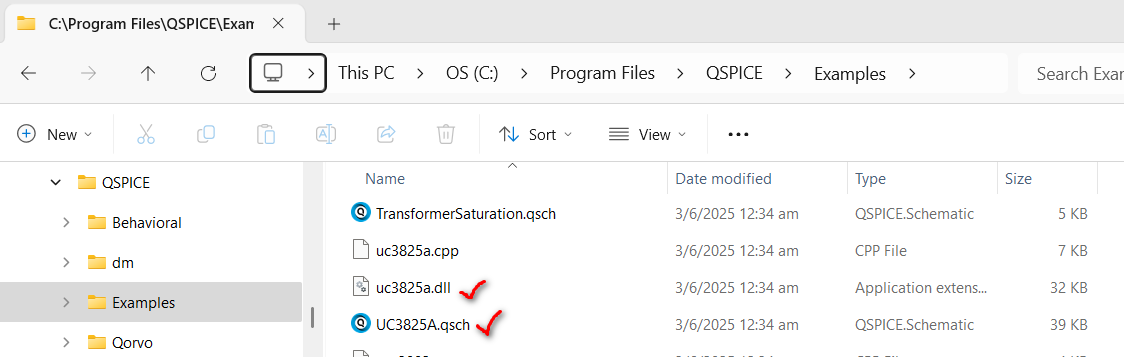

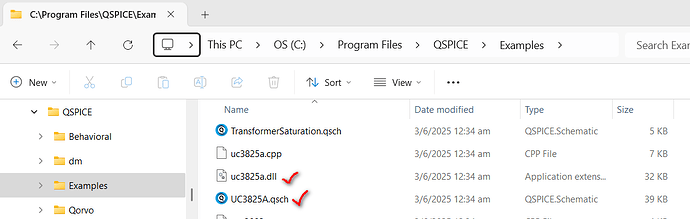

The UC3825A symbol in ExampleUC3825A.qsch is a hierarchical symbol that links to a child schematic. In the child schematic, it contains a DLL block and links to a .dll file. Therefore, the easiest way is to have that child schematic and dll file also in your working folder.
embedded subckt symbol
This is a subckt symbol which contains embedded .subckt netlist, you can drag this symbol to your schematic (.qsym doesn’t have to include in working directory), but you still have to put the .dll into your working folder, or using .libpath to link to it.
UC3825A(with .subckt).qsym (2.6 KB)
Upload the simulation file you are currently working, except .dll file.
I expect you run your simulation in latest version of Qspice. (Window platform?)

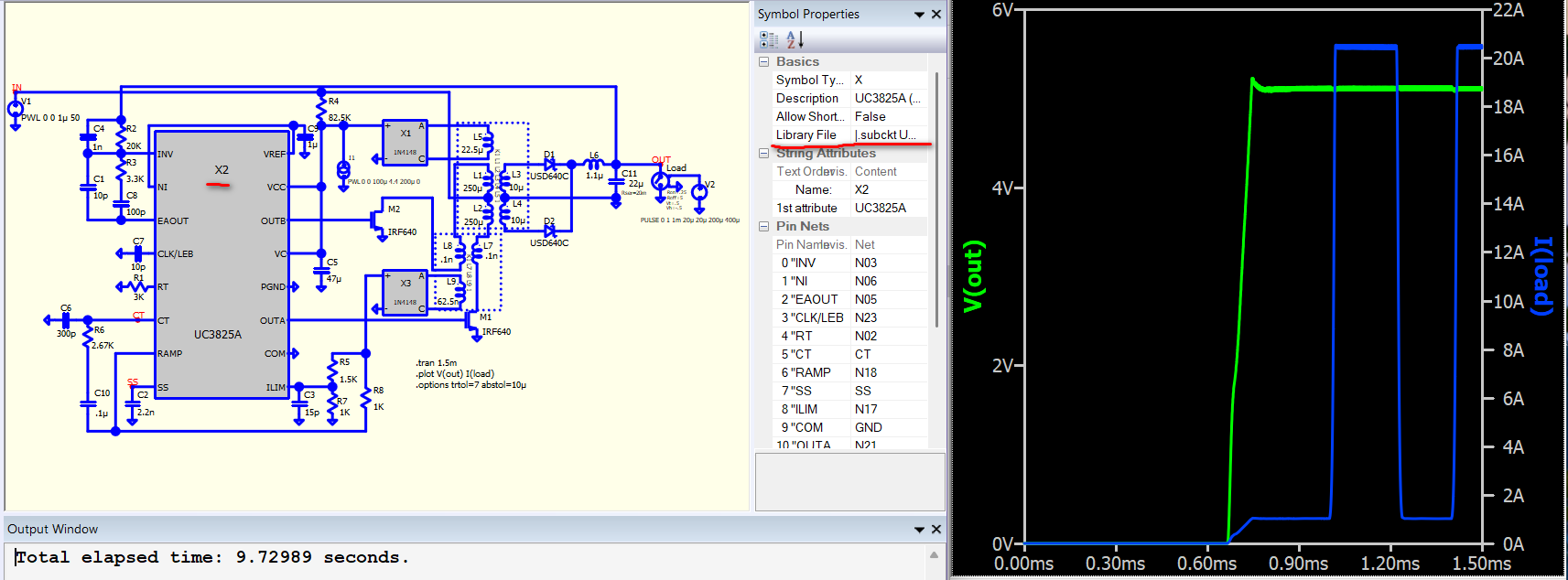

I don’t see a problem in running this schematic. Hierarchical symbols are replaced with embedded subckt symbol in this schematic in Qspice demo.
parent.UC3825A.qsch (32.1 KB)
