Simulation Step Tool change -- Loss of Step info

QSPICE
1

Hi,

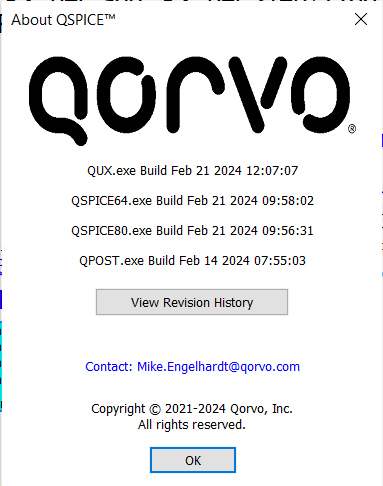

I updated to the latest QSPice

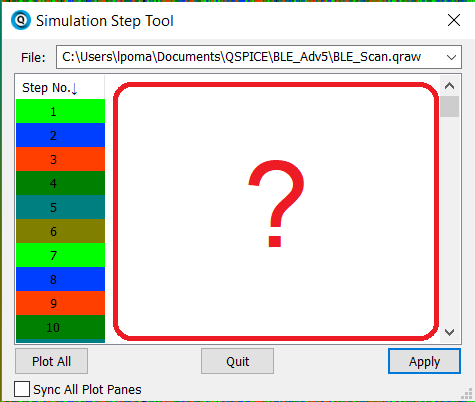

I noticed when I run my multi-step sims, the Simulation Step Tool no longer lists the step values used at each step iteration. It’s an empty space.


Len

2

To all,

I have THE answer!!!

In most of my stepped sims, the step values show up in the Step Tool. However in certain stepped sims, no.

In the stepped sim that doesn’t show the step values, I was using the new feature that Mike provided: .save

When I use that feature, the step values are missing. I comment the .save line and the step values appear in the Step Tool.

Len
