QSPICE Schematic Capture (Vishay Triphase)

QSPICE
1

For this week’s QSPICE schematic capture, we have “Triphased Inrush Current Limiter” by our friends at Vishay. This schematic capture demonstrates the MS327R015 Vishay Ametherm Inrush Current Limiter. (Schematic Capture Post #053) Please send any submissions to tim.mccune@qorvo.com.

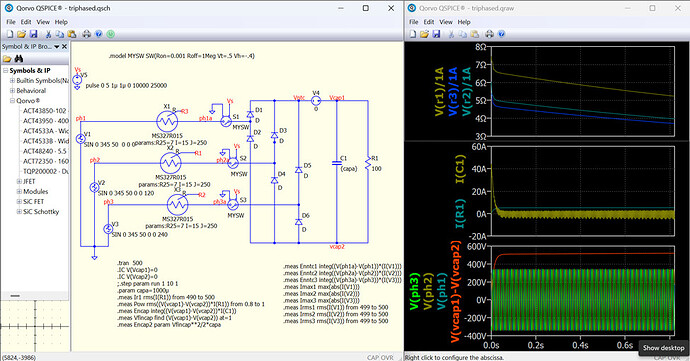

image975×511 167 KB

triphased.qsch (18.9 KB)
ametherm3.txt (43.3 KB)
