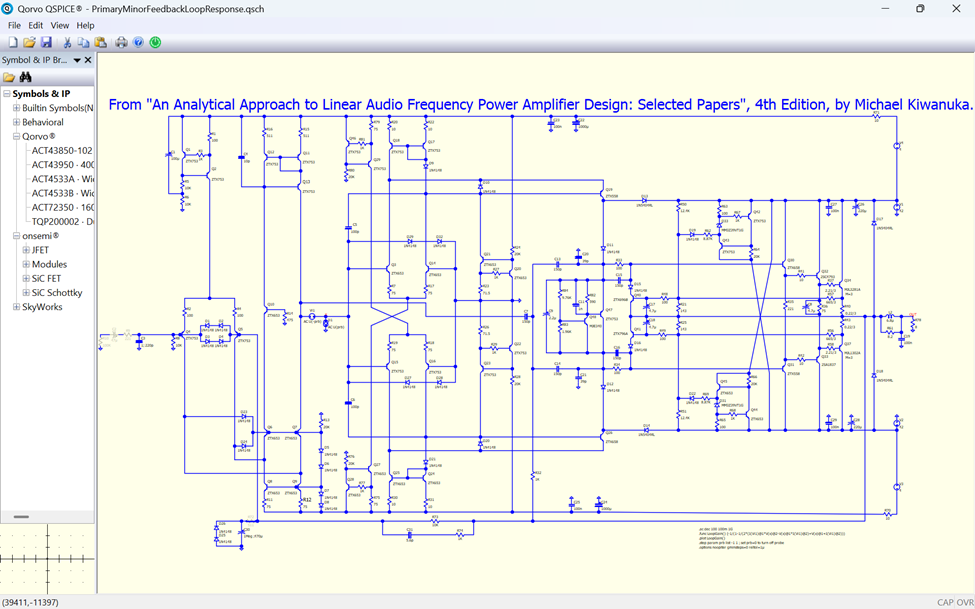

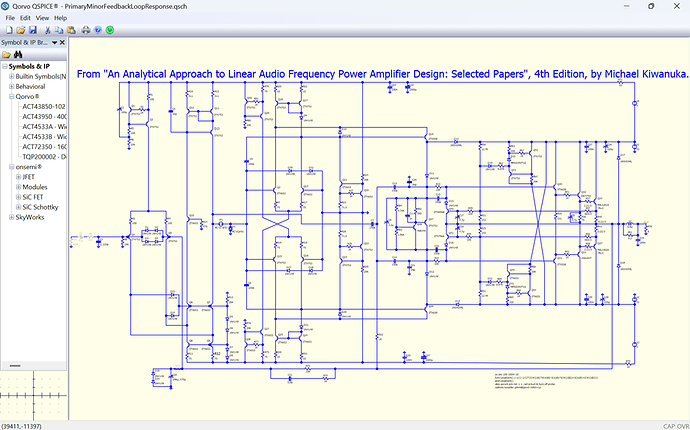

Here’s this week’s schematic capture, by frequent audio circuit simulation contributor Michael Kiwanuka. This one is from his “An Analytical Approach to Linear Audio Frequency Power Amplifier Design: Selected Papers,” 4th Edition. (A great book, available on Amazon.) This circuit is in the QSPICE library, under File=>Open Demo=>Michael Kiwanuka…=>PrimaryMinorFeedbackLoopResponse.qsch. Please send any submissions to me at tim.mccune@qorvo.com. (Schematic Capture Post #075)
