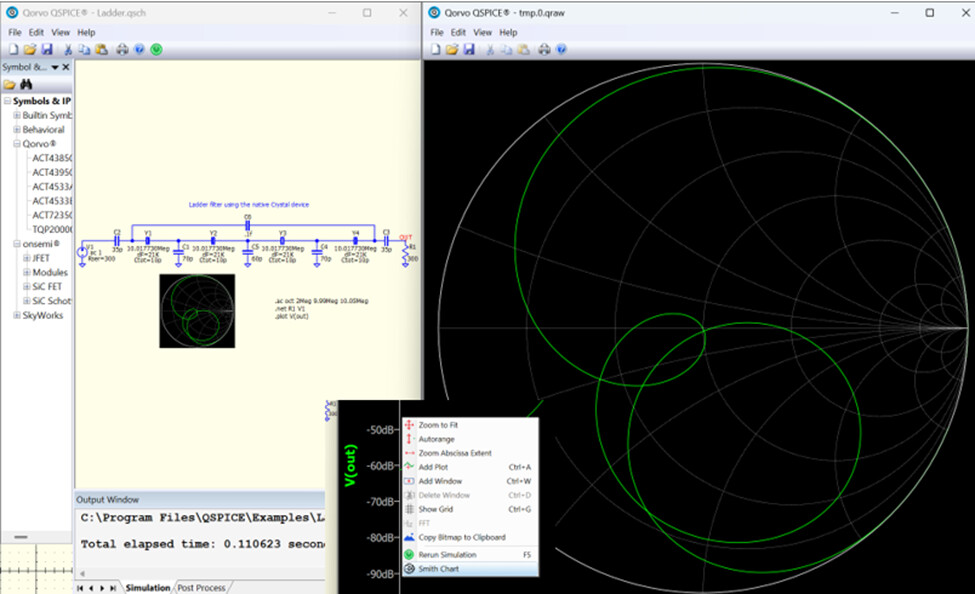

Here’s this week’s schematic capture, by our own Mike Engelhardt. This schematic capture is in the new release under File=>Open Demo…=>Ladder and shows QSPICE’s ability to display Smith Charts. Go to File=>Open Demo=>Ladder.qsch. Run that simulation. Put your cursor on a vertical axis of the graph and right click. On the dialog box that appears, click on "Smith Chart.” Please send any submissions to tim.mccune@qorvo.com. (Schematic Capture Post #079)
