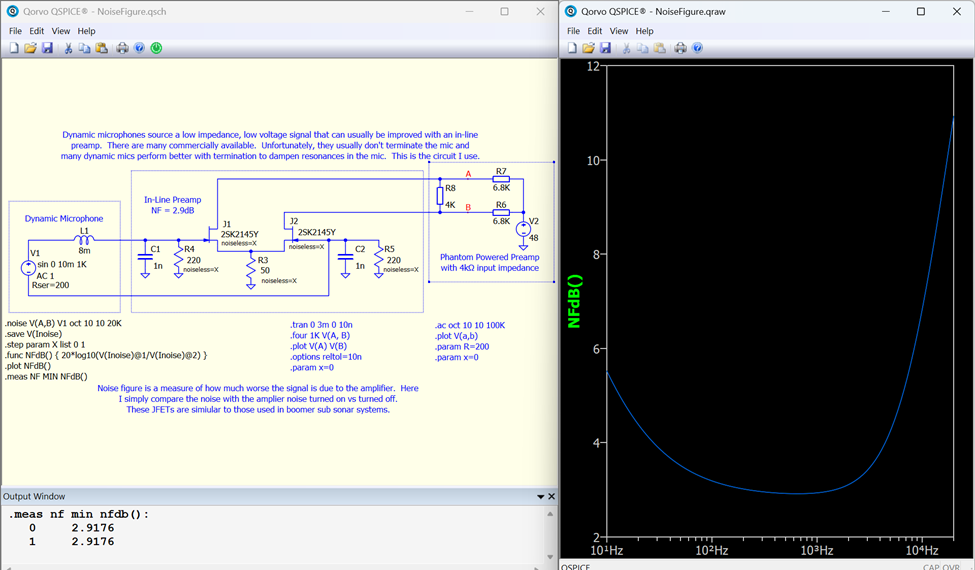

This schematic capture is one by our own Mike Engelhardt. “Dynamic microphones source a low impedance, low voltage signal that can usually be improved with an in-line preamp. There are many commercially available. Unfortunately, they usually don’t terminate the mic and many dynamic mics perform better with termination to dampen resonances in the mic. This is the circuit I use.” This schematic capture is in the QSPICE® release under File=>Open Demo…=>NoiseFigure. Please send any submissions to tim.mccune@qorvo.com. (Schematic Capture Post #072)
