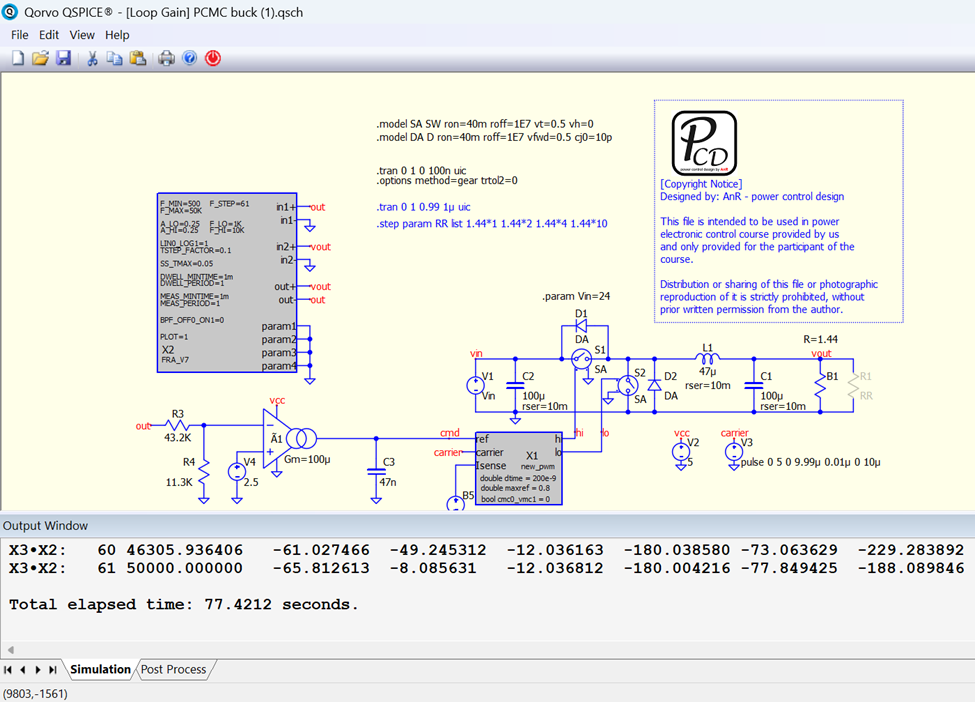

For this week’s QSPICE schematic capture, we have a “Loop Gain PCMC buck,” a C block implementation in QSPICE by our friend Arief Noor Rahman. “C block implementation in QSPICE is a big leap ahead compared to other software packages, even the proprietary ones with potential application beyond the controller modeling.” This user @physicboy/Arief Noor Rahman uses the advance C block to develop his own custom bode/FRA analyzer. His implementation focused on memory-less real-time spectrum analysis for a general-purpose circuit analyzer. Files for this are available at: QSPICE/FRA_project/FRA-V7 example on PCMC buck at main · physicboy/QSPICE · GitHub
