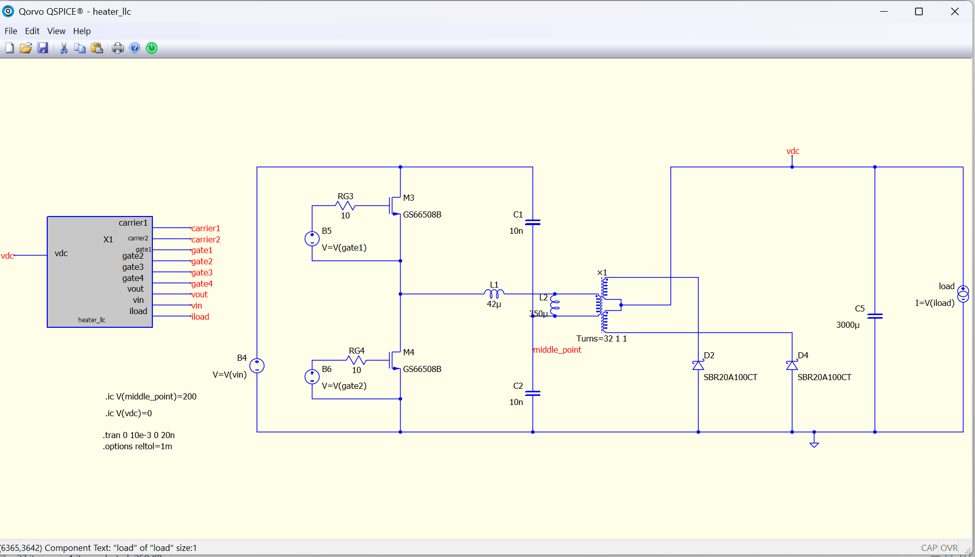

This week’s QSPICE Schematic Capture features an impressive LLC resonant converter demonstrating QSPICE’s ability to simulate complete power electronics systems from our friend Jari Honkanen.
Highlights include:
• Half-bridge LLC resonant topology
• GaN Systems GS66508B primary switches
• High-frequency transformer and resonant tank
• onsemi Schottky output rectifiers
• Custom DLL-based controller generating the gate-drive signals
This design is an example of how QSPICE combines traditional SPICE simulation with advanced C++/DLL modeling to simulate both the power stage and its digital control environment. Find more information at: qspice_dab_and_pfc/qspice_ref_models/heater_llc at main · johonkanen/qspice_dab_and_pfc
Have a schematic you’d like to share? We’d love to feature it in a future post. Please send any submissions to tim.mccune@qorvo.com. (Schematic Capture Post #099)
