QSPICE Schematic Capture (Driver Board Application)

QSPICE
,
1

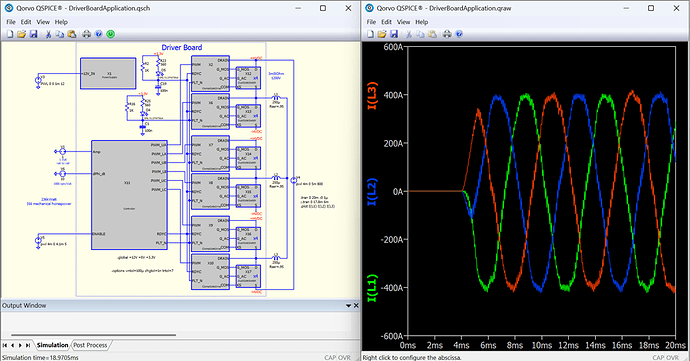

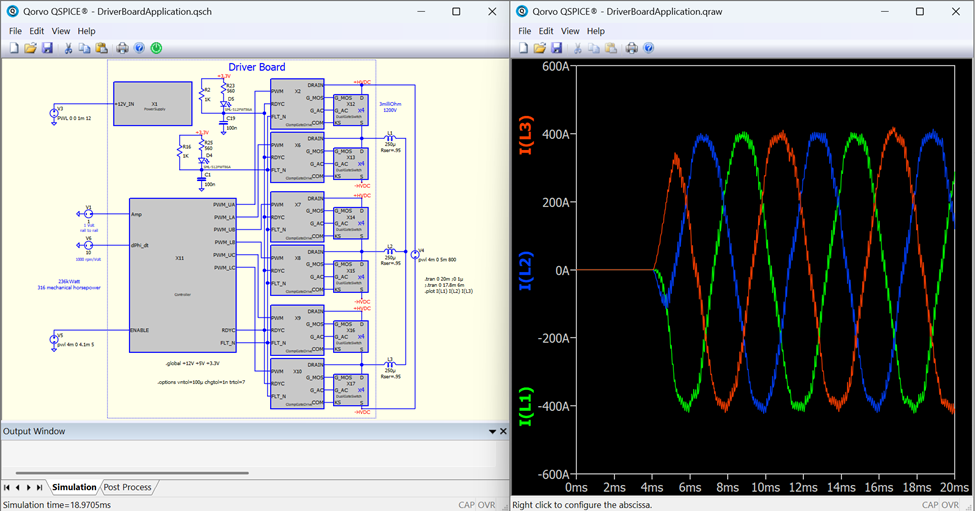

This schematic capture is one by our own Mike Engelhardt and is the top-level schematic in an inverter application he created. You’ll need to download all the files, but run DriverBoardApplication.qsch. The first time you run this, QSPICE might offer to build pwlcontroller.dll for you if you couldn’t download this file (many corporate IT systems block .dll downloads). Please send any submissions to tim.mccune@qorvo.com (Schematic Capture Post #057)

image975×511 163 KB

1ED3491MC12M.qsch (46.8 KB)
ClampGateDrive.qsch (24.7 KB)
Controller.qsch (8.2 KB)
DriverBoardApplication.qsch (24.5 KB)
DualGateSwitch.qsch (8.0 KB)
NCP161ASN330T1G.qsch (6.8 KB)
PowerSupply.qsch (15.3 KB)
pwlcontroller.cpp (4.2 KB)
pwlcontroller.dll (20.0 KB)
R12P21503D.qsch (5.0 KB)
R-78E5.0-1.0.qsch (11.5 KB)
ReadMe.txt (266 Bytes)

1 Like
2

Yes, corporate IT blocks one of the strongest aspects of Qspice.
The endpoint security team may send an email questioning why a .dll appeared after compiling .cpp into a .dll using Qspice.
