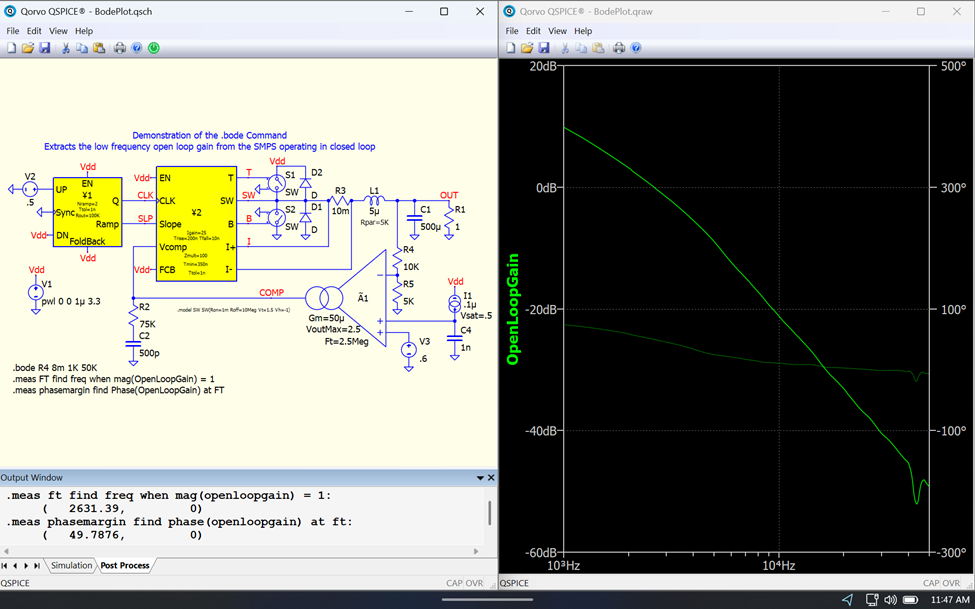

This schematic capture is one by our own Mike Engelhardt. “Extracts the low frequency open loop gain from the SMPS operating in closed loop.” This schematic capture is in the QSPICE release under File=>Open Demo…=>BodePlot. Please send any submissions to tim.mccune@qorvo.com (Schematic Capture Post #068)
