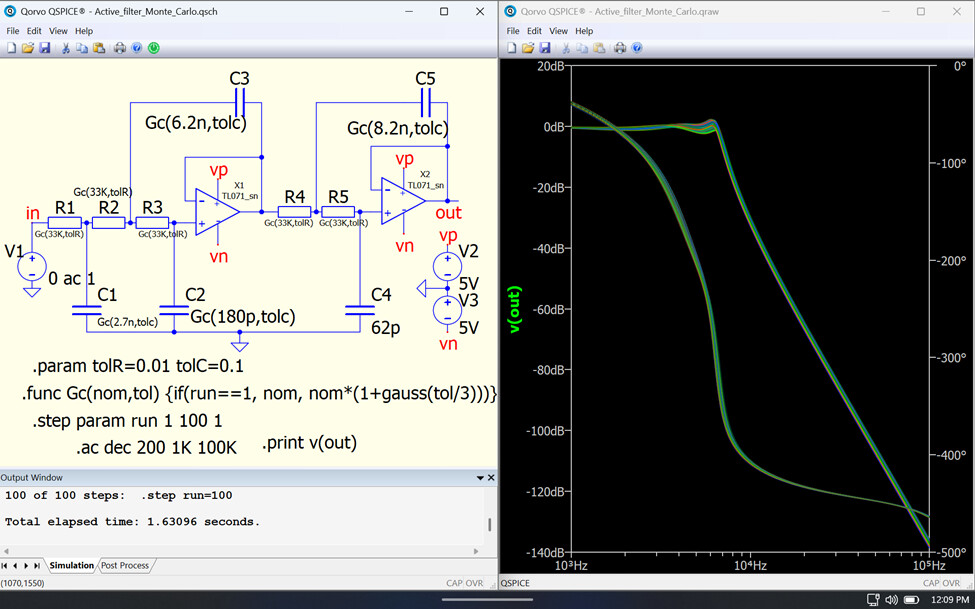

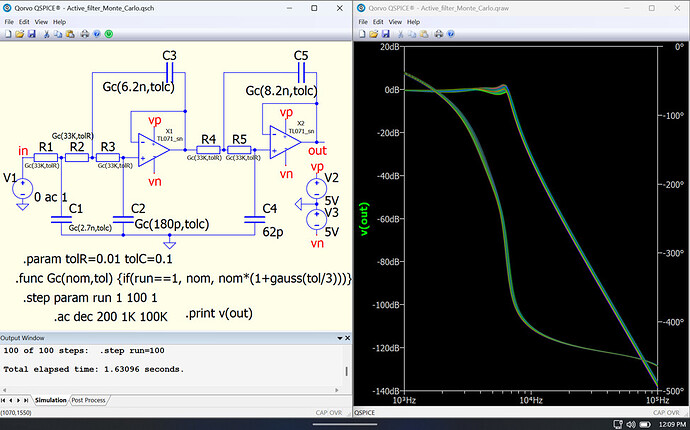

For this week’s QSPICE schematic capture, we have “Active Filter Monte Carlo” by our friend and frequent circuit simulation contributor Alexander Bordodynov. “I performed the analysis with a more accurate and therefore more complex operational amplifier model.” Please send any submissions to tim.mccune@qorvo.com (Schematic Capture Post #070)
Active_filter_Monte_Carlo.qsch (14.5 KB)
