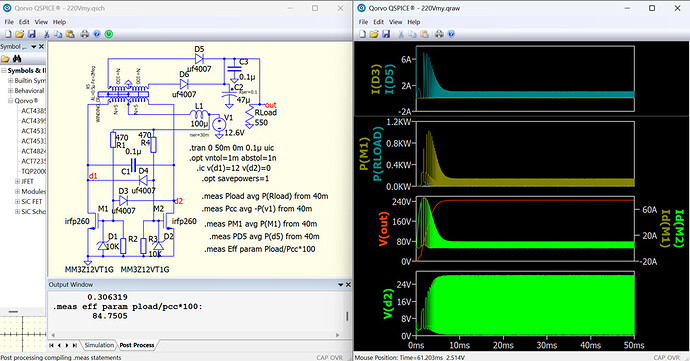

For this week’s QSPICE schematic capture, we have “220Vmy” by our friend Alexander Bordodynov. “As a training example, I drew a simple voltage converter. A linear transformer model is demonstrated. The number of turns, the resistance of the windings and the inductance per turn AL are set.” (Schematic Capture Post #058) Please send any submissions to tim.mccune@qorvo.com.
220Vmy.qsch (21.1 KB)
