Qspice mosfet model generator issue

Kira7 · September 9, 2025, 9:33am

Hi,

I have tried using the Qspice mosfet model generator to model infineon’s IPP069N20NM6 mosfet. (datasheet can be found here: Datasheet IPP069N20NM6)

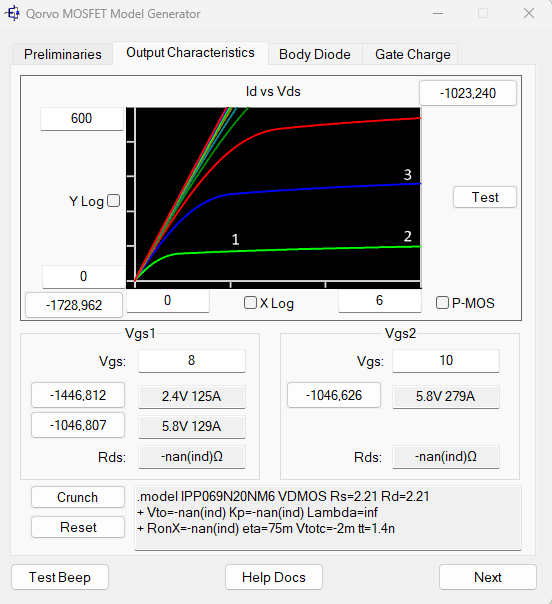

I am getting an error when I click crunch on the output characteristics. The calculated Rds shows up as -nan(ind)Ω (can be seen in the figure below)

Thank you

KSKelvin · September 9, 2025, 10:07am

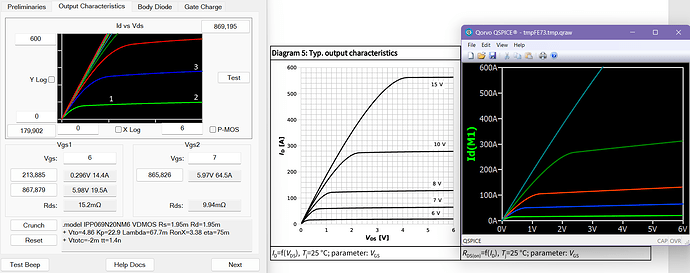

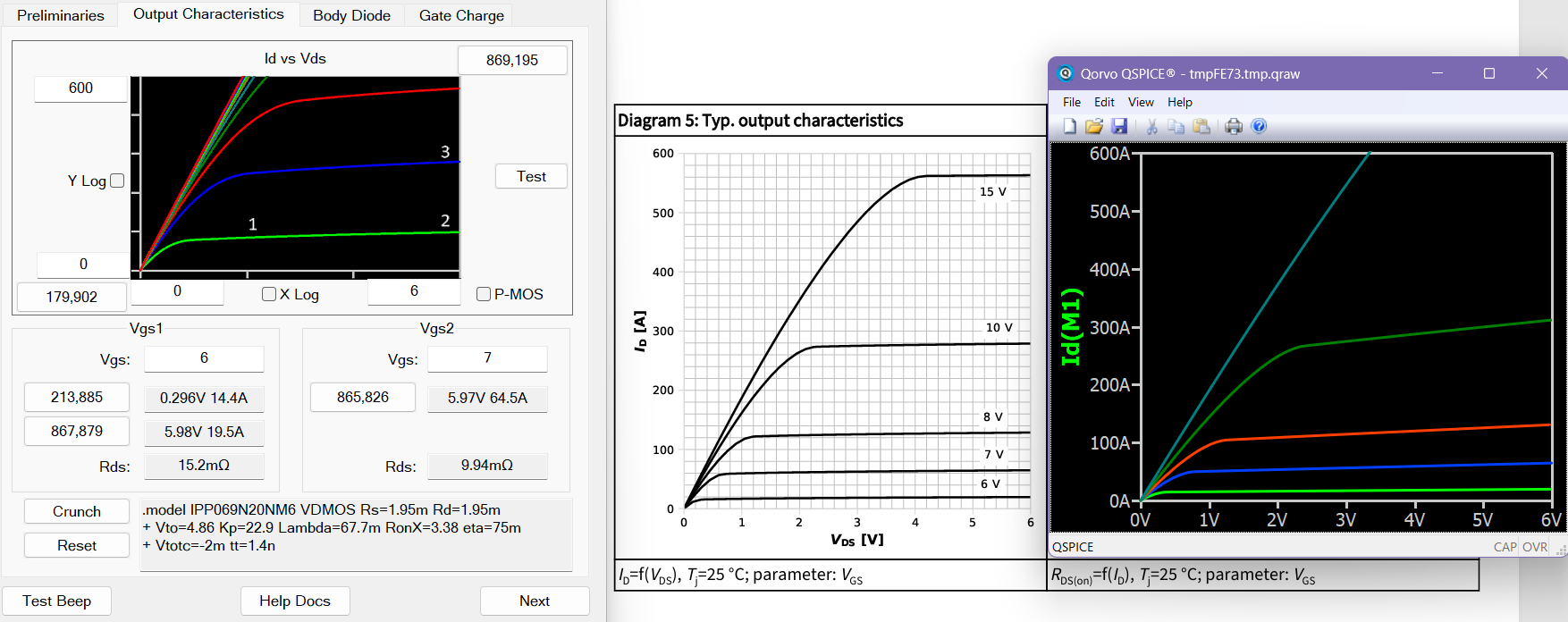

Your Rs and Rd are 2.21 ohms, I guess you put ~5ohms in Rds(on) instead of 5m ohms.

Kira7 · September 9, 2025, 10:11am

That worked for me, thank you.
I put 5.9 instead of 5.9m in the preliminaries for Rds(on)
