Hi I just downloaded the latest version of QSPICE: 07/03/2025 build
I am trying to create a model using the MOSFET Model Generator for DMP3099L PMOS.

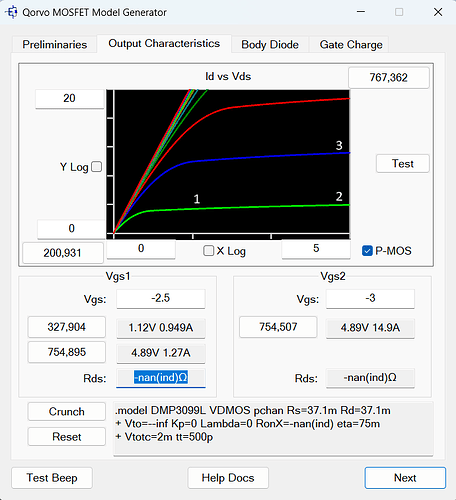

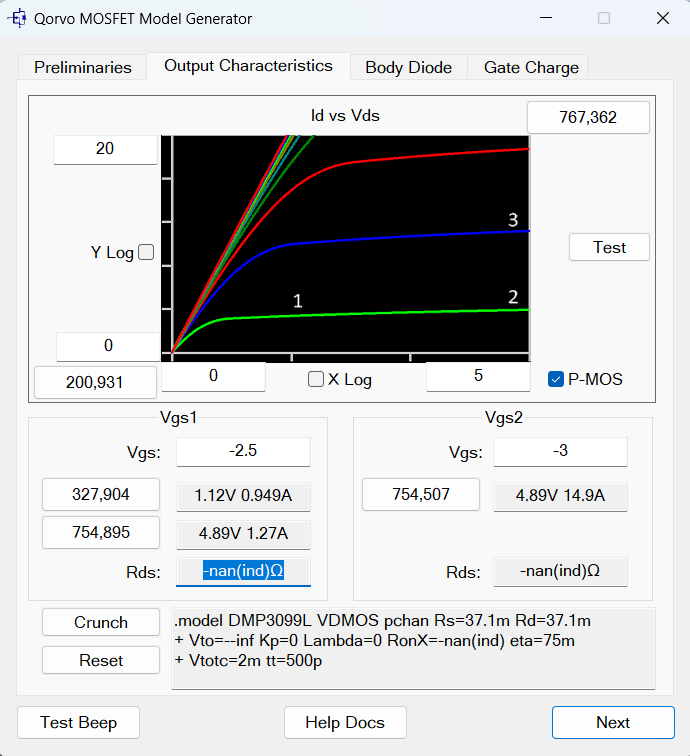

I am trying to characterise the Id vs Vds curve. After clicking on each point correctly on the datasheet plot. I keep getting -nan(ind)Ω for Rds:
Can anyone tell me how do I compute this correctly?

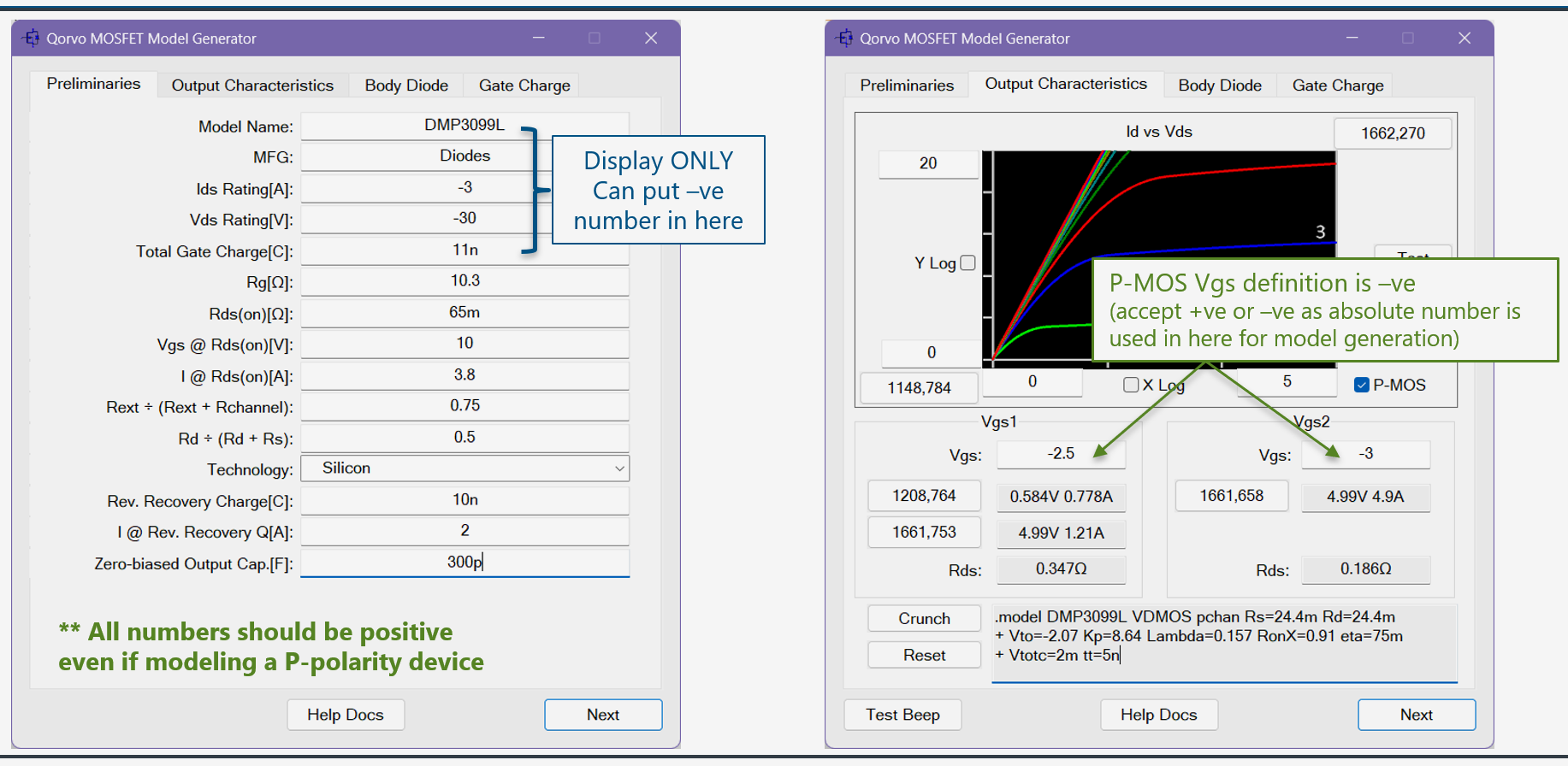

Refer to Help of Model Generator : All numbers should be positive even if modeling a P-polarity device. But if update Qspice to latest version
07/04/2025 Corrected a problem synthesizing a P MOSFET with the Model Generation Tool.
This update correct that Vgs1 and Vgs2 to accept negative number.
Here is the information I filled (well… I cannot find Rev. Recovery Charge and Current from datasheet)

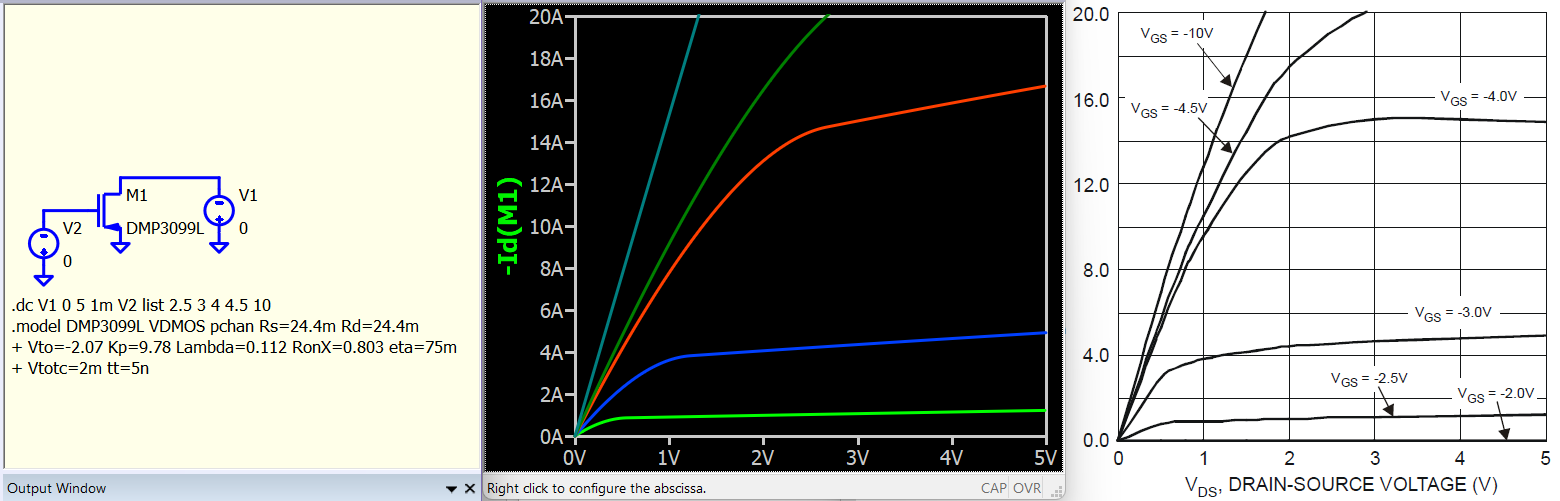

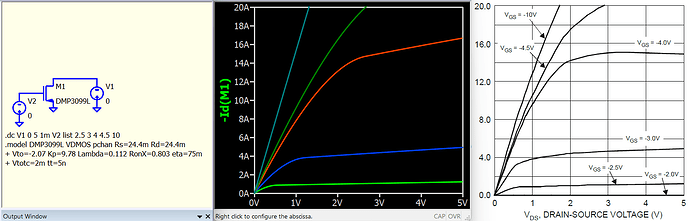

This is output characteristic I get by digitized the datasheet as your reference.
