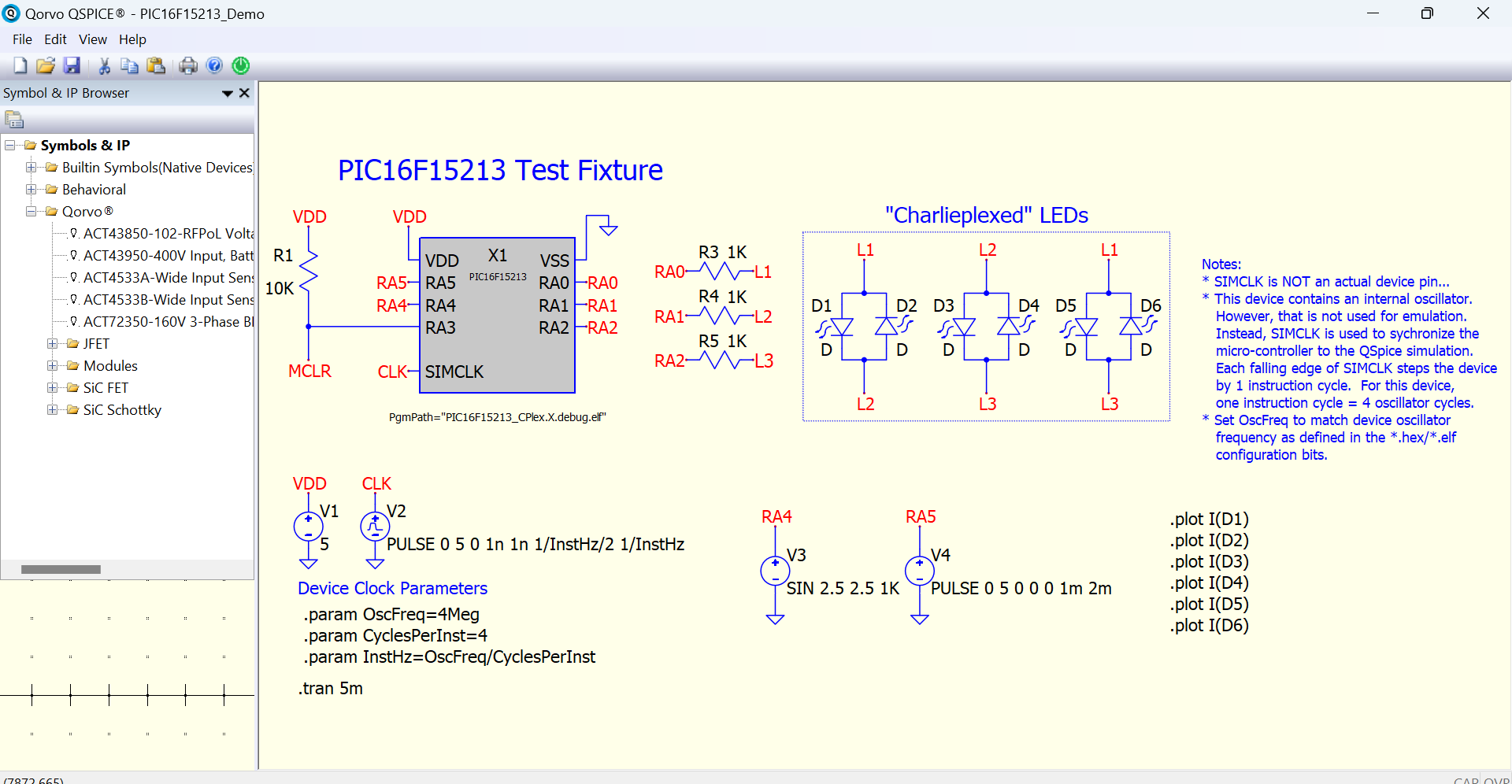

For this week’s QSPICE schematic capture, we have something a little unusual. Our friend Robert Dunn has implemented a simulation of a small 8-pin PIC16F15213 chip, a “framework” that makes it possible to implement arbitrary Microchip micro-controllers and run a QSpice simulation with the uC device running arbitrary code. You can find his work on this here. Contact Robert with any questions at @RDunn. Please send any submissions to me at tim.mccune@qorvo.com (Schematic Capture Post #0019).
