QSPICE Forum Schematic Capture “Motor1”

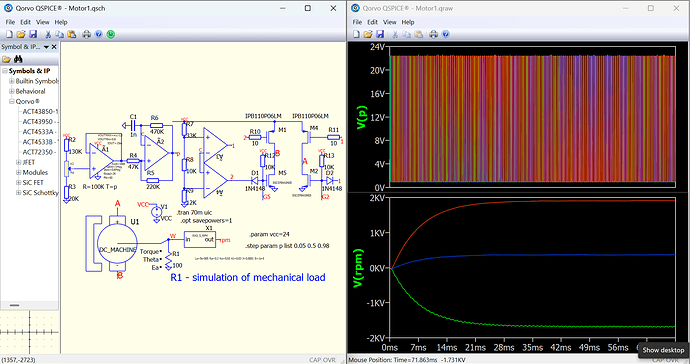

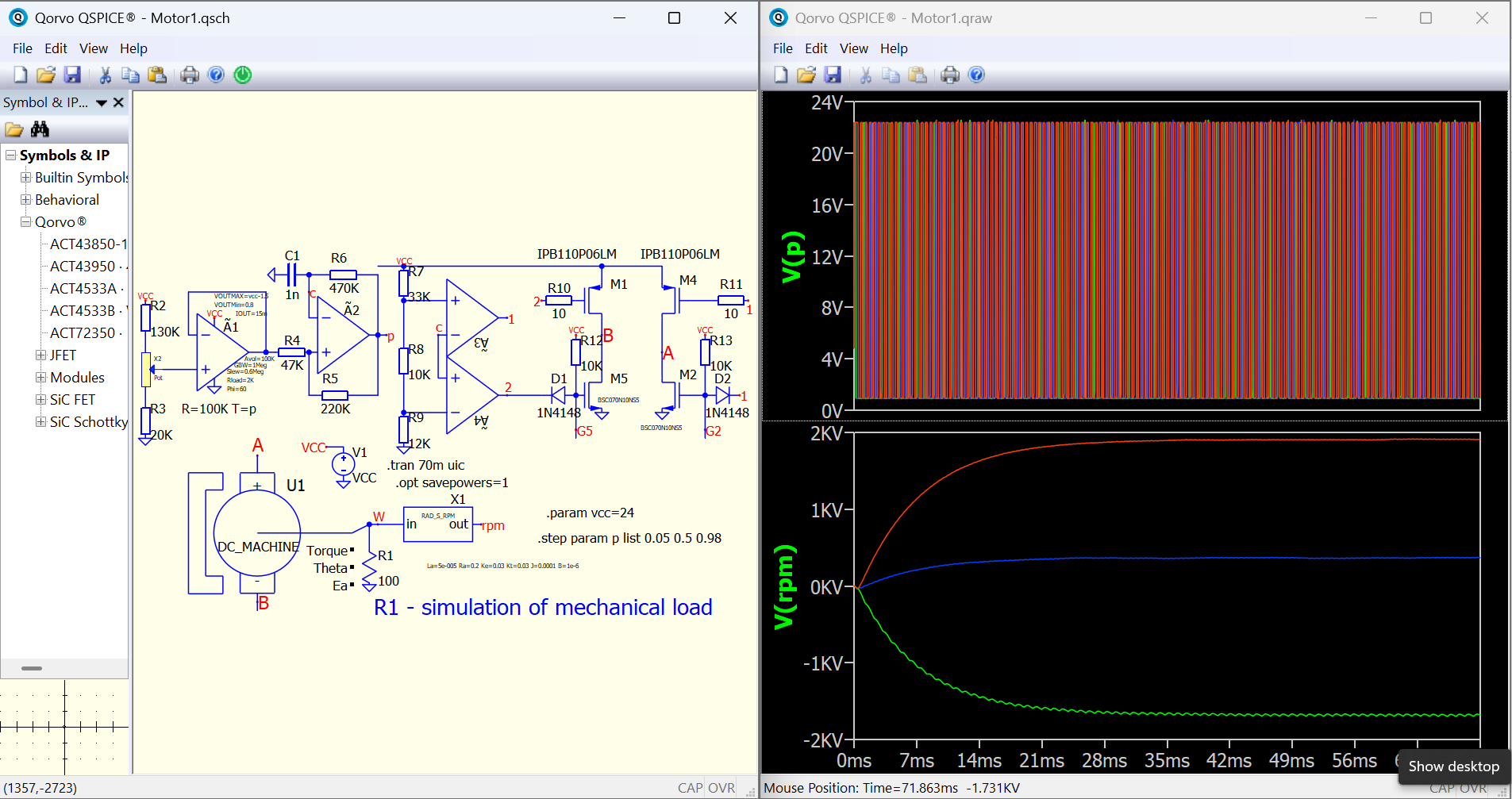

For this week’s QSPICE schematic capture, we have “Motor1” by our friend Alexander Bordodynov. “Smooth adjustment of the speed and direction of rotation of the DC motor with one potentiometer.” Please send any schematic capture submissions to me at tim.mccune@qorvo.com (Schematic Capture Post #039)


dcmotorMS.txt (772 Bytes)
Motor1.pfg (294 Bytes)
Motor1.qsch (25.3 KB)
