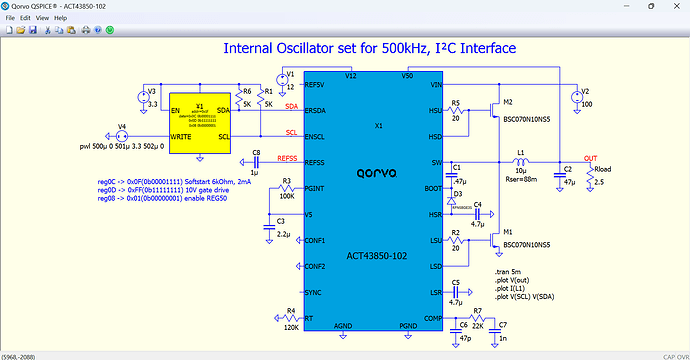

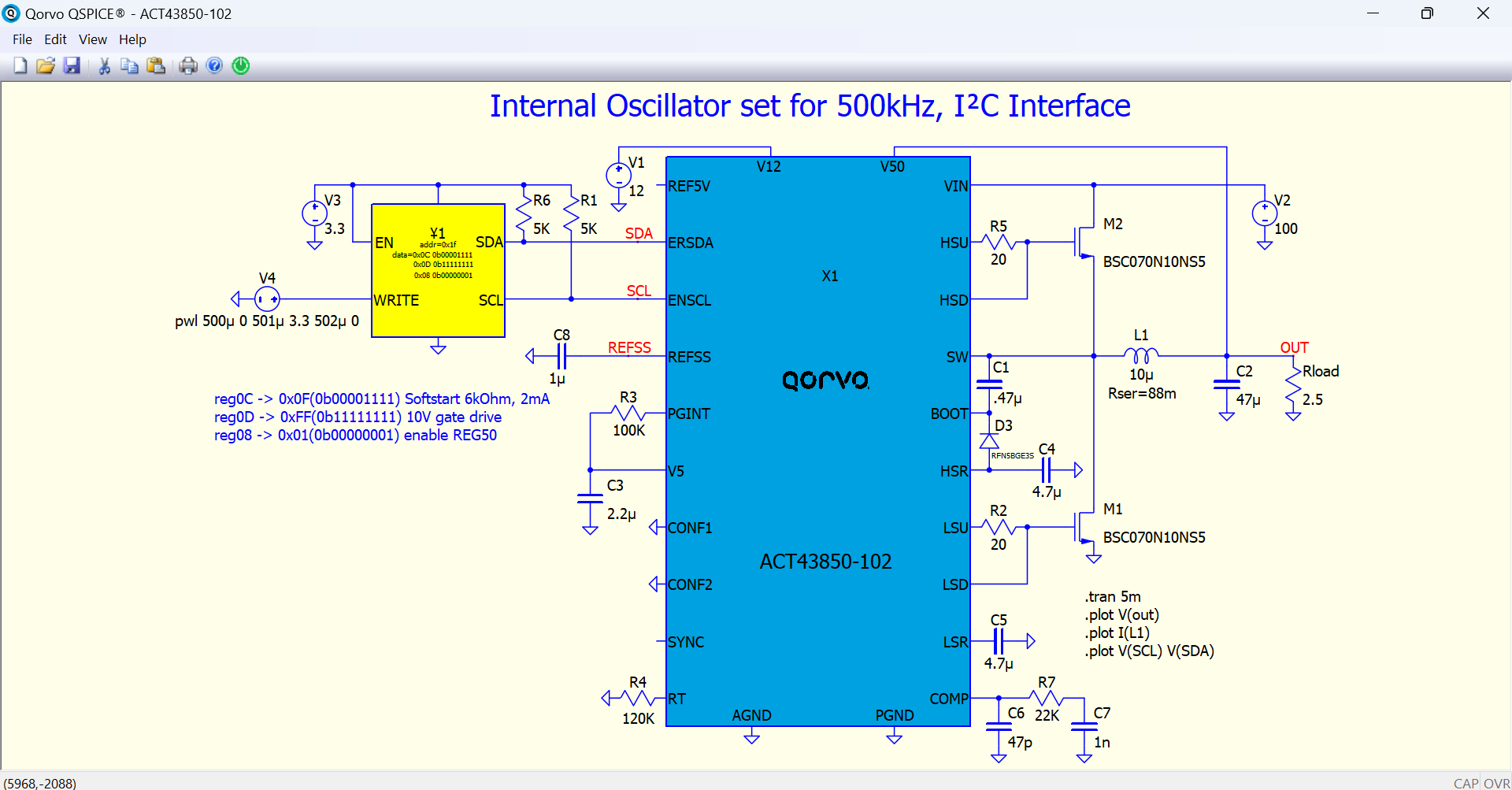

For this week’s QSPICE schematic capture, we have a circuit using Mike’s new model of a relatively complicated part, the ACT43850, “Internal Oscillator set for 500kHz, I²C Interface.” The ACT43850 is a 20 to 55 V / 20 A Output, Compact, Fast Response, Step Down RFPoL (Point of Load) Voltage Regulator. Please send any submissions to me at tim.mccune@qorvo.com (Schematic Capture Post #0017).
ACT43850-102.qsch (21.2 KB)
