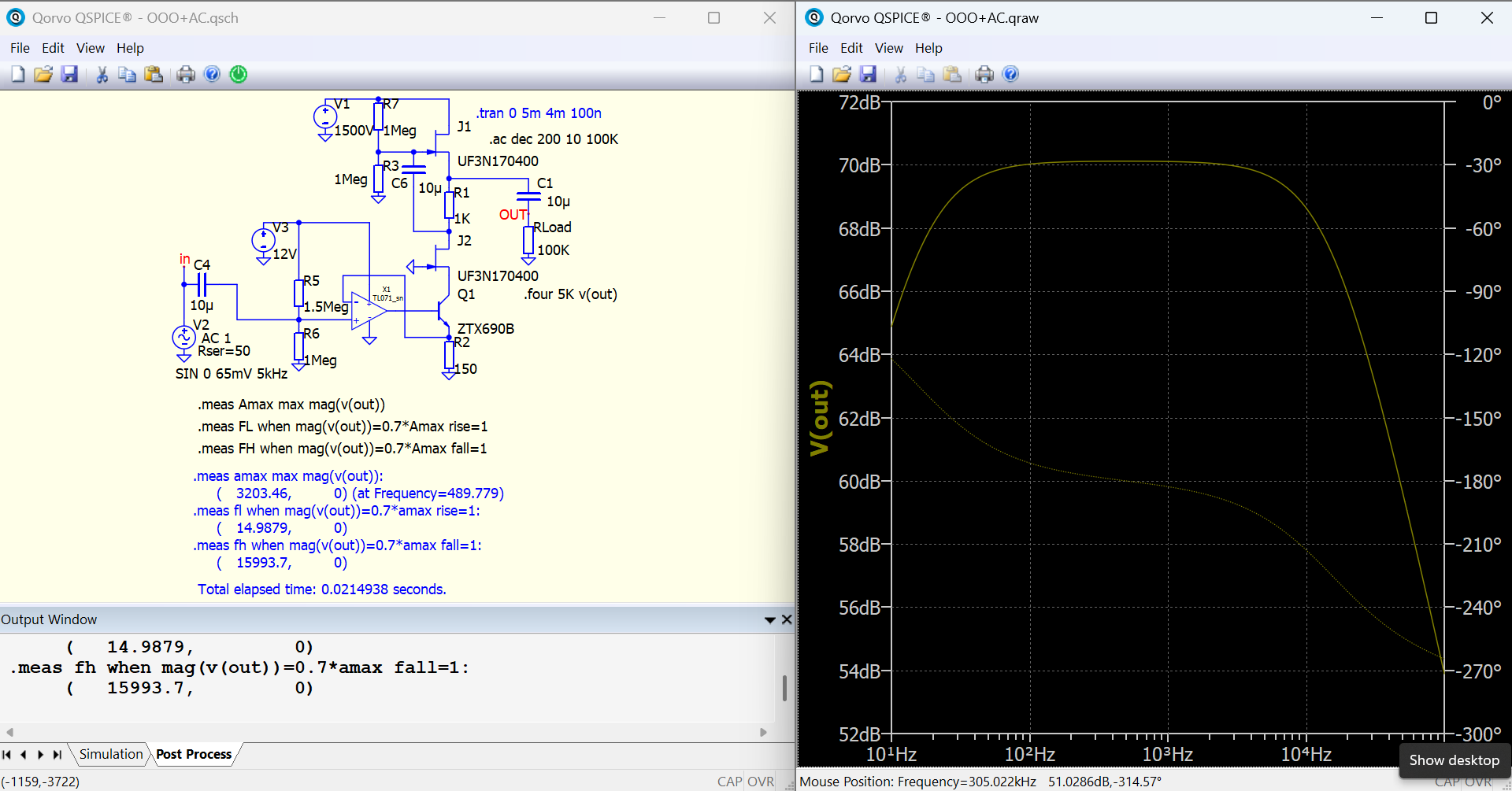

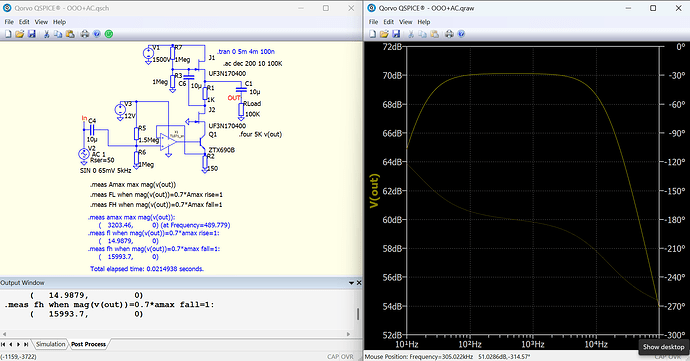

For this week’s QSPICE schematic capture, we’ve got a high-voltage amp circuit by our friend Alexander Bordodynov. “I had fun and made up a circuit for a high-voltage amplifier. I think this is a good example for beginners to master QSPICE.” (Schematic Capture Post #028) Please send any schematic capture submissions to me at tim.mccune@qorvo.com QSPICE #Qorvo
OOO+.fft.pfg (168 Bytes)
OOO+.pfg (168 Bytes)
OOO+.qsch (15.4 KB)
OOO+AC.pfg (200 Bytes)
OOO+AC.qsch (15.3 KB)
