QSPICE Forum Schematic Capture "Dimmer"

[mccunets]

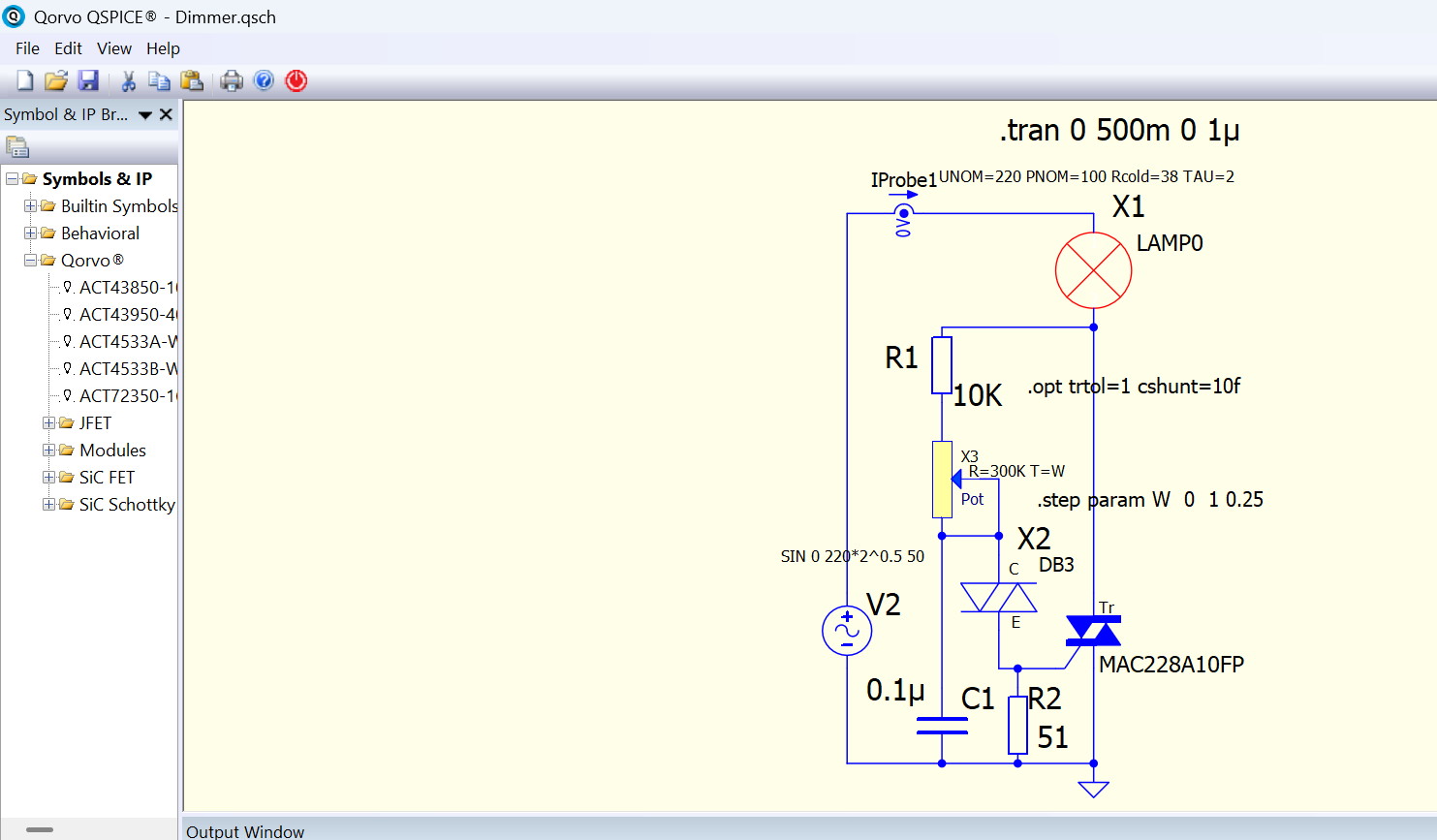

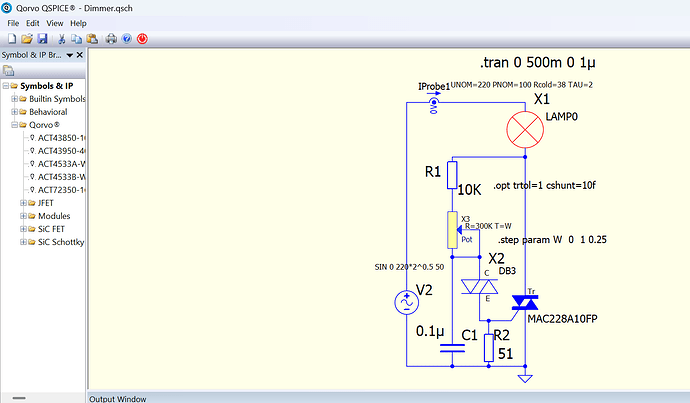

For this week’s QSPICE schematic capture, we’ve got a dimmer circuit by our friend Alexander Bordodynov. Please send any schematic capture submissions to me at tim.mccune@qorvo.com (Schematic Capture Post #024)

Dimmer.qsch (9.6 KB)

[recentes]

This is really helpful for learning about thyristors. Do you happen to have a link to the TRIAC model as well?
