QSPICE Forum Schematic Capture "An Analog Frequency Divider "

[mccunets]

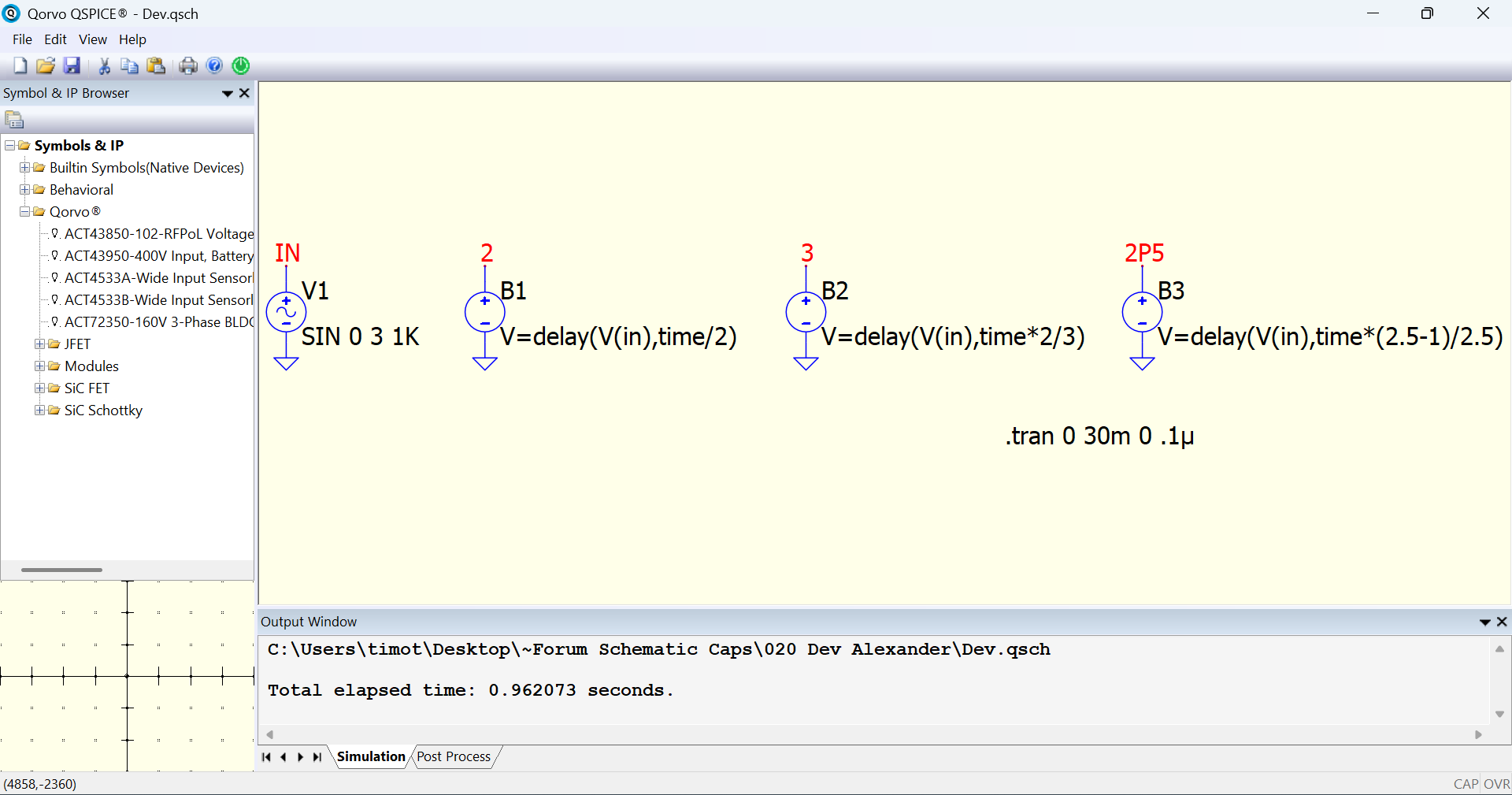

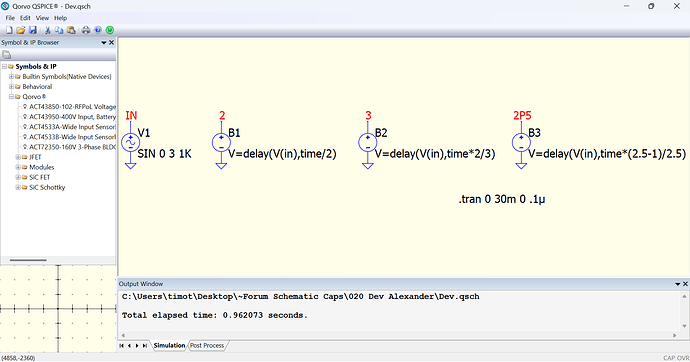

For this week’s QSPICE schematic capture, we’ve got an analog frequency divider, “in fact, this is a time stretching of an arbitrary signal,” by our friend Alexander Bordodynov. Please send any schematic capture submissions to me at tim.mccune@qorvo.com (Schematic Capture Post #020)
Dev.qsch (3.5 KB)

[KSKelvin]

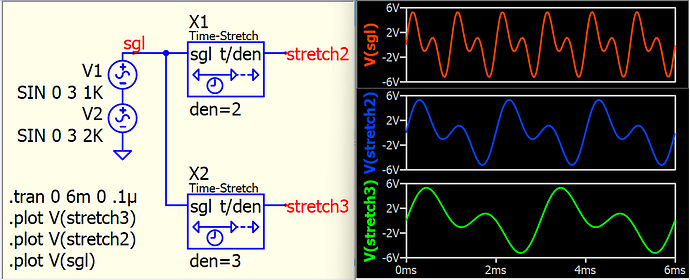

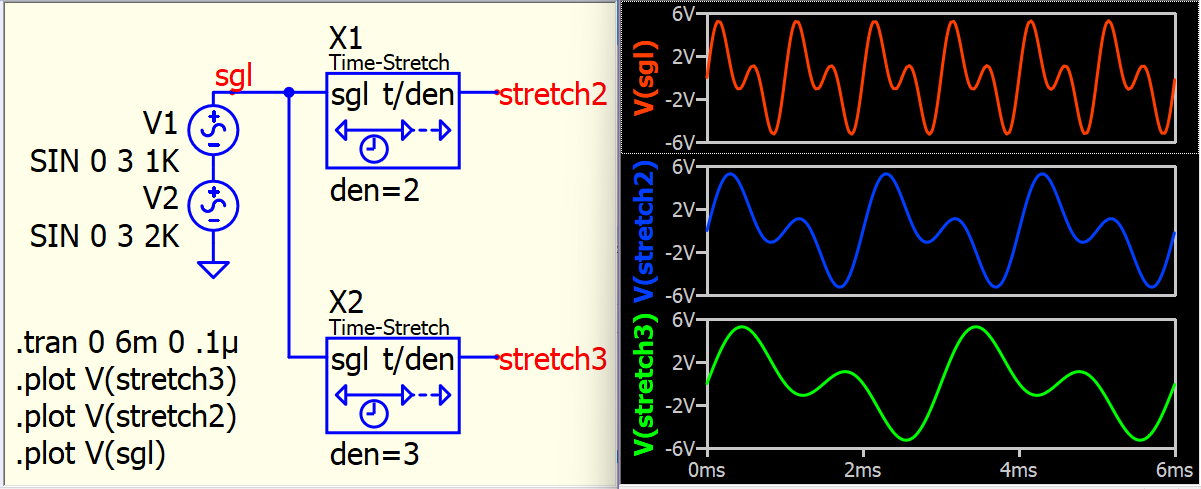

Let’s build an embedded subckt symbol for this circuit idea.

Time-Stretch.qsym (1017 Bytes)

[mccunets]

Very cool, a nice addition
