QSPICE Forum Schematic Capture "Active Floating Capacitor Cell Balancer"

[mccunets]

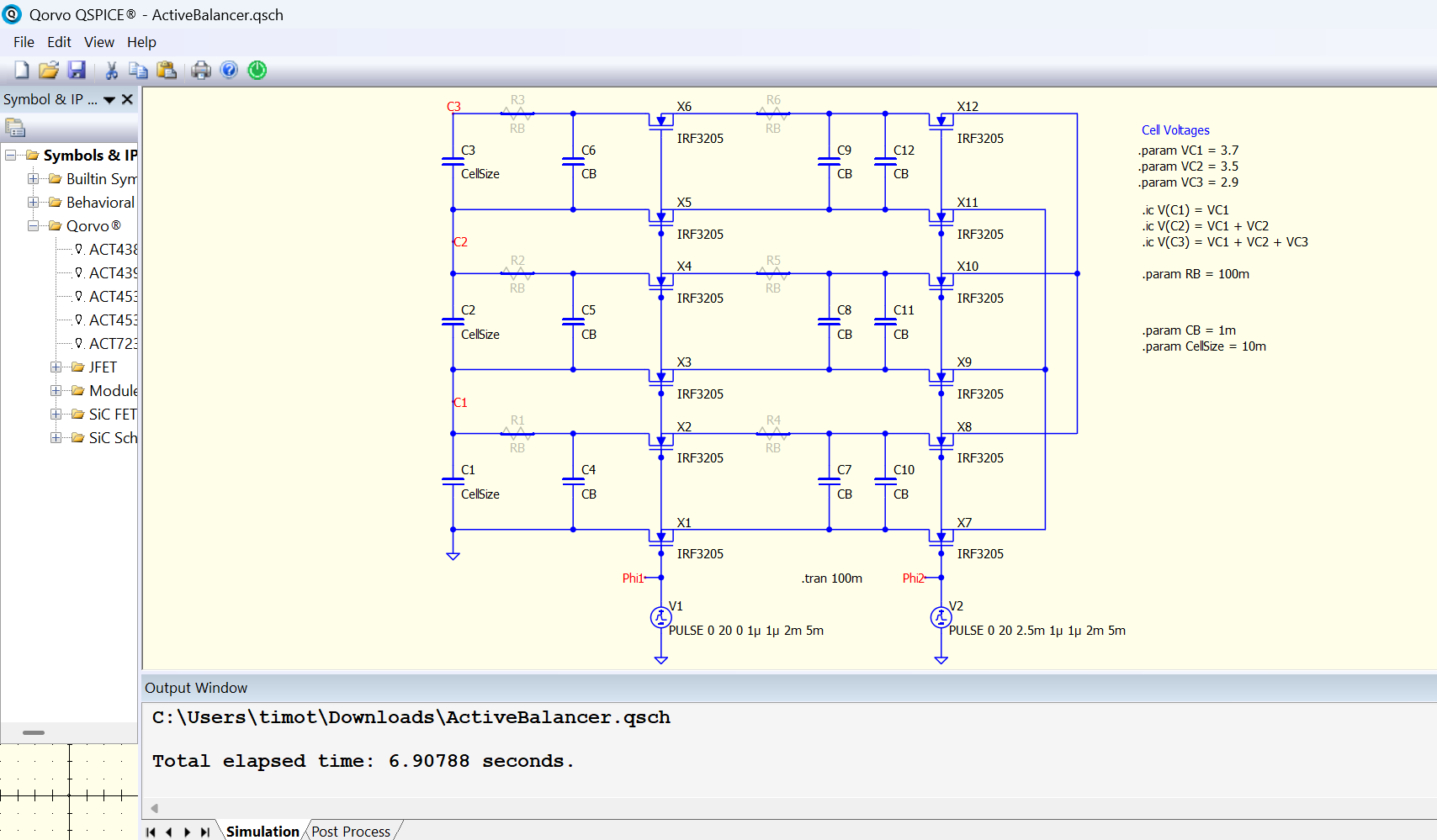

For this week’s QSPICE schematic capture, we have a circuit simulation built by our friend Morad Tamer, a senior ECE student. He designed and simulated an active cell-balancer using QSPICE. His original post on this is linked in the first comment. (Schematic Capture Post #023) Please send any schematic capture submissions to me at tim.mccune@qorvo.com

ActiveBalancer.qsch (35.5 KB)

[mccunets]

Here’s Morad Tamer’s original post on this circuit: #batterymanagement #bms #activebalancing #qspice #simulation #pcbdesign… | Morad Tamer
