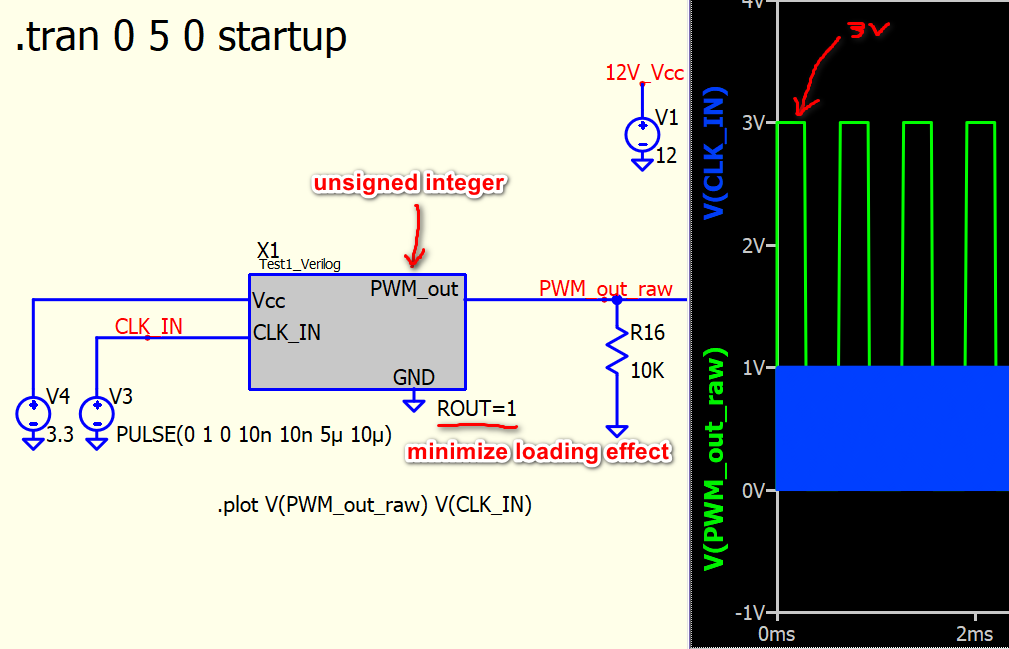

I download your schematic and verilog, and its PWM_out can generate 0V/3V output (as it defined as unsigned integer, it won’t output 3.3V when you set pwm_out = vcc). So, you cannot get 0V/3V output from your uploaded files?
