Announcing QM35 SDK 3.0
Download: QORVO_SDK / Public / DevKits / qm35-sdk · GitLab
Add Ultra-Wideband (UWB) to your products with the QM35825. This fully integrated solution compliant with IEEE 802.15.4™-2024, delivers best-in-class Rx sensitivity and low power consumption.
The SDK includes production-grade firmware, enabling you to start prototyping immediately, cut development time, and reduce integration risk.

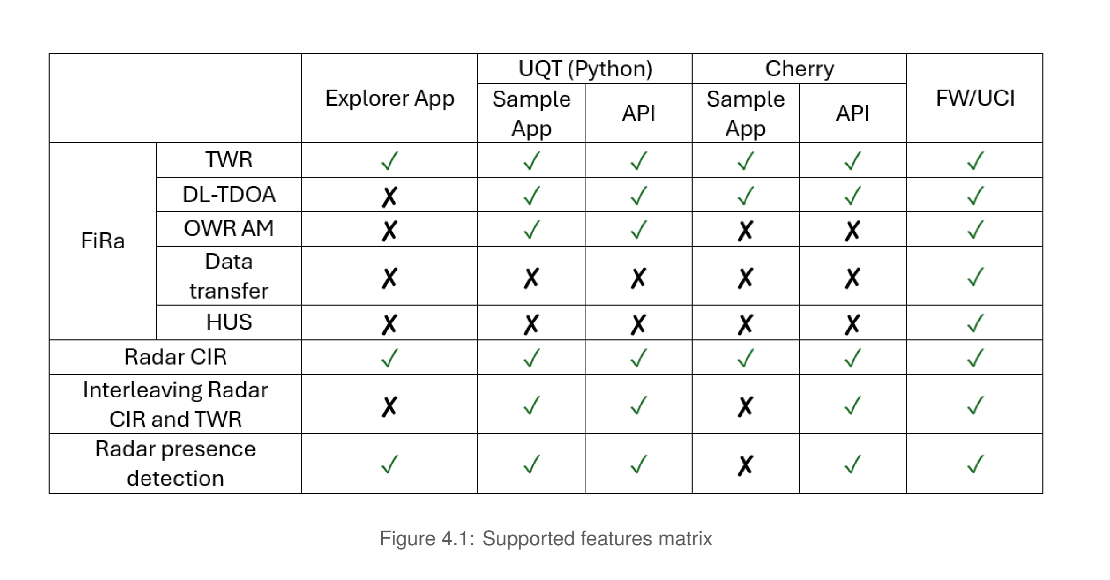

SDK Features:
-
FiRa 3.0 Ranging, 360° Angle of Arrival, UWB Radar + presence detection, concurrent operation support.
-
Accelerated development :
- Evaluate UWB features quickly and interactively with the GUI UWB Explorer App.
- C API (“Cherry”). Structured control over ranging and radar.
- Python example application (“UQT”). Automate evaluation, calibration, and manufacturing tests.
-
Cross-platform flexibility :
- Linux® Kernel Module. Easy integration with embedded Linux®.
- Zephyr® OS Example. Accelerate development on constrained platforms.
-
Future-ready:
- Designed for FiRa 3.0 compliance and beyond.
QM35825 SDK is the definitive development platform for UWB ranging, Radar sensing in Linux® environments and embedded systems, enabling accurate, secure & low-power UWB applications.
Evaluation kits, including the QM35825-DK05 will shortly be available through official distribution channel.
