Model generator failed to create a model for IXTN500N20X4 mosfet

QSPICE
1

Hello,
i am new to Qspice (amazing tool!).
I have generated a model for the mosfet IXTN500N20X4 from littlefuse and it generated the following model:

.model IXTN500N20X4 VDMOS Rs=746µ Rd=746µ Rg=0.85 Vto=-61.3

  • Kp=630µ lambda=90.6 RonX=44.8K eta=75m Vtotc=-2m Is=259µ
  • N=2.31852 Rb=649µ Eg=1.11 XTI=3 Cgs=37.5n Cgdmin=253p
  • Cgdmax=14.9n Cjo=55.1n tt=14n Tnom=25 mfg=“IXYS” Vds=200
  • Ids=500 Ron=1.99m Qg=535n

when i use the generated model it doesnt work.
can some please tell me what am i doing wrong.

Thanks
arie harush

2

This is the model file I generated with model generator.
It seems you mess up in output characteristic.

IXTN500N20X4.txt (290 Bytes)

image1887×516 100 KB

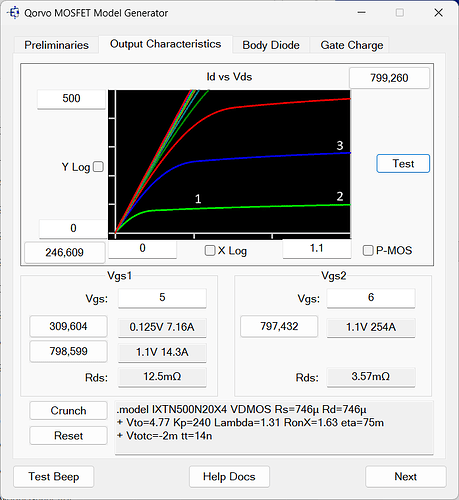

Here is a screen capture of Preliminaries and Output Characteristics

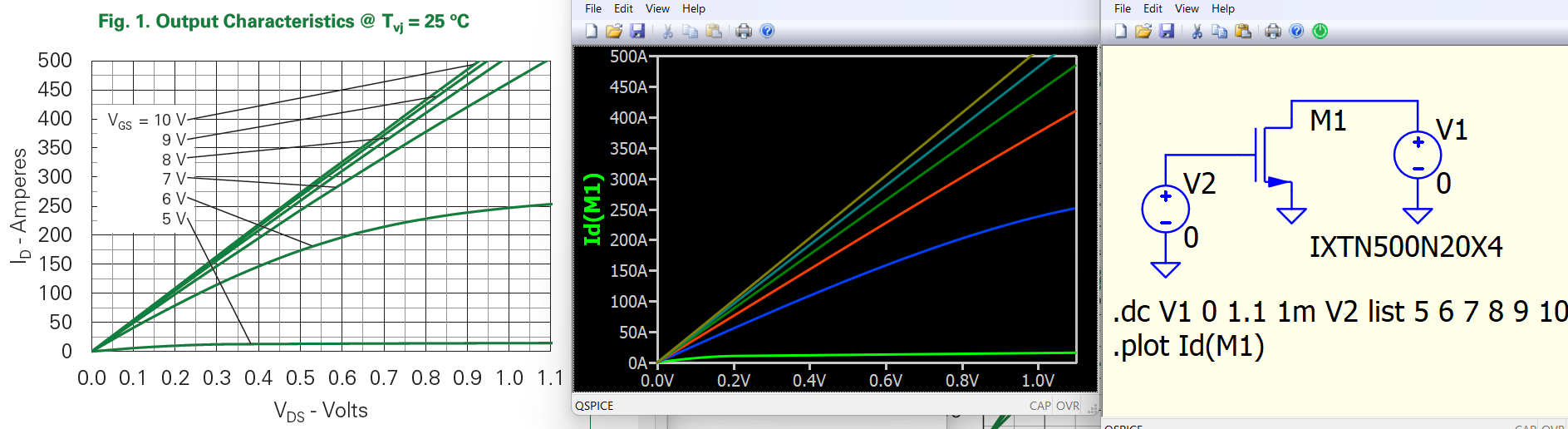

2025-10-14_082620
2025-10-14_082620697×759 25.3 KB

image697×759 33.7 KB

Suggestion : after Crunch in each Tab, Run the Test to confirm if result is reasonable.

3

It works and its great.
Thank you very much!
