Issue with spice model ADG1419.cir inside a hierarchical schematic

I was able to take an opamp model (TL062) and create a custom symbol inside a hierarchical shematic. However when i attemped to do the ADG1492.cir file it seems to work only when i place it on the top level as shown but it seems to give a bunch of warnings and a fatal error when i copy and paste that same block use inside a hierchical schematic. Here are the warnings and fatal error. There must be something about this model file that it doesnt like.

This is the list of warnings and fatal error i get:

Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((V(N11•X2)<=-0.5 & V(N11•X2)>=-16.5) &(V(N12•X2)<=16.5 & V(N12•X2)>=4.5), 5 , 0.01)” of device ECH119•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((V(N11•X2)>=-0.5 &(V(N12•X2)<=13.2 & V(N12•X2)>=10.8)), 5 , 0.01)” of device ECH1110•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((ABS•X3•X2(V(N13•X2)))>(ABS•X3•X2(V(11G•X3•X2))),V(N13•X2),V(N14•X2))” of device ECH111•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(111A•X3•X2)<-13.8,5,0)” of device ECH112•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(111A•X3•X2)<-13.8,1.11111111111112E-02*(V(111A•X3•X2)–13.8)+2.33,0)” of device ECH113•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((V(111A•X3•X2)>=-13.8) &(V(111A•X3•X2)<=14),5,0)” of device ECH114•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((V(111A•X3•X2)>=-13.8) &(V(111A•X3•X2)<=14),((2.33-1.5)/((-13.8–0.476959185286039)(-13.8–0.476959185286039)))(V(111A•X3•X2)–0.476959185286039)(V(111A•X3•X2)–0.476959185286039) + 1.5,0)" of device ECH115•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(111A•X3•X2)>14,5,0)” of device ECH116•X3•X2.
Warning: Ignoring unknown instance parameter "•X2 IF•X3•X2(V(111A•X3•X2)>14,-1.19999999999999E-02
(V(111A•X3•X2)-14)+2.48,0)” of device ECH117•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(0)<2 & V(187•X3•X2)>=2, 5 , 0.8)” of device ECH118•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((ABS•X3•X2(V(N10•X2)))>(ABS•X3•X2(V(21G•X3•X2))),V(N10•X2),V(N14•X2))” of device ECH211•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(211A•X3•X2)<-13.8,5,0)” of device ECH212•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(211A•X3•X2)<-13.8,1.11111111111112E-02*(V(211A•X3•X2)–13.8)+2.33,0)” of device ECH213•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((V(211A•X3•X2)>=-13.8) &(V(211A•X3•X2)<=14),5,0)” of device ECH214•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2((V(211A•X3•X2)>=-13.8) &(V(211A•X3•X2)<=14),((2.33-1.5)/((-13.8–0.476959185286039)(-13.8–0.476959185286039)))(V(211A•X3•X2)–0.476959185286039)(V(211A•X3•X2)–0.476959185286039) + 1.5,0)" of device ECH215•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(211A•X3•X2)>14,5,0)” of device ECH216•X3•X2.
Warning: Ignoring unknown instance parameter "•X2 IF•X3•X2(V(211A•X3•X2)>14,-1.19999999999999E-02
(V(211A•X3•X2)-14)+2.48,0)” of device ECH217•X3•X2.
Warning: Ignoring unknown instance parameter “•X2 IF•X3•X2(V(0)>=2 & V(187•X3•X2)>=2, 5 , 0.8)” of device ECH218•X3•X2.
C:\Users\ravim\Documents\QSPICE\Learning_QSPICE\MyExamples\Transient\4_ProjectExample\Top_tb\TopLevel.qsch
Fatal error: ECH218•X3•X2: Gain was not specified.

Here is a copy of the .cir file to see if anyone can replicate and help resolve my issue

  • ADG1419 SPICE Macro-model
  • Generic Desc: 2.1 ohm ON Resistance iCMOS SPDT Switch
  • Developed by: mporley / ADGT
  • Revision History: Rev. 1 (7/2019)
  • Copyright 2019 by Analog Devices, Inc.
  • Refer to License agreement for Spice Models | Analog Devices for License Statement. Use of this model
  • indicates your acceptance of the terms and provisions in the License Statement.
  • Begin Notes:
  • The model will work on Vdd/Vss from 10.8V to 13.2V single supply and +/-4.5V to +/-16.5V dual supply.
  • The model provides parametric specifications at +/-16.5V only and is not variable with Vdd and Vss changes. Please see datasheet page 3.
  • Not Modeled:
  • Parameters modeled include:
  • On Resistance
  • Ton and Toff
  • Break-Before-Make
  • Off Isolation
  • Crosstalk
  • Supply Currents: Iss/Idd
  • Bandwidth
  • Charge Injection
  • Connections
  •  1  = D1

  •  2  = S1

  •  3  = GND

  •  4  = VDD

  •  5  = EN

  •  6  = IN1

  •  7  = VSS

  •  8  = S2


.SUBCKT ADG1419 1 2 3 4 5 6 7 8

.MODEL VON VSWITCH(Von=5 Voff=0.8 Ron=0.001 Roff=1000000000000)
.MODEL VEN VSWITCH(Von=5 Voff=0.8 Ron=380000 Roff=385000)
.MODEL VNE VSWITCH(Von=5 Voff=0.8 Ron=380000 Roff=385000)
.MODEL VRESET VSWITCH(Von=5 Voff=0.8 Ron=2700000 Roff=1000)
.MODEL DCLAMP D(IS=1E-15 IBV=1E-13)

  • EN
    S30 5 187 5 3 VRESET
    C80 187 3 5.5e-011

  • CROSSTALK
    C12x 2 8 1e-012

  • IDD/ISS
    I1 4 3 0.002e-006
    I2 7 3 0.002e-006

  • Configuration: SPDT 2:1

  • ESD PROTECTION DIODES DRAIN
    D11 7 1 DCLAMP
    D12 1 4 DCLAMP
    C15 1 3 1e-012

  • VOLTAGE SUPPLY REQUIREMENT
    S116 11h 1 11k 3 VON
    S117 11l 11k 11l 3 VON
    Ech119 11l 3 VALUE = { IF((V(7)<=-0.5 & V(7)>=-16.5) & (V(4)<=16.5 & V(4)>=4.5), 5 , 0.01 ) }
    S118 11m 11k 11m 3 VON
    Ech1110 11m 3 VALUE = { IF((V(7)>=-0.5 & (V(4)<=13.2 & V(4)>=10.8)), 5 , 0.01 ) }

** SWITCH 1 D1 **
*

  • ESD PROTECTION DIODES SOURCE
    D113 7 2 DCLAMP
    D114 2 4 DCLAMP
  • OFF ISOLATION
    C111 2 1 1e-012
  • CHARGE INJECTION
    C112 1 11n 1e-011
    C113 2 11n 1e-011
  • CD/CS OFF AND BANDWIDTH
    C114 2 3 1e-012
  • ON RESISTANCE
    Ech111 111a 3 VALUE = { IF ((ABS(V(2)))>(ABS(V(11g))),V(2),V(1)) }
    R111 111a 3 1G
    R112 a11 11h 0.001
    Ech112 111b 3 VALUE = { IF (V(111a)<-13.8,5,0) }
    S111 11sa1 11sb1 111b 3 VON
    Ech113 11sb1 3 VALUE = { IF (V(111a)<-13.8,1.11111111111112E-02*(V(111a)–13.8)+2.33,0) }
    Ech114 111c 3 VALUE = { IF ((V(111a)>=-13.8) & (V(111a)<=14),5,0) }
    S112 11sa1 11sb2 111c 3 VON
    Ech115 11sb2 3 VALUE = { IF ((V(111a)>=-13.8) & (V(111a)<=14),((2.33-1.5)/((-13.8–0.476959185286039)(-13.8–0.476959185286039)))(V(111a)–0.476959185286039)(V(111a)–0.476959185286039) + 1.5,0) }
    Ech116 111d 3 VALUE = { IF (V(111a)>14,5,0) }
    S113 11sa1 11sb3 111d 3 VON
    Ech117 11sb3 3 VALUE = { IF (V(111a)>14,-1.19999999999999E-02
    (V(111a)-14)+2.48,0) }
    RIN113 11sa1 3 1G
    EOUT11 a11 11e POLY(2) (11sa1,3) (11f,3) 0 0 0 0 0.999/1000
    FCOPY11 3 11f VSENSE11 1
    RSENSOR11 11f 3 1K
    VSENSE11 11e 11g 0
  • TON/ TOFF/ BBM
    S114 2 11g 11n 3 VON
    S115 11i 11j 11i 3 VEN
    Ech118 11i 3 VALUE = { IF(V(6)<2 & V(187)>=2, 5 , 0.8 ) }
    eV11 11n 3 11j 3 1
    C116 11j 3 1e-012

** SWITCH 2 D1 **
*

  • ESD PROTECTION DIODES SOURCE
    D213 7 8 DCLAMP
    D214 8 4 DCLAMP
  • OFF ISOLATION
    C211 8 1 1e-012
  • CHARGE INJECTION
    C212 1 21n 1e-011
    C213 8 21n 1e-011
  • CD/CS OFF AND BANDWIDTH
    C214 8 3 1e-012
  • ON RESISTANCE
    Ech211 211a 3 VALUE = { IF ((ABS(V(8)))>(ABS(V(21g))),V(8),V(1)) }
    R211 211a 3 1G
    R212 a21 11h 0.001
    Ech212 211b 3 VALUE = { IF (V(211a)<-13.8,5,0) }
    S211 21sa1 21sb1 211b 3 VON
    Ech213 21sb1 3 VALUE = { IF (V(211a)<-13.8,1.11111111111112E-02*(V(211a)–13.8)+2.33,0) }
    Ech214 211c 3 VALUE = { IF ((V(211a)>=-13.8) & (V(211a)<=14),5,0) }
    S212 21sa1 21sb2 211c 3 VON
    Ech215 21sb2 3 VALUE = { IF ((V(211a)>=-13.8) & (V(211a)<=14),((2.33-1.5)/((-13.8–0.476959185286039)(-13.8–0.476959185286039)))(V(211a)–0.476959185286039)(V(211a)–0.476959185286039) + 1.5,0) }
    Ech216 211d 3 VALUE = { IF (V(211a)>14,5,0) }
    S213 21sa1 21sb3 211d 3 VON
    Ech217 21sb3 3 VALUE = { IF (V(211a)>14,-1.19999999999999E-02
    (V(211a)-14)+2.48,0) }
    RIN213 21sa1 3 1G
    EOUT21 a21 21e POLY(2) (21sa1,3) (21f,3) 0 0 0 0 0.999/1000
    FCOPY21 3 21f VSENSE21 1
    RSENSOR21 21f 3 1K
    VSENSE21 21e 21g 0
  • TON/ TOFF/ BBM
    S214 8 21g 21n 3 VON
    S215 21i 21j 21i 3 VNE
    Ech218 21i 3 VALUE = { IF(V(6)>=2 & V(187)>=2, 5 , 0.8 ) }
    eV21 21n 3 21j 3 1
    C216 21j 3 1e-012

.ENDS ADG1419

Looks like all the * became bullets. Here is the correct copy/paste

  • ADG1419 SPICE Macro-model
  • Generic Desc: 2.1 ohm ON Resistance iCMOS SPDT Switch
  • Developed by: mporley / ADGT
  • Revision History: Rev. 1 (7/2019)
  • Copyright 2019 by Analog Devices, Inc.
  • Refer to License agreement for Spice Models | Analog Devices for License Statement. Use of this model
  • indicates your acceptance of the terms and provisions in the License Statement.
  • Begin Notes:
  • The model will work on Vdd/Vss from 10.8V to 13.2V single supply and +/-4.5V to +/-16.5V dual supply.
  • The model provides parametric specifications at +/-16.5V only and is not variable with Vdd and Vss changes. Please see datasheet page 3.
  • Not Modeled:
  • Parameters modeled include:
  • On Resistance
  • Ton and Toff
  • Break-Before-Make
  • Off Isolation
  • Crosstalk
  • Supply Currents: Iss/Idd
  • Bandwidth
  • Charge Injection
  • Connections
  •  1  = D1

  •  2  = S1

  •  3  = GND

  •  4  = VDD

  •  5  = EN

  •  6  = IN1

  •  7  = VSS

  •  8  = S2


.SUBCKT ADG1419 1 2 3 4 5 6 7 8

.MODEL VON VSWITCH(Von=5 Voff=0.8 Ron=0.001 Roff=1000000000000)
.MODEL VEN VSWITCH(Von=5 Voff=0.8 Ron=380000 Roff=385000)
.MODEL VNE VSWITCH(Von=5 Voff=0.8 Ron=380000 Roff=385000)
.MODEL VRESET VSWITCH(Von=5 Voff=0.8 Ron=2700000 Roff=1000)
.MODEL DCLAMP D(IS=1E-15 IBV=1E-13)

  • EN
    S30 5 187 5 3 VRESET
    C80 187 3 5.5e-011

  • CROSSTALK
    C12x 2 8 1e-012

  • IDD/ISS
    I1 4 3 0.002e-006
    I2 7 3 0.002e-006

  • Configuration: SPDT 2:1

  • ESD PROTECTION DIODES DRAIN
    D11 7 1 DCLAMP
    D12 1 4 DCLAMP
    C15 1 3 1e-012

  • VOLTAGE SUPPLY REQUIREMENT
    S116 11h 1 11k 3 VON
    S117 11l 11k 11l 3 VON
    Ech119 11l 3 VALUE = { IF((V(7)<=-0.5 & V(7)>=-16.5) & (V(4)<=16.5 & V(4)>=4.5), 5 , 0.01 ) }
    S118 11m 11k 11m 3 VON
    Ech1110 11m 3 VALUE = { IF((V(7)>=-0.5 & (V(4)<=13.2 & V(4)>=10.8)), 5 , 0.01 ) }

** SWITCH 1 D1 **
*

  • ESD PROTECTION DIODES SOURCE
    D113 7 2 DCLAMP
    D114 2 4 DCLAMP
  • OFF ISOLATION
    C111 2 1 1e-012
  • CHARGE INJECTION
    C112 1 11n 1e-011
    C113 2 11n 1e-011
  • CD/CS OFF AND BANDWIDTH
    C114 2 3 1e-012
  • ON RESISTANCE
    Ech111 111a 3 VALUE = { IF ((ABS(V(2)))>(ABS(V(11g))),V(2),V(1)) }
    R111 111a 3 1G
    R112 a11 11h 0.001
    Ech112 111b 3 VALUE = { IF (V(111a)<-13.8,5,0) }
    S111 11sa1 11sb1 111b 3 VON
    Ech113 11sb1 3 VALUE = { IF (V(111a)<-13.8,1.11111111111112E-02*(V(111a)–13.8)+2.33,0) }
    Ech114 111c 3 VALUE = { IF ((V(111a)>=-13.8) & (V(111a)<=14),5,0) }
    S112 11sa1 11sb2 111c 3 VON
    Ech115 11sb2 3 VALUE = { IF ((V(111a)>=-13.8) & (V(111a)<=14),((2.33-1.5)/((-13.8–0.476959185286039)(-13.8–0.476959185286039)))(V(111a)–0.476959185286039)(V(111a)–0.476959185286039) + 1.5,0) }
    Ech116 111d 3 VALUE = { IF (V(111a)>14,5,0) }
    S113 11sa1 11sb3 111d 3 VON
    Ech117 11sb3 3 VALUE = { IF (V(111a)>14,-1.19999999999999E-02
    (V(111a)-14)+2.48,0) }
    RIN113 11sa1 3 1G
    EOUT11 a11 11e POLY(2) (11sa1,3) (11f,3) 0 0 0 0 0.999/1000
    FCOPY11 3 11f VSENSE11 1
    RSENSOR11 11f 3 1K
    VSENSE11 11e 11g 0
  • TON/ TOFF/ BBM
    S114 2 11g 11n 3 VON
    S115 11i 11j 11i 3 VEN
    Ech118 11i 3 VALUE = { IF(V(6)<2 & V(187)>=2, 5 , 0.8 ) }
    eV11 11n 3 11j 3 1
    C116 11j 3 1e-012

** SWITCH 2 D1 **
*

  • ESD PROTECTION DIODES SOURCE
    D213 7 8 DCLAMP
    D214 8 4 DCLAMP
  • OFF ISOLATION
    C211 8 1 1e-012
  • CHARGE INJECTION
    C212 1 21n 1e-011
    C213 8 21n 1e-011
  • CD/CS OFF AND BANDWIDTH
    C214 8 3 1e-012
  • ON RESISTANCE
    Ech211 211a 3 VALUE = { IF ((ABS(V(8)))>(ABS(V(21g))),V(8),V(1)) }
    R211 211a 3 1G
    R212 a21 11h 0.001
    Ech212 211b 3 VALUE = { IF (V(211a)<-13.8,5,0) }
    S211 21sa1 21sb1 211b 3 VON
    Ech213 21sb1 3 VALUE = { IF (V(211a)<-13.8,1.11111111111112E-02*(V(211a)–13.8)+2.33,0) }
    Ech214 211c 3 VALUE = { IF ((V(211a)>=-13.8) & (V(211a)<=14),5,0) }
    S212 21sa1 21sb2 211c 3 VON
    Ech215 21sb2 3 VALUE = { IF ((V(211a)>=-13.8) & (V(211a)<=14),((2.33-1.5)/((-13.8–0.476959185286039)(-13.8–0.476959185286039)))(V(211a)–0.476959185286039)(V(211a)–0.476959185286039) + 1.5,0) }
    Ech216 211d 3 VALUE = { IF (V(211a)>14,5,0) }
    S213 21sa1 21sb3 211d 3 VON
    Ech217 21sb3 3 VALUE = { IF (V(211a)>14,-1.19999999999999E-02
    (V(211a)-14)+2.48,0) }
    RIN213 21sa1 3 1G
    EOUT21 a21 21e POLY(2) (21sa1,3) (21f,3) 0 0 0 0 0.999/1000
    FCOPY21 3 21f VSENSE21 1
    RSENSOR21 21f 3 1K
    VSENSE21 21e 21g 0
  • TON/ TOFF/ BBM
    S214 8 21g 21n 3 VON
    S215 21i 21j 21i 3 VNE
    Ech218 21i 3 VALUE = { IF(V(6)>=2 & V(187)>=2, 5 , 0.8 ) }
    eV21 21n 3 21j 3 1
    C216 21j 3 1e-012

.ENDS ADG1419

looks like it auto formats it when i reply…sorry for that

It appears that the issue is evaluating the if statements with nets inside a hierarchical block compared to when it is placed at the top level. Has anyone seen such a behavior?

If you still need help with this, please e-mail me the model. The forum doesn’t do great job of sharing files.

Thanks,

–Mike

Not only does the forum do the formatting, but it can mangle math expressions. I came across this when I tried to use the multiplication symbol *.

The IT folks here would have to get some resources allocated to get themselves adequately acquainted with the Discourse forum software, write some syntax highlighters for *.cir, *.qsch, *.qsym, and configure things appropriately, including plugins and attachments. Or they would have to bring themselves to have it done for them externally. Or users use preformatted text (</>) with txt as language to disable highlighting for the time being…

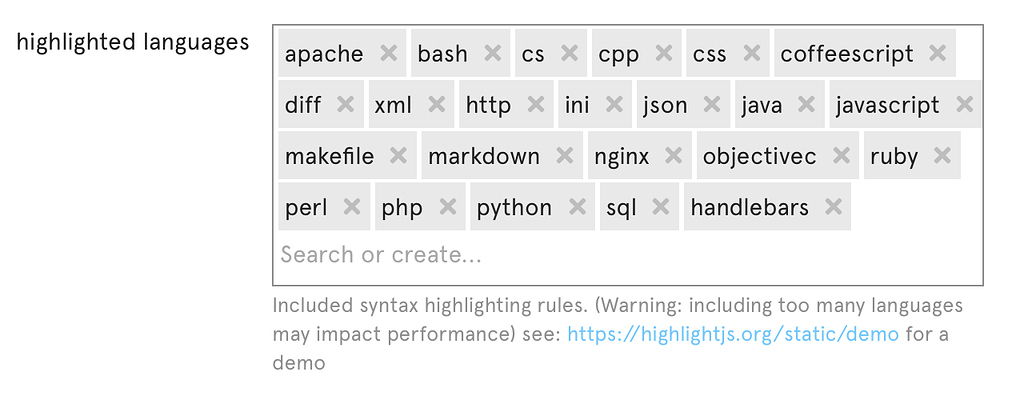

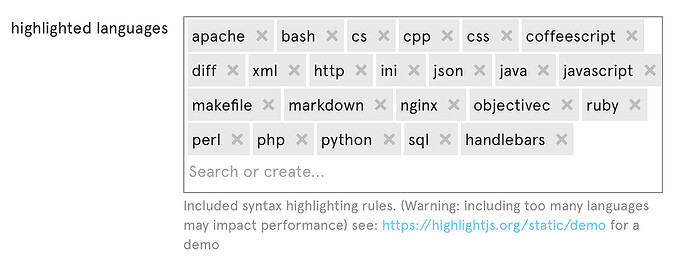

We have it on our to-do list to configure Discourse to support .qsym and .qsch file formatting. Thanks for the useful links.

In the 9/23 software update, Mike fixed the issue I was having with the ADG1419.cir file using it in a hierarchical schematic.

Thanks so much Mike
Ravi

1 Like
