Is It Possible To Simulate A DC Motor With QSpice?

[qspice_newb]

Hello,

is it possble to model a DC motor with QSpice to simulate it? So that I can then design the compensator and model its closed loop performance.

[lpoma]

@qspice_newb ,

Brushed DC or

Brushless DC (see QSPICE Schematic Capture “BLDCM")?

Len

[qspice_newb]

Thank you @lpoma for the lead.

I need to look into this first to learn how it works and see if I can create a compensator to stabilize it based on entered motor parameters. I am new to this so might take some time.

Much appreciated!

[KSKelvin]

@lpoma

Brushed DC

For Brushed DC electric motor modeling, two useful modeling resource are from PLECS and PSIM
DC Machine — PLECS 5.0 Documentation
Tutorial - Electric Machine Modeling.pdf — PSIM

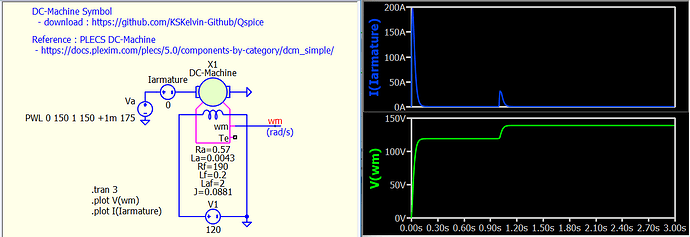

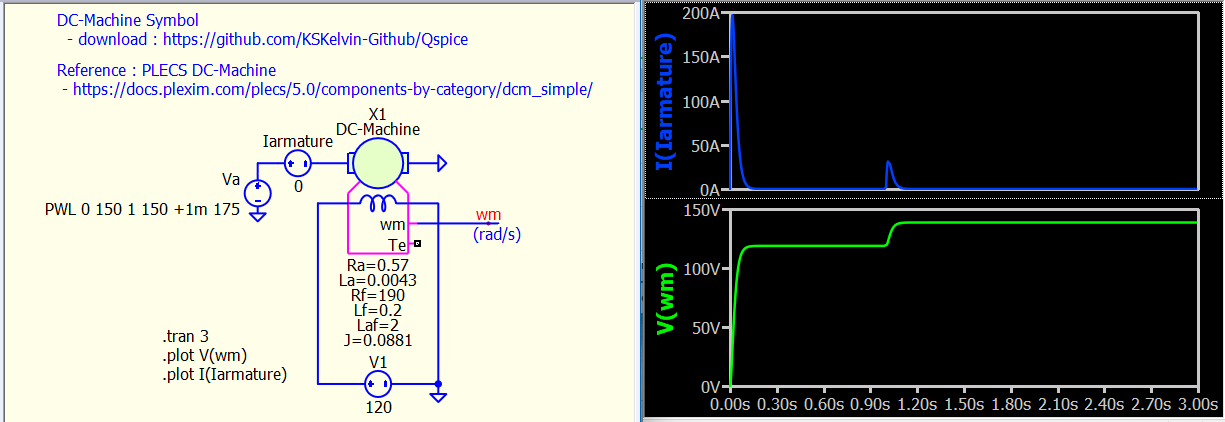

This is a DC machine equivalent to PLECS implementation for your reference. (not implement Initial rotor position as I am not sure how to include that, but generally it is set to 0 so not that important).
example.DC-Machine.qsch (5.4 KB)

[qspice_newb]

Thank you @KSKelvin.

I will review the material. I am sure that I will have some questions in the near future.

Again, greatly appreaciated!

Update:

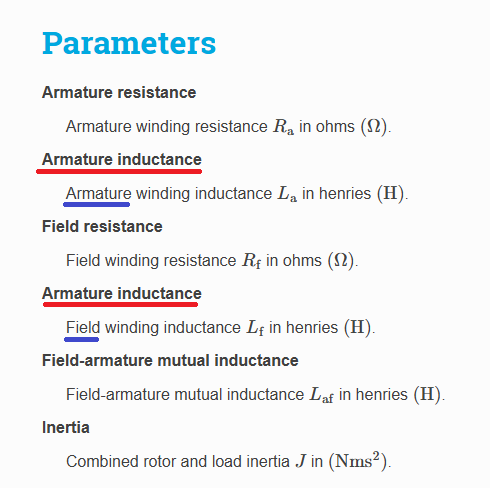

Small clerical error in one of the webpages - wrong sub-heading:
