Initial condition of idt

Hello, guys
i am trying to make pi compensator block and current controller block which contain two pi compensator blocks.
when current controller contains two integrators and is used in a schematic,how to set different initial values for each integrator in the schematic?

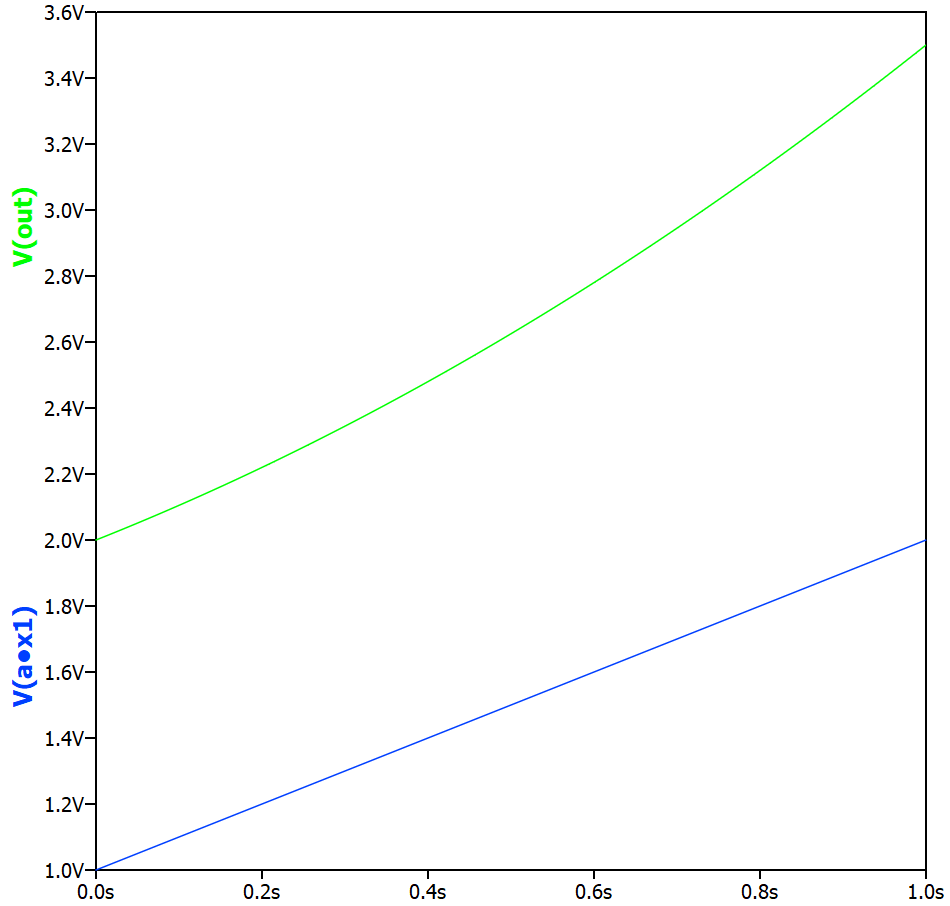

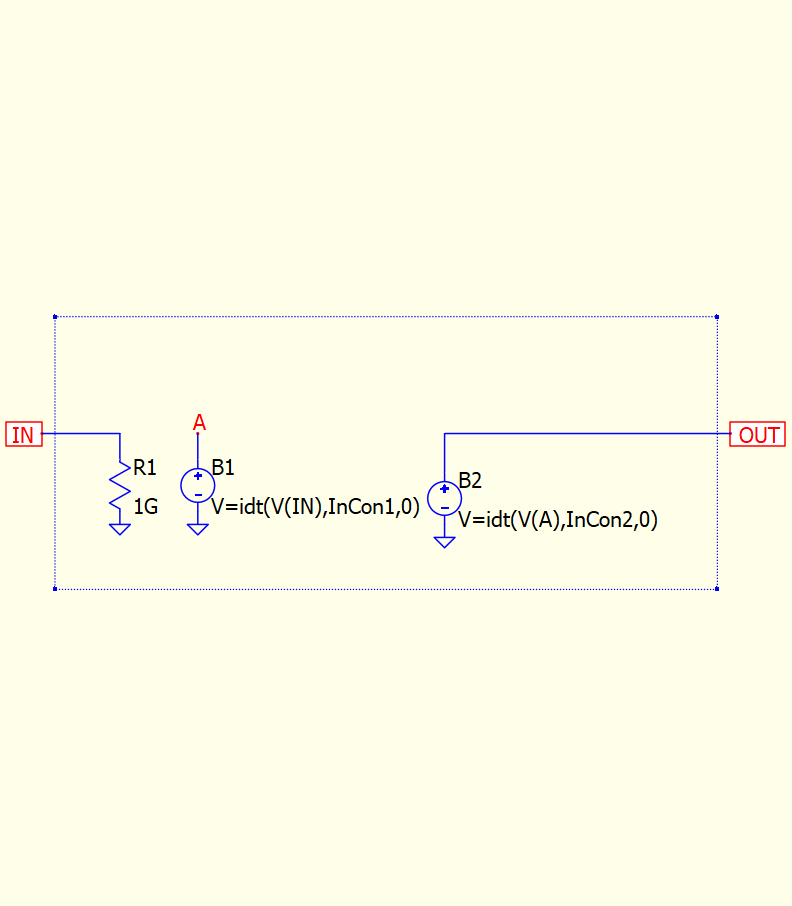

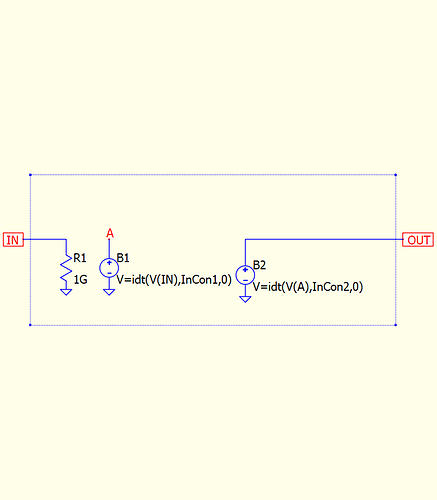

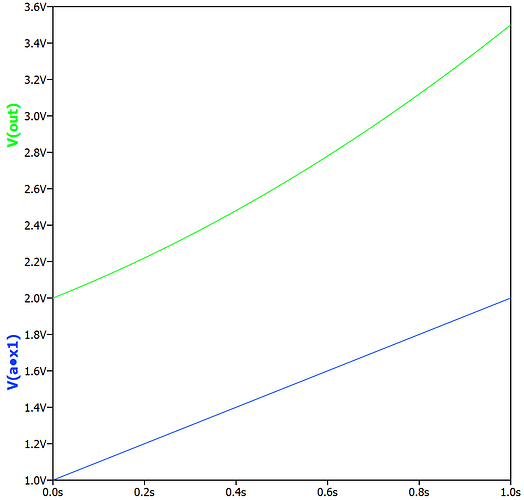

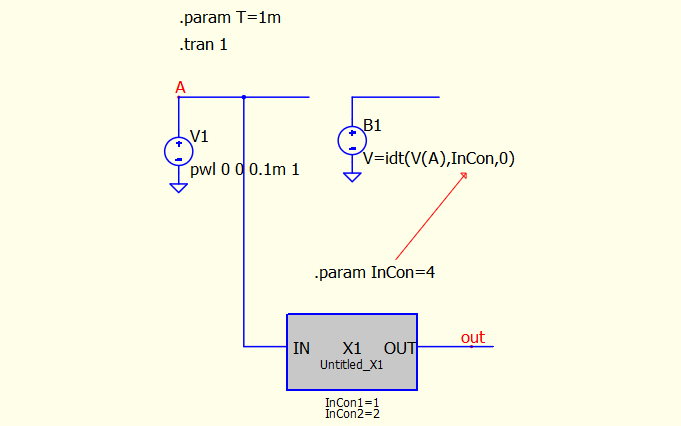

Here is how to set initial conditions for two idts.



Untitled_X1.qsch (2.4 KB)
Untitled.qsch (2.8 KB)

Best regards

1 Like

Why is needed that 1G R1 resistor?

R1 is there only to act as a ground reference, probably you don’t need to add it.

Best regards
