Hi All,

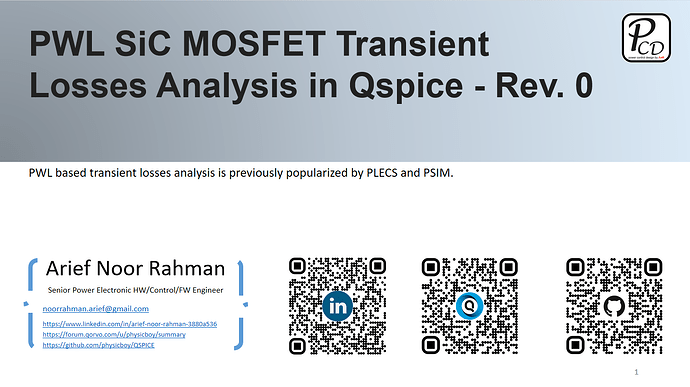

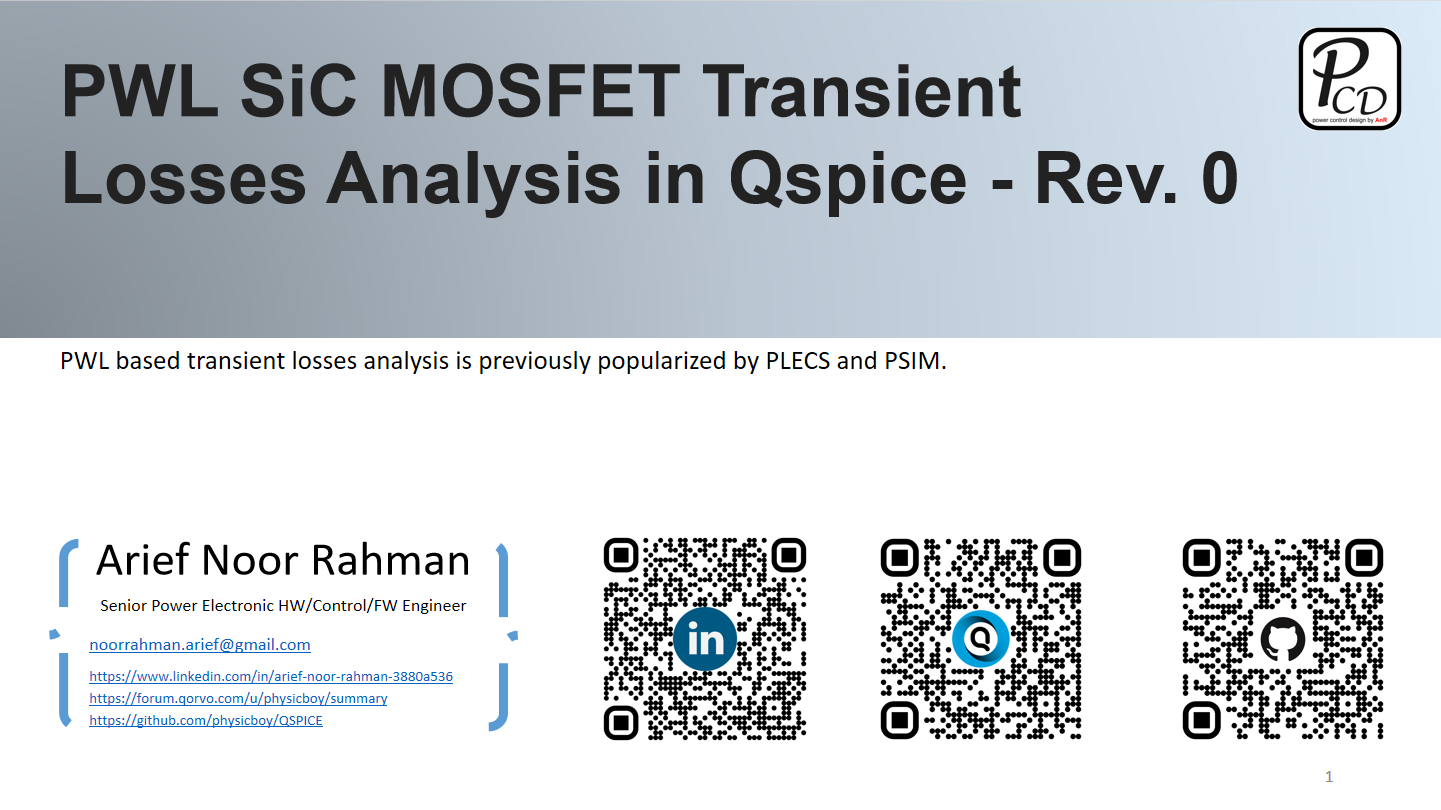

New Qspice analysis tool for transient losses evaluation based on ideal PWL switch simulation.
Basically its my take on PWL losses analysis as have been popularized by PLECS and PSIM and simply implement it in Qspice. Hella fast speed for 0$$.
Get the whole simulation file here from Github:
Let me know if there is anybody have idea on to improving this tool.
Cheers,
Arief,
