Howto change the symbol of imported model

QSPICE
1

When importing models of diodes into qspice the visual symbol can be selected by supplying the type parameter in the model data:

  • type LED will pick the LED-symbol
  • type Schottky will pick the Schottky-symbol
  • type Zener will pick the Zener-symbol

When importing a mosfet the symbol for N-Channel MOSFET Transistor will be used.

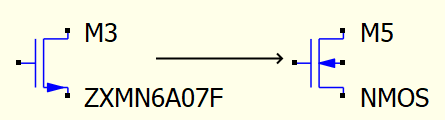

How can I change the symbol to be Monolithic N-Channel MOSFET Transistor?

grafik
grafik445×120 2.5 KB

Can I modify a symbol after a component is placed?

I tried to change the text in the Symbol Properties/Basics/Description from
Resistor(USA Style Symbol) to Resistor(UK Style Symbol), but there is no change in the visual representation of the symbol.

2

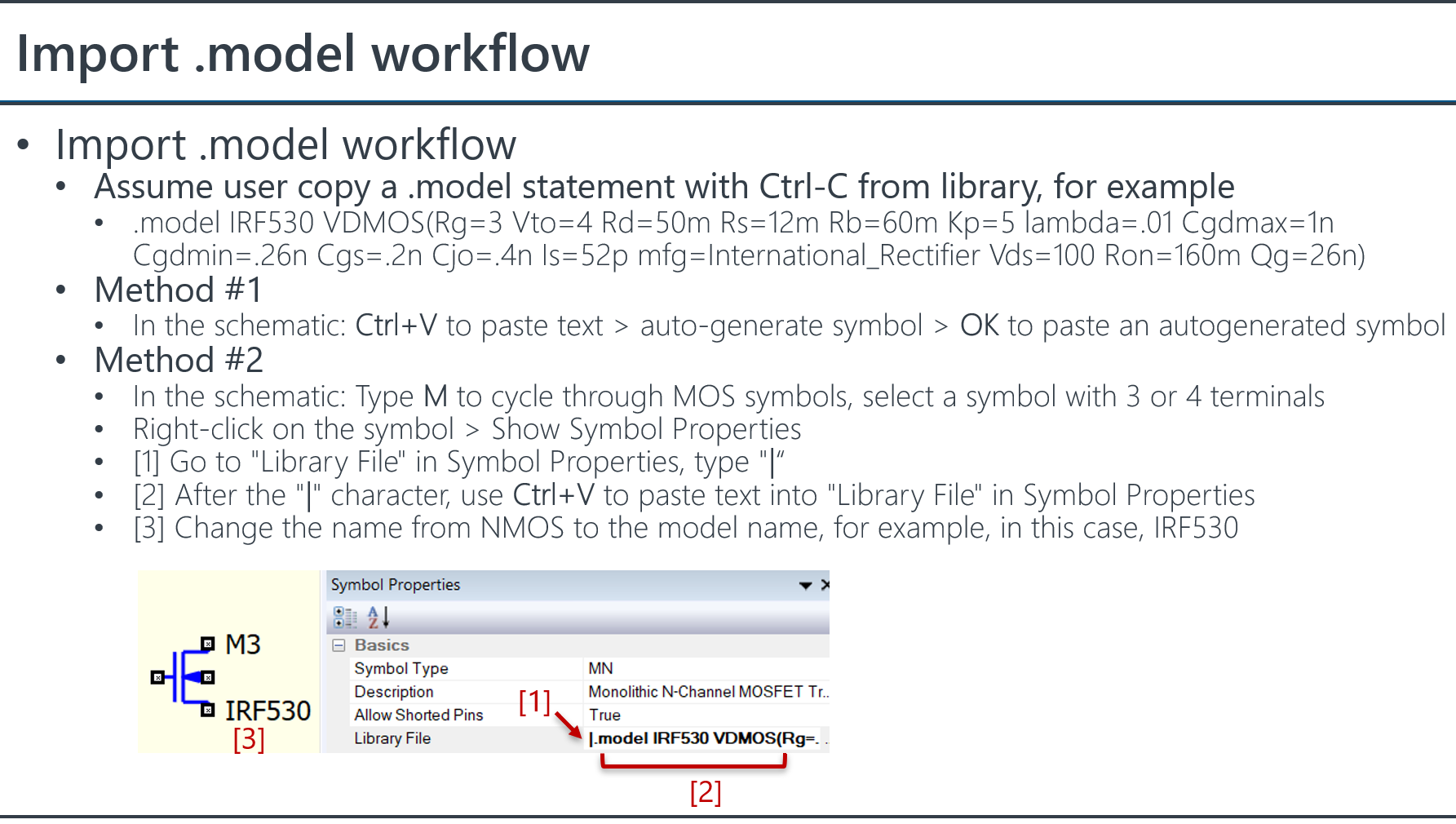

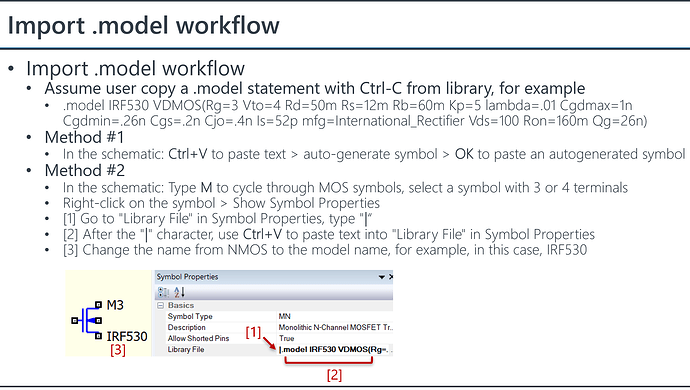

You can modify symbol after its created, but in your case, with a .model, you can use method #2 to quickly complete what you want for embedded .model symbol.

image1785×1010 138 KB

3

@KSKelvin thanks for pointing out #2 workflow. Adding a part and then pasting the model data in the properties is no extra work.
