How to simulate practical transformer?

QSPICE
1

How to simulate practical transformer?
For example, I need to simulate high voltage DC converter in Qspice. I am able to place transformer symbol but how to enter the parameters like primary and secondary inductances, leakage inductances etc.

Is there any isolated DC Converter simulation examples in Qspice?

2

See example:

image586×697 33.8 KB

3

Thanks for suggestion.
Can I get any example for isolated DC Converter (like flyback or LLC converter)?

4

See

ACDC

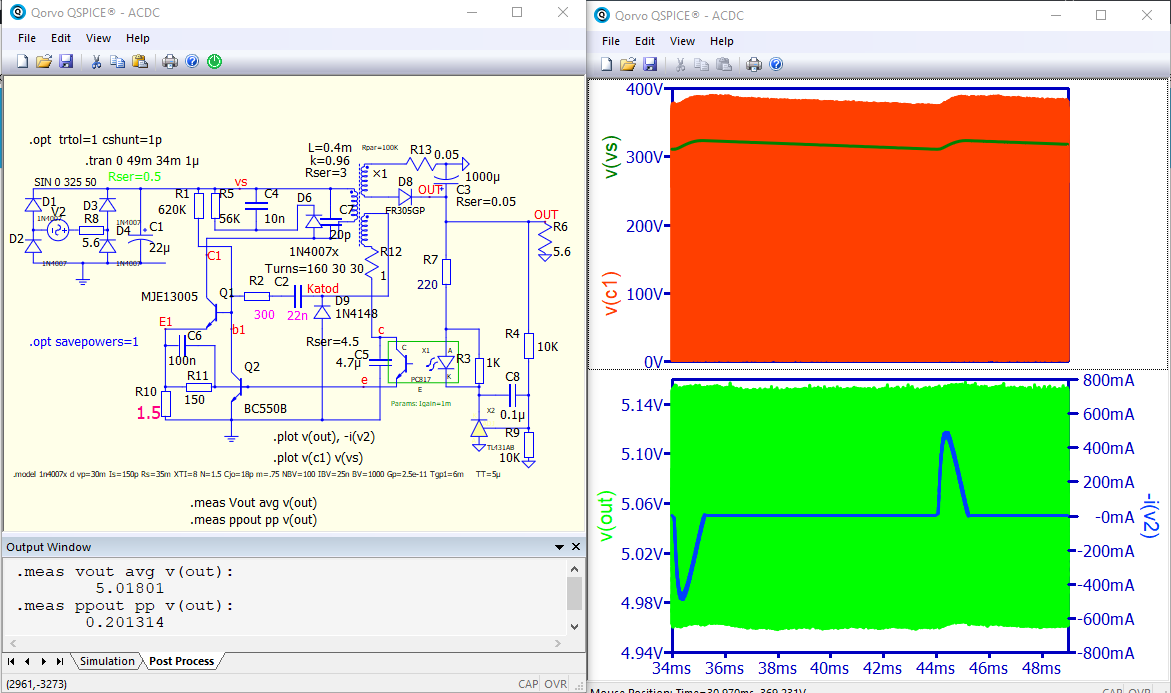

ACDC1171×693 65.5 KB

ACDC.qsch (28.7 KB)

2 Likes
