How to simulate current output from an AD1865 DAC and others?

KSKelvin · June 11, 2025, 4:22pm

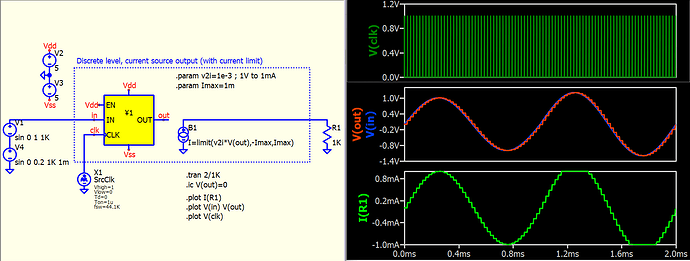

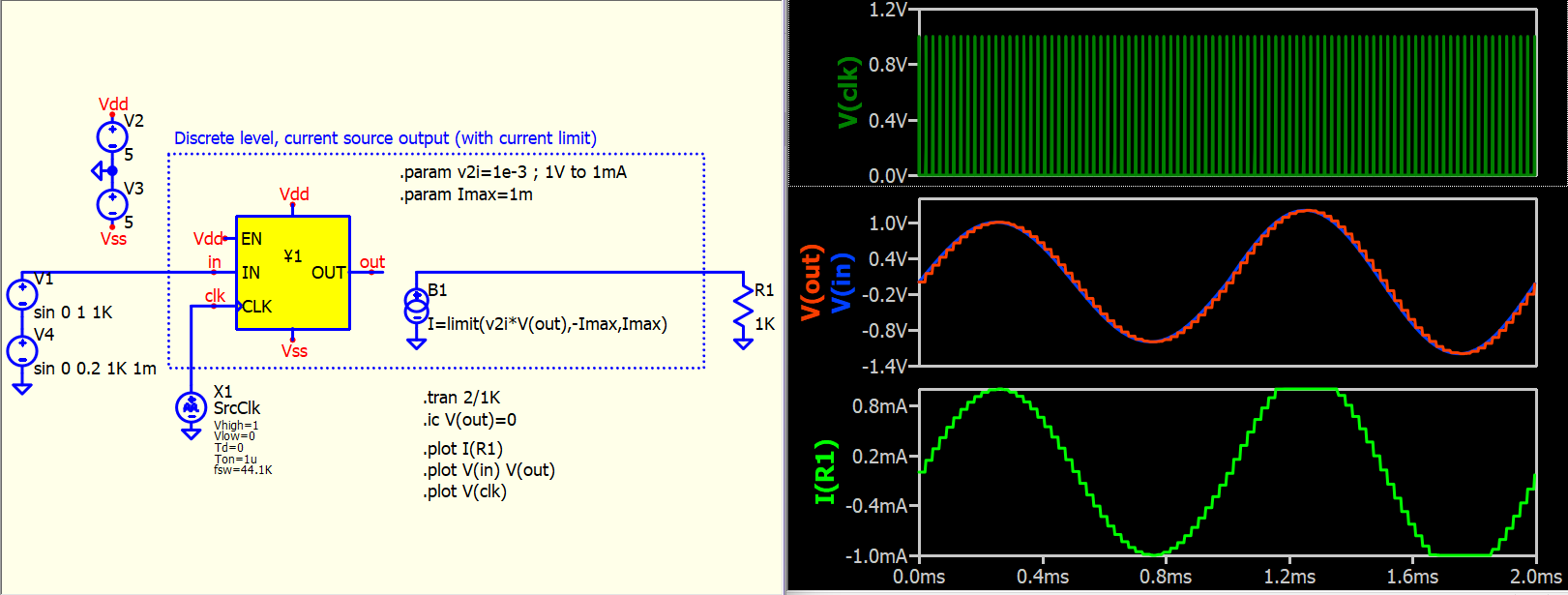

Are you looking for a behavioral setup to get something like this?
DAC-CurrentSourceOutput.qsch (8.3 KB)
