How to measure duty

QSPICE
2

I have a direct PWM waveform measurement symbol. The symbol can be download from my Symbol library in following path.

Symbols-KSKelvin (Github) : / probes and measure / Measure-PWM.qsym

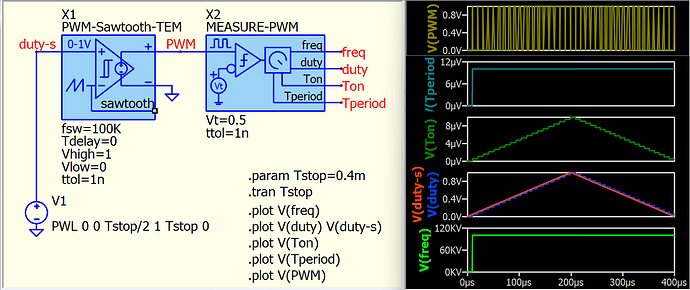

This is a demo schematic.
example.Measure-PWM.qsch (7.8 KB)

image1444×607 82.7 KB
