How can I accurate model IV curve for a MOSFET?

QSPICE
1

Hi,

Just wanted to know if there is a tool or a way to model the Vds-Id curve for a MOSFET.

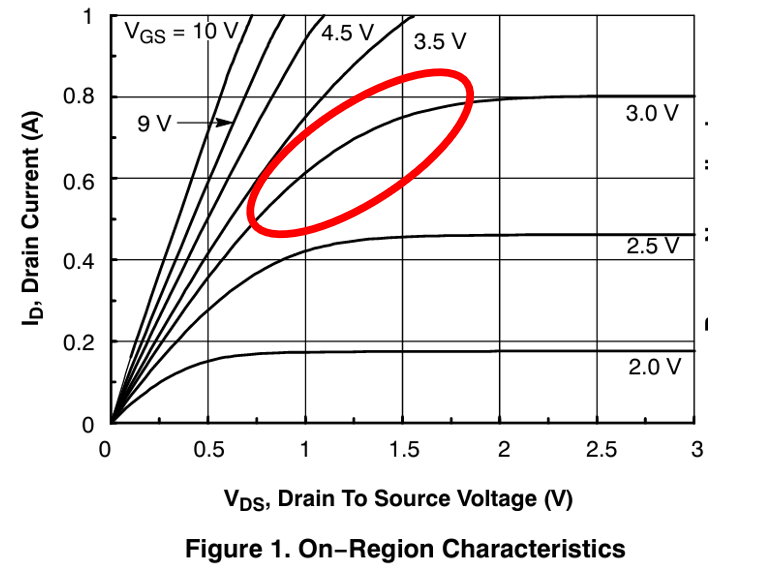

image776×568 71.1 KB

I was using the model generator from QSPICE, but it only let me digitalize 3 points, and trying to be as accurate as possible. Is there a way to tune any parameter to smooth the curve or simply use more point to digitalize?

Thank you very much.

2

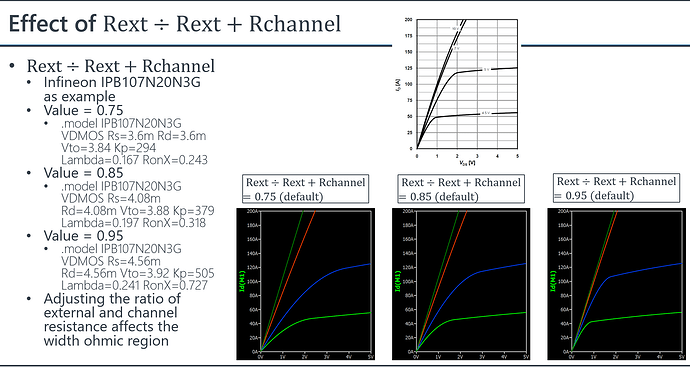

A member noticed that this parameter in the preliminaries window affects the width of the ohmic region. I cannot recall which post it was, but I documented this in the model generators guide.

Qspice/Guideline/Qspice - Model Generators Guide by KSKelvin.pdf · KSKelvin-Github/Qspice

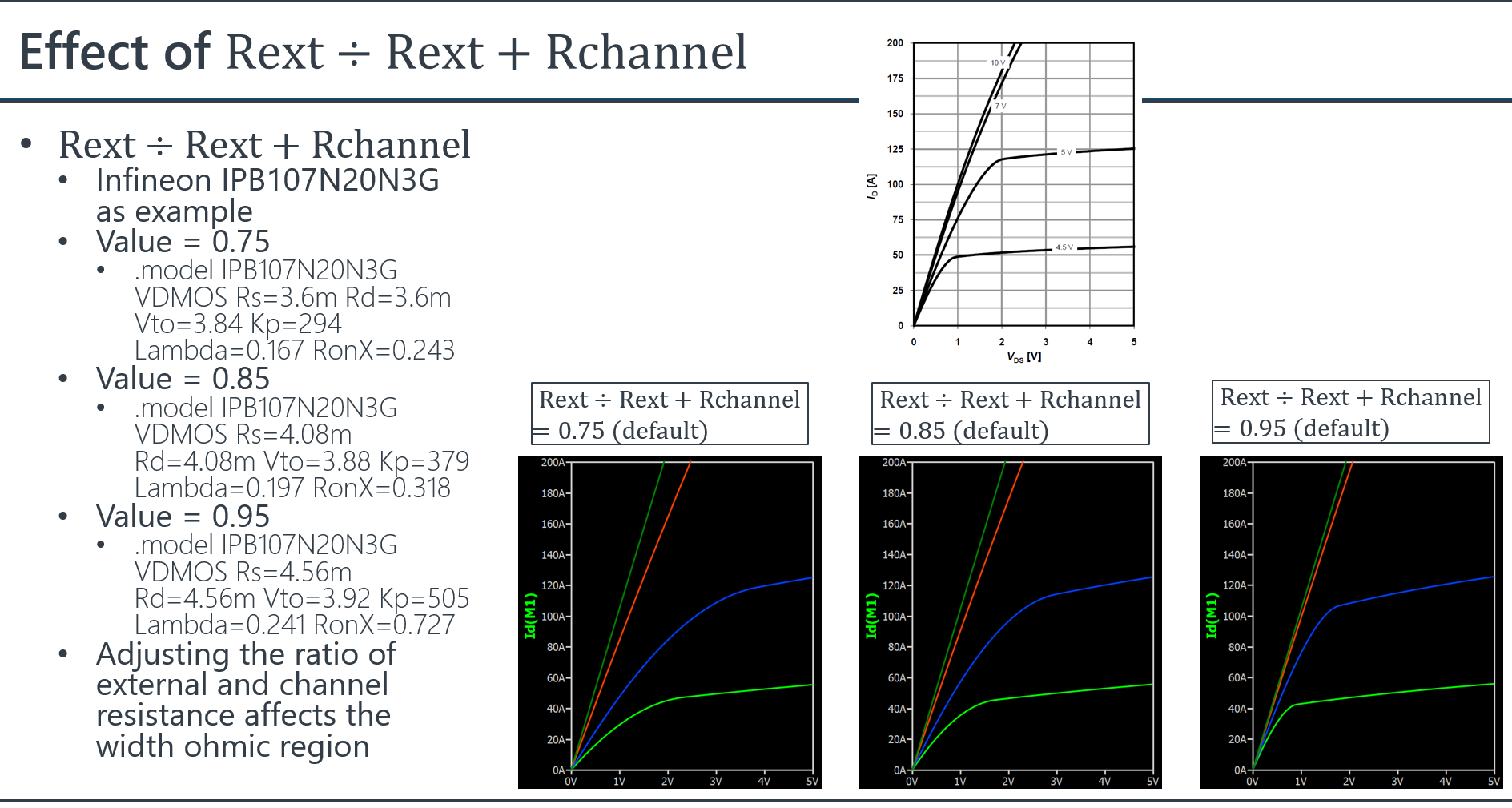

image1888×1009 178 KB

3 Likes
3

Thank you very much!!!

I’ll try let you know my results.
