Diode Model Generator weird result

QSPICE
1

Hi everyone,

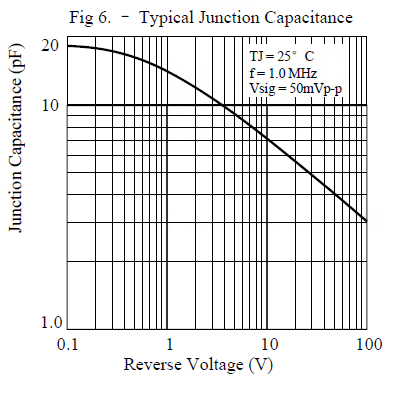

I’m using the Diode Model Generator to digitize a Capacitance vs. Reverse Voltage curve. However, I encountered a strange issue where the generated data points do not align with the original datasheet plot (as shown in the screenshots).：

image394×394 23.7 KB

I tried to digitize the curve, but the extracted data points seem incorrect:
image554×602 66.9 KB

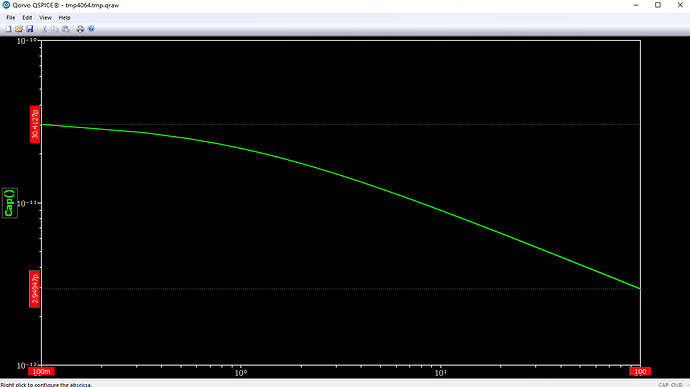

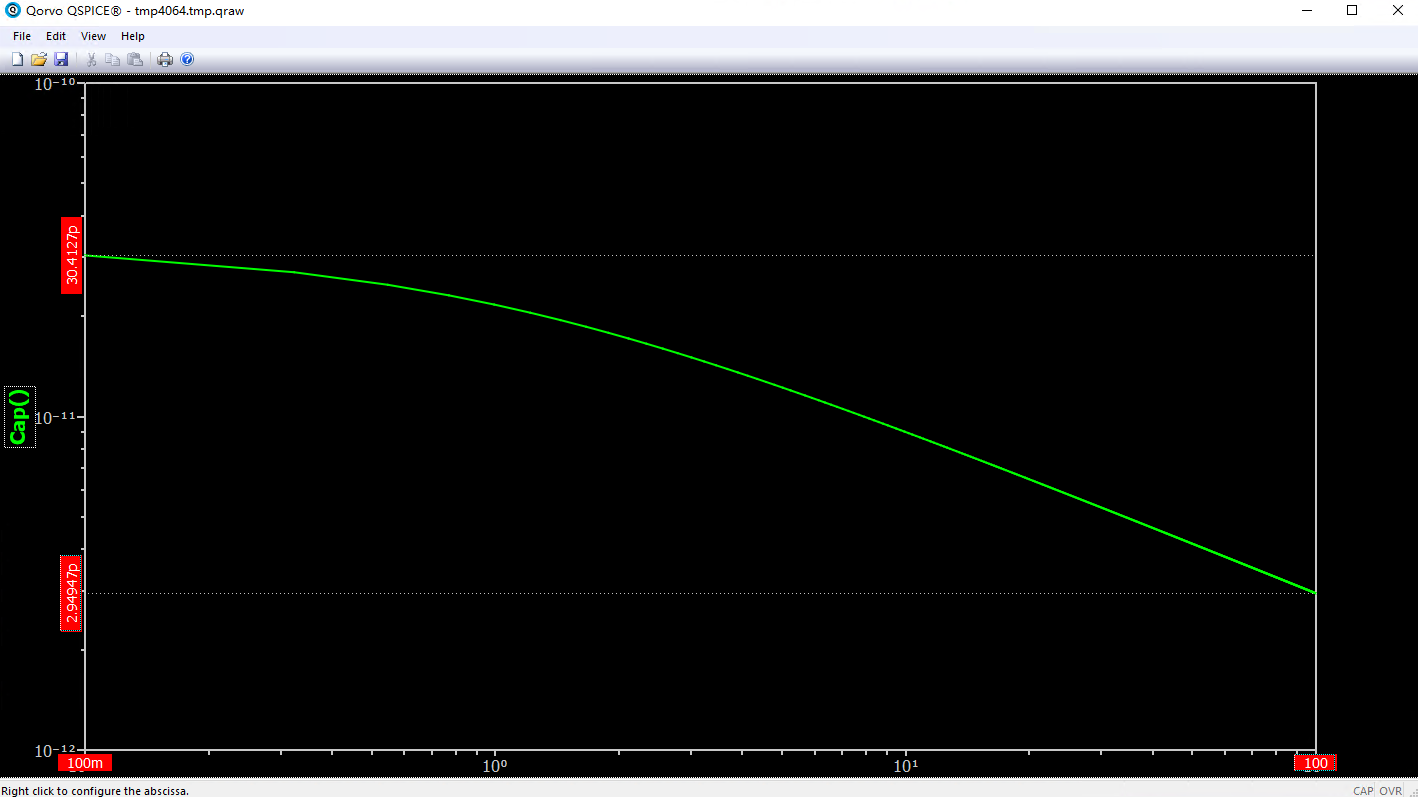

Here is the result after clicking the ‘test’ button; it doesn’t match the coordinates shown above:
image1418×797 36.6 KB

Could you help me check if I missed any settings?

2

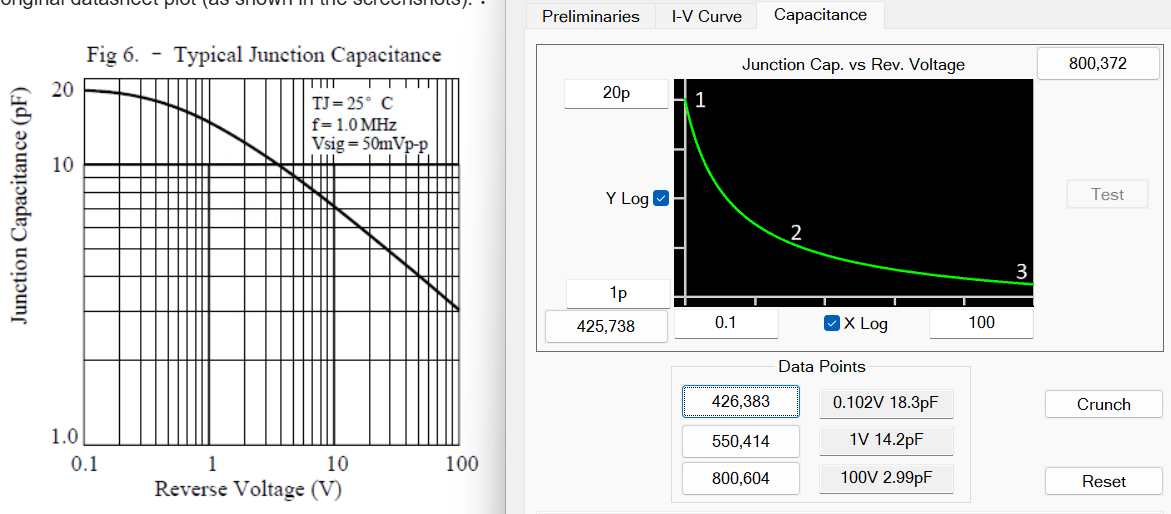

No issues with digitizing this chart.

image1171×514 87 KB

1 Like
3

If you did not yet spot it from KSKelvin’s picture, you set the y axis from 20pF to 1F instead of 20p to 1p. This wont end up into any realistic result.

2 Likes
4

Yes, this is indeed the cause of the error, a junior mistake, haha, thanks a lot Anssik！
