Hi support team
Please provide information regarding the specifications and characteristics of the 19-pin Vdet Detector voltage.
Best regards,

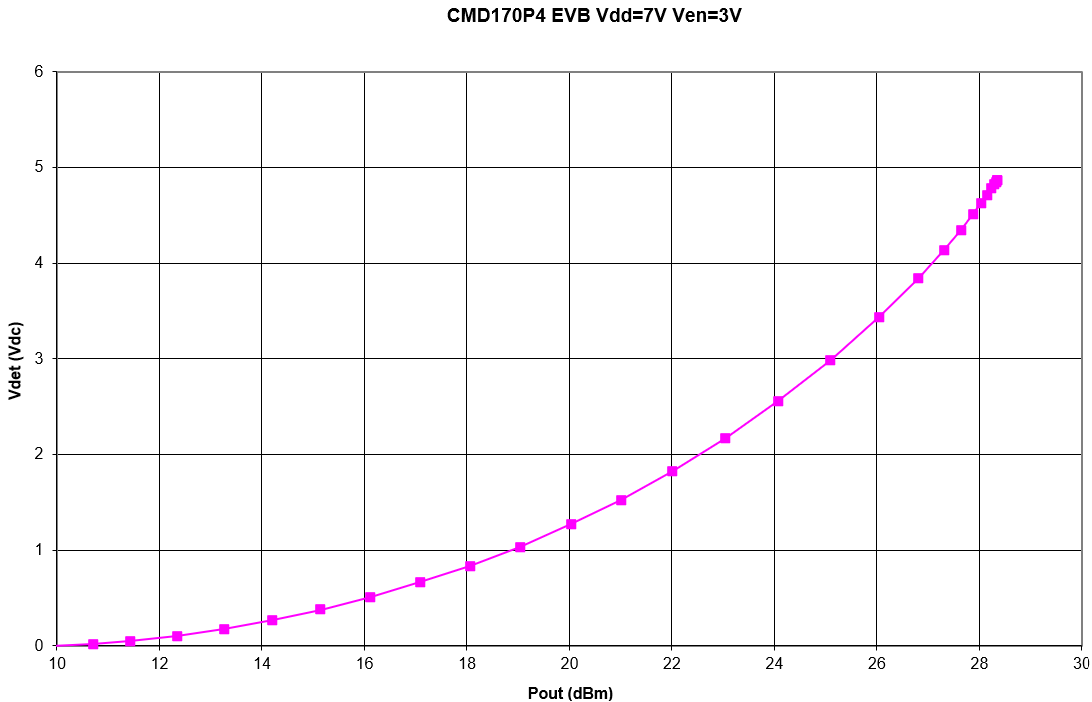

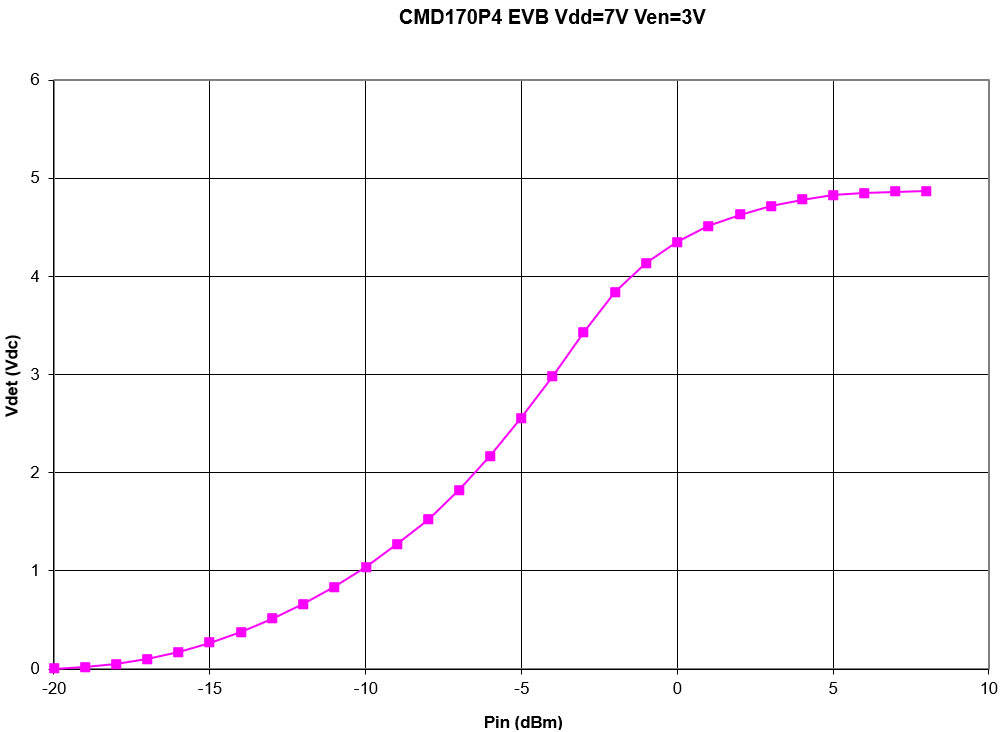

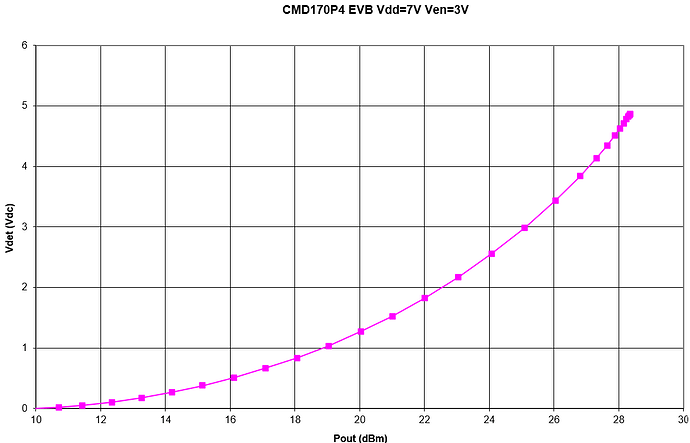

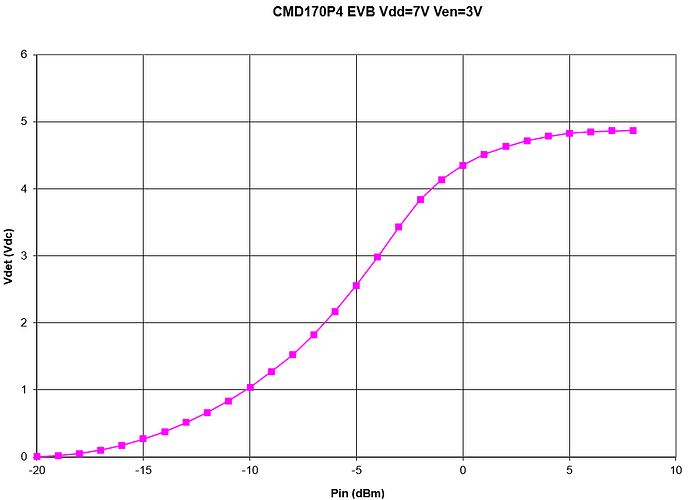

Below are plots of typical detector response, versus input power and output power.
