Calculating Power Factor

GVP · June 23, 2025, 1:44pm

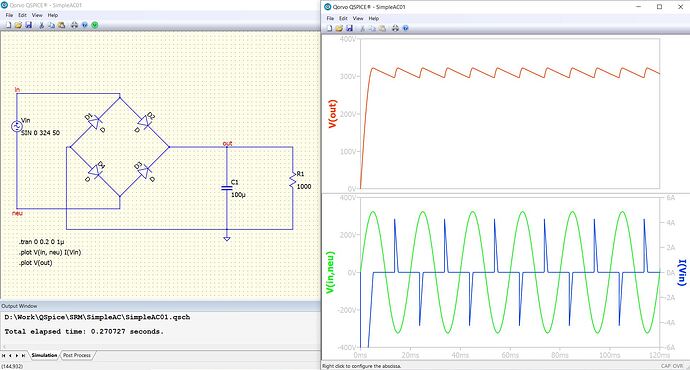

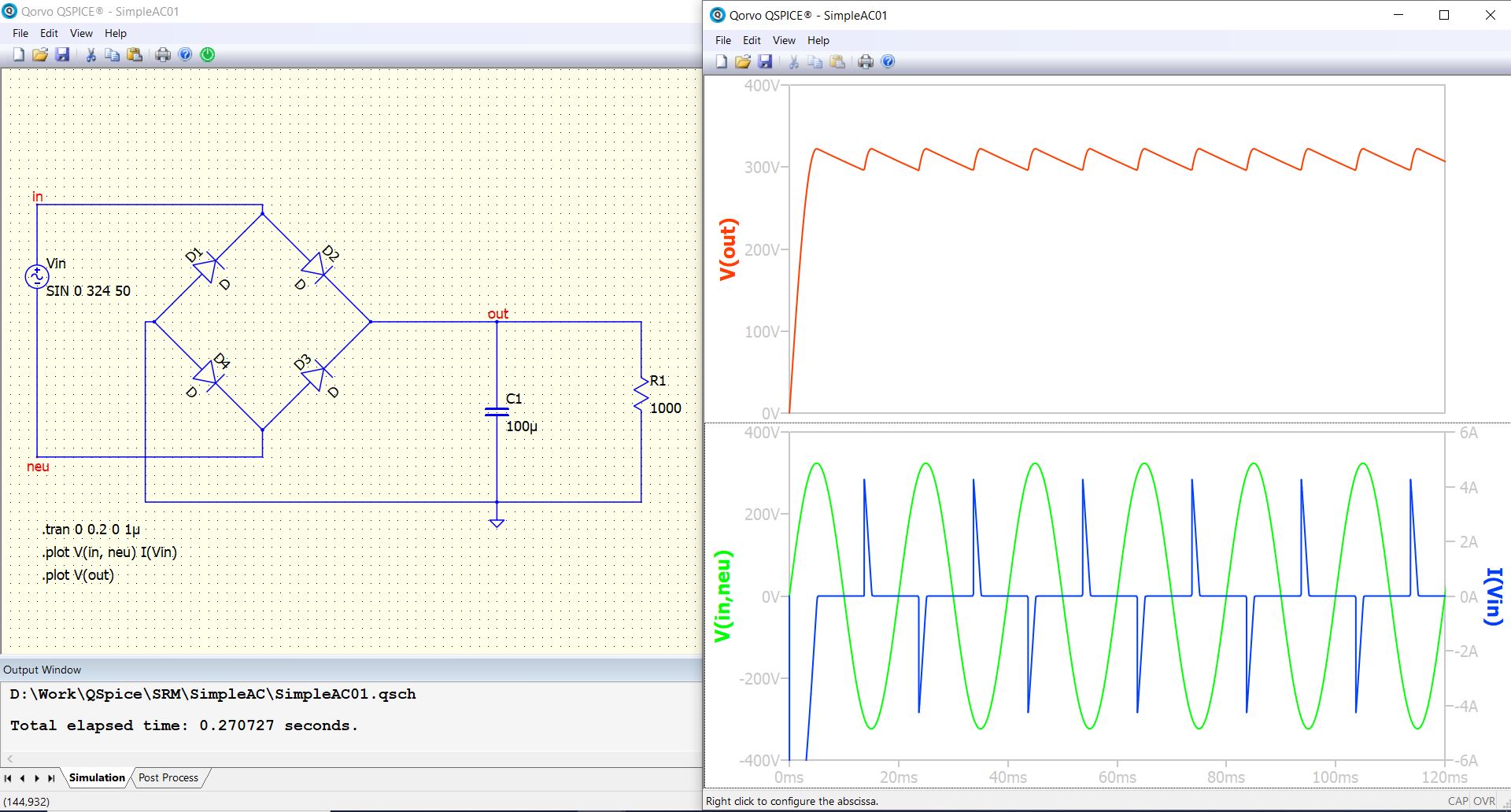

I have created a full-wave rectifier bridge and getting the current and voltage waveforms as expected. However, I’m not able to understand how to calculate RMS voltage and current so that I can calculate the Power factor. Can anyone please guide me with this?

macsky · June 23, 2025, 1:54pm

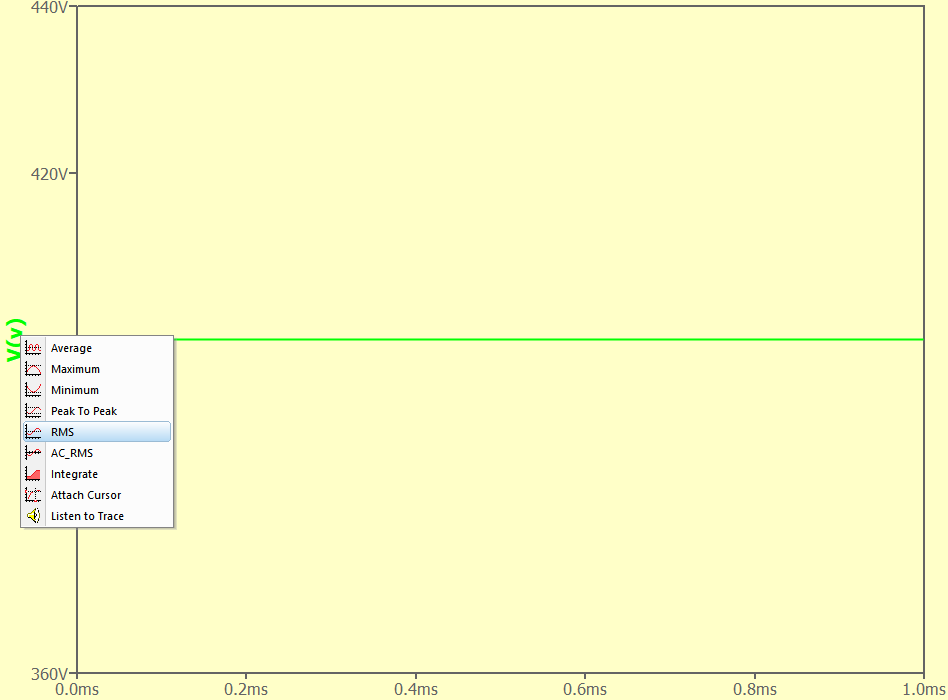

CTRL + right click on a plot label.

GVP · June 23, 2025, 2:15pm

Thanks a lot. This displays a calculated value in the output window and not another plot. Is it possible to plot power factor by using a formula? Like PF = V(t)I(t) / VrmsIrms ?

macsky · June 24, 2025, 3:09am

Please check the @KSKelvin post, it might be suitable for your application.

GVP · June 24, 2025, 7:17am

Thanks a lot, this was really helpful.
