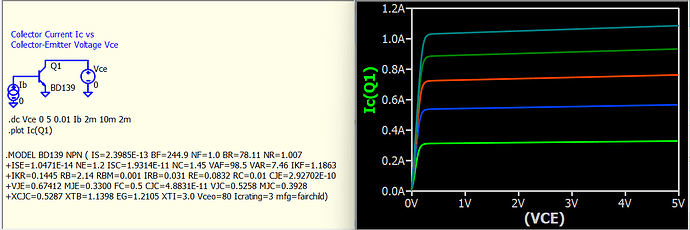

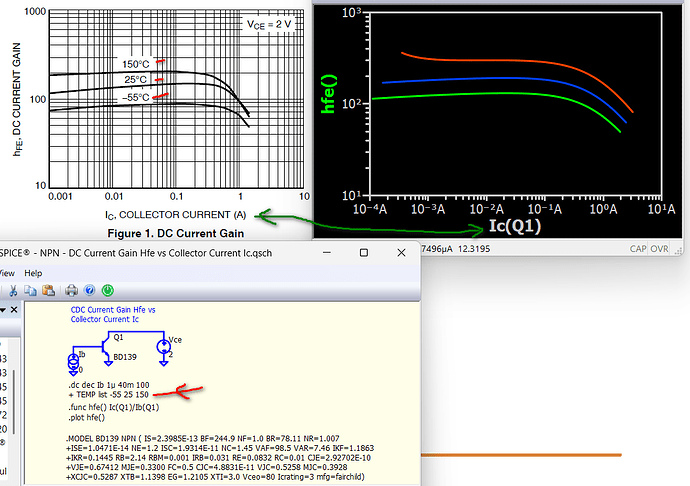

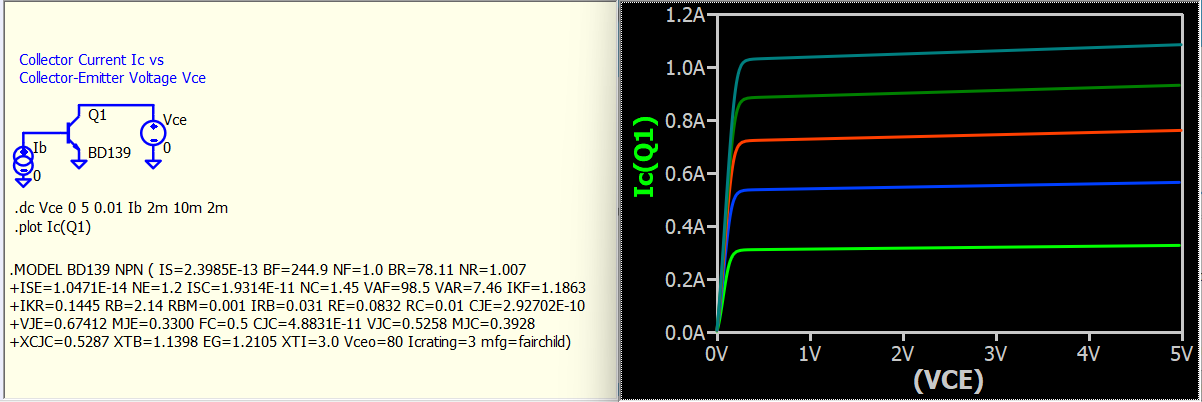

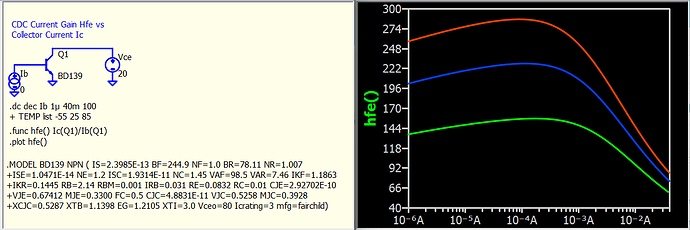

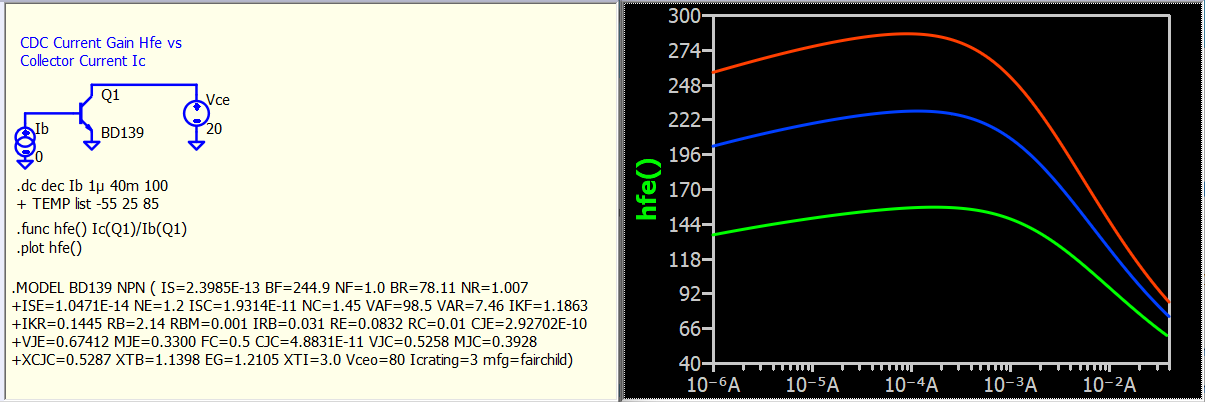

Theory: Ic/Ib = h21.
Now I have three BD139 transistor models.
The first one model - works perfect in all amplifire simulation.
Next two models works, but when I use them in amplifire simulation - my amplifire not works perfect - they are not perfect.
The question is:

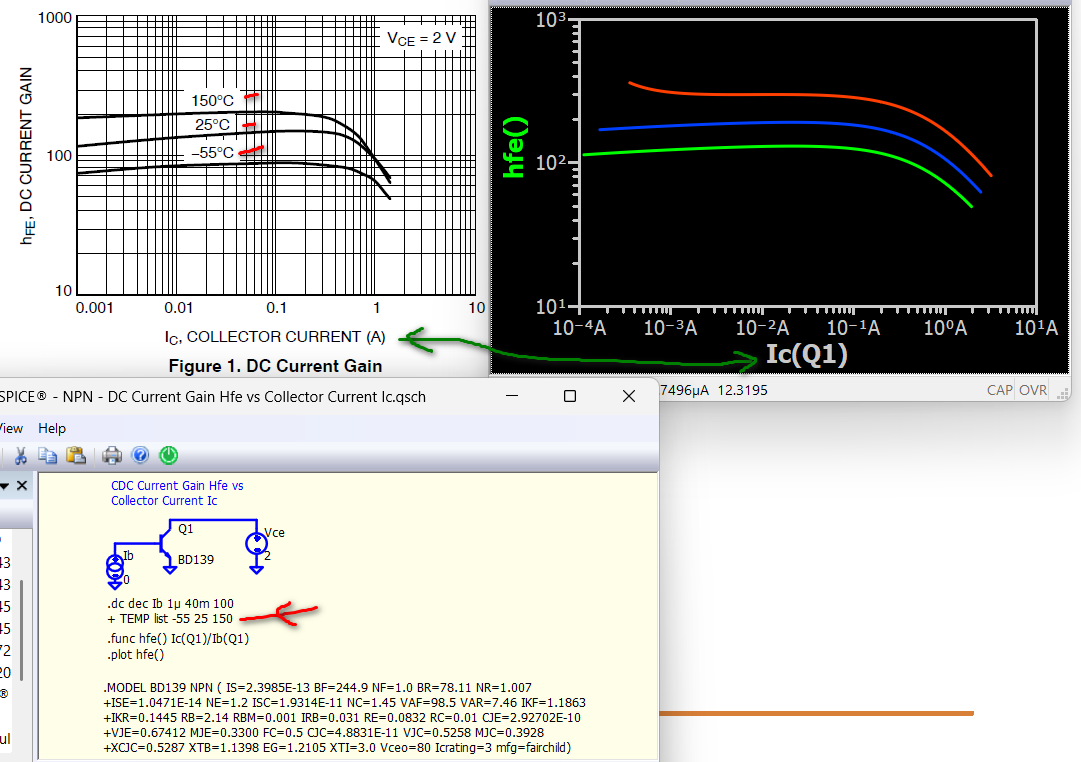

- when I have three different models of BD139 transistors (or others) - is easy way to count transistors h21 - to buy real I need?

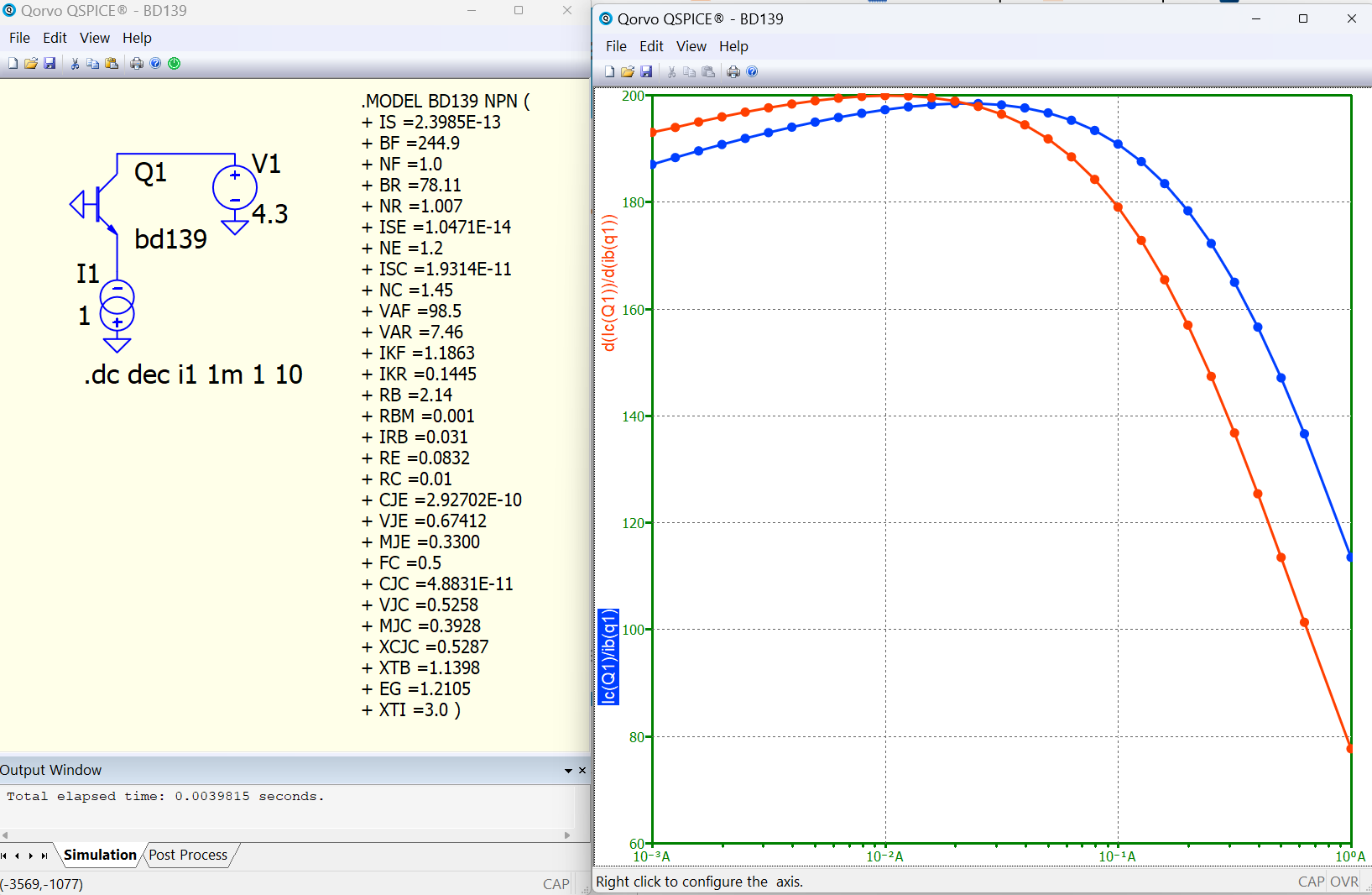

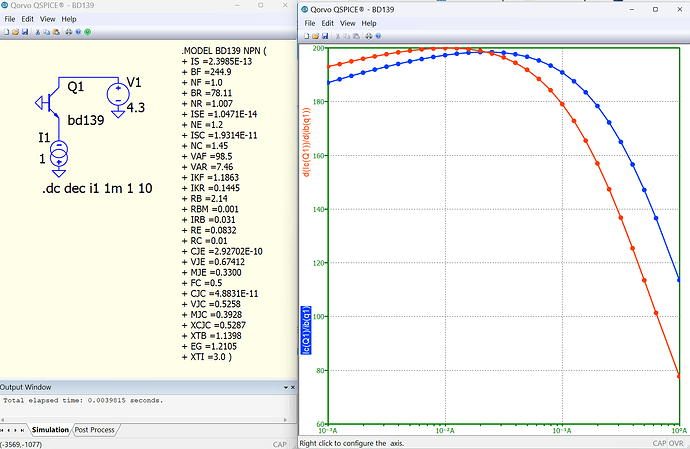

.model BD139 NPN(IS=2.3985E-13 BF=244.9 NF=1.0 BR=78.11 NR=1.007 ISE=1.0471E-14 NE=1.2 ISC=1.9314E-11 NC=1.45 VAF=98.5 VAR=7.46 IKF=1.1863 IKR=0.1445 RB=2.14 RBM=0.001 IRB=0.031 RE=0.0832 RC=0.01 CJE=2.92702E-10 VJE=0.67412 MJE=0.3300 FC=0.5 CJC=4.8831E-11 VJC=0.5258 MJC=0.3928 XCJC=0.5287 XTB=1.1398 EG=1.2105 XTI=3.0)
-
Model Generated by MODPEX *
Copyright(c) Symmetry Design Systems
-
All Rights Reserved * - UNPUBLISHED LICENSED SOFTWARE *
- Contains Proprietary Information *
-
Which is The Property of * -
SYMMETRY OR ITS LICENSORS * - Modeling services provided by *
- Interface Technologies www.i-t.com *

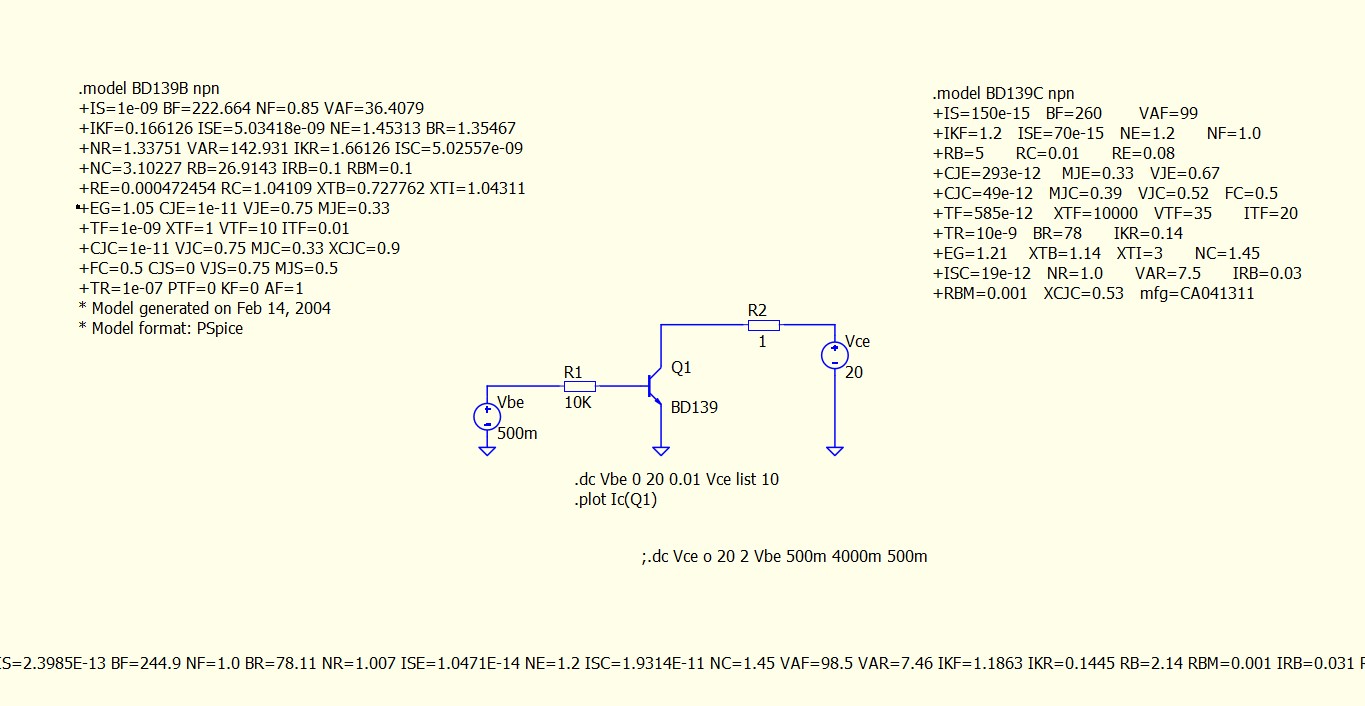

.model BD139B npn
+IS=1e-09 BF=222.664 NF=0.85 VAF=36.4079
+IKF=0.166126 ISE=5.03418e-09 NE=1.45313 BR=1.35467
+NR=1.33751 VAR=142.931 IKR=1.66126 ISC=5.02557e-09
+NC=3.10227 RB=26.9143 IRB=0.1 RBM=0.1
+RE=0.000472454 RC=1.04109 XTB=0.727762 XTI=1.04311
+EG=1.05 CJE=1e-11 VJE=0.75 MJE=0.33
+TF=1e-09 XTF=1 VTF=10 ITF=0.01
+CJC=1e-11 VJC=0.75 MJC=0.33 XCJC=0.9
+FC=0.5 CJS=0 VJS=0.75 MJS=0.5
+TR=1e-07 PTF=0 KF=0 AF=1
- Model generated on Feb 14, 2004
- Model format: PSpice
- BD139C_ - created April 13, 2011 copyright Cordell Audio
.model BD139C_ npn
+IS=150e-15 BF=260 VAF=99
+IKF=1.2 ISE=70e-15 NE=1.2 NF=1.0
+RB=5 RC=0.01 RE=0.08
+CJE=293e-12 MJE=0.33 VJE=0.67
+CJC=49e-12 MJC=0.39 VJC=0.52 FC=0.5
+TF=585e-12 XTF=10000 VTF=35 ITF=20
+TR=10e-9 BR=78 IKR=0.14
+EG=1.21 XTB=1.14 XTI=3 NC=1.45
+ISC=19e-12 NR=1.0 VAR=7.5 IRB=0.03
+RBM=0.001 XCJC=0.53 mfg=CA041311
THX
