Hello, good morning.
Im trying to simulate an exercise about rc first order circuits, and Im get some wrong results.

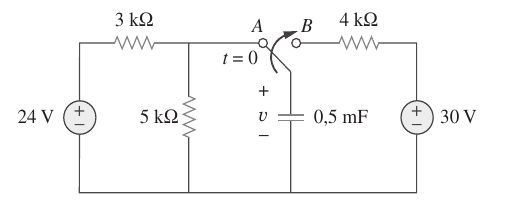

The circuit from book is:

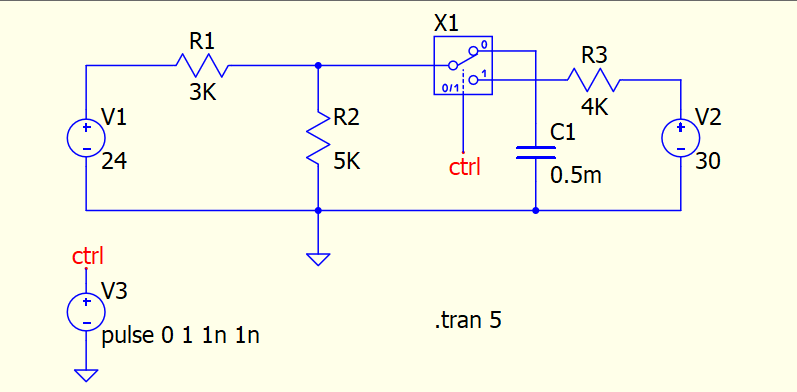

And I used a switch from @KSKelvin to close ab nodes.

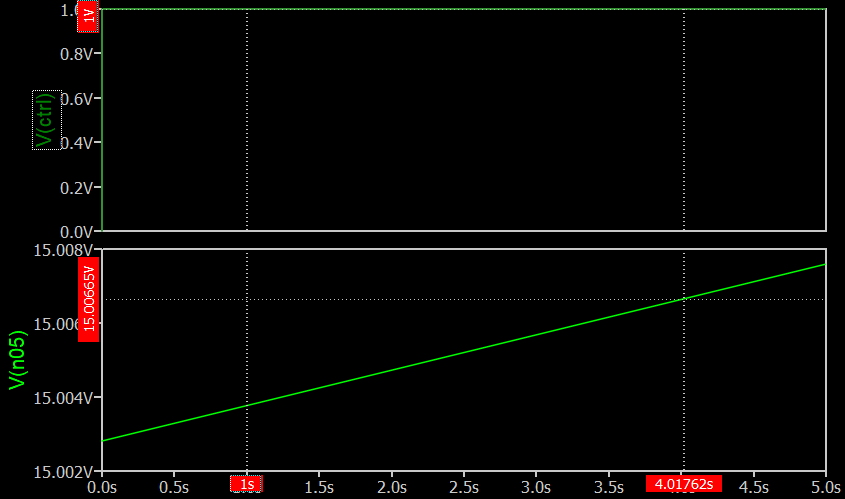

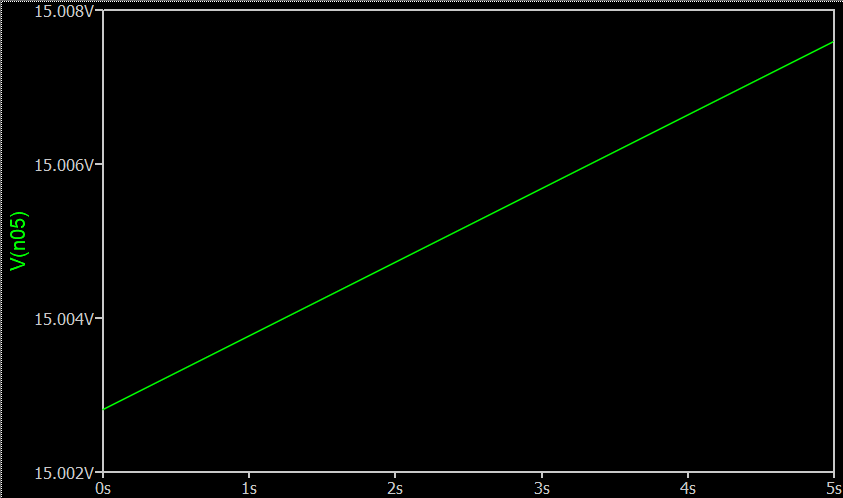

The v(0) capacitor voltage is 15v. Its correct as the book says, but the v(t), in t = 4s, must be 27.97 V, and I’m gettin 15 V.
May some show me what Im doing wrong?
Check your initial conditions.
Do you mean setup .ic C1=0?
Sometime, garbage in garbage out.

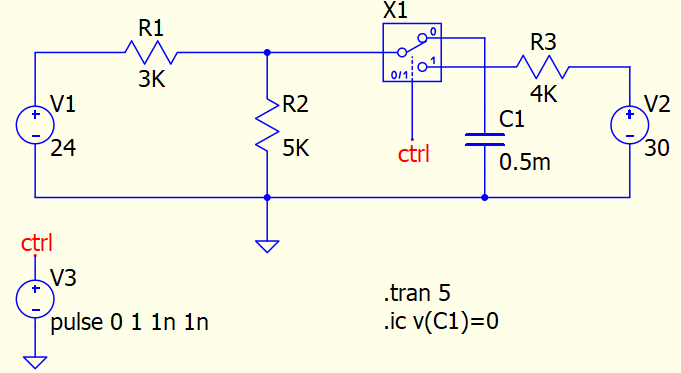

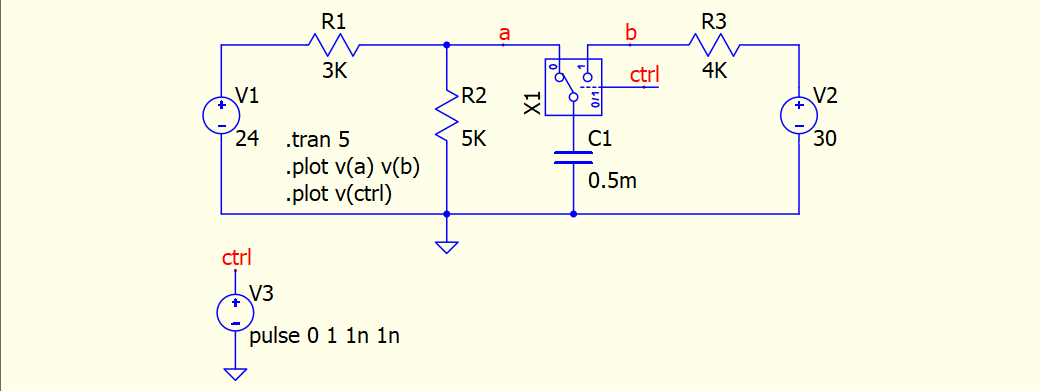

Your schematic does not match the circuit in your book. The common connection of the single-pole double-throw (SPDT) switch should be with the capacitor and not R2.
SadikuExercise.qsch (10.8 KB)
Hello. Thank you for your reply. I really appreciate. I’ll do the modifications here.

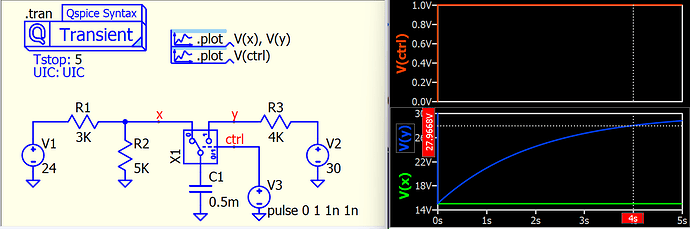

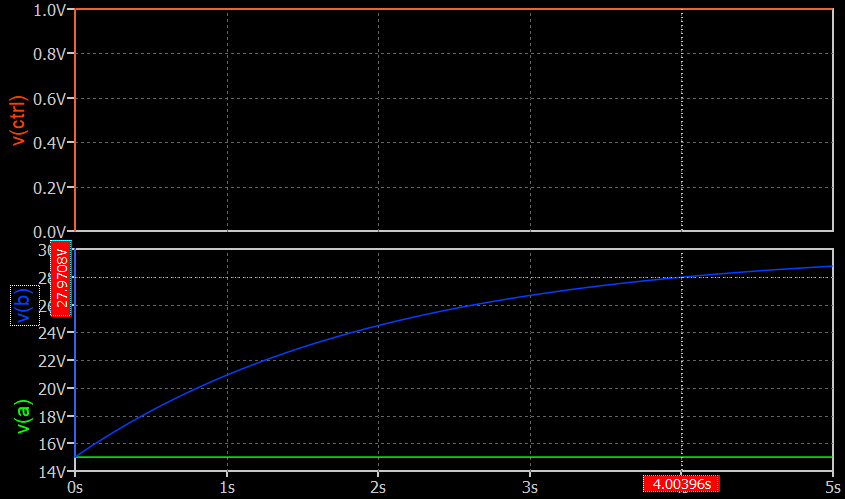

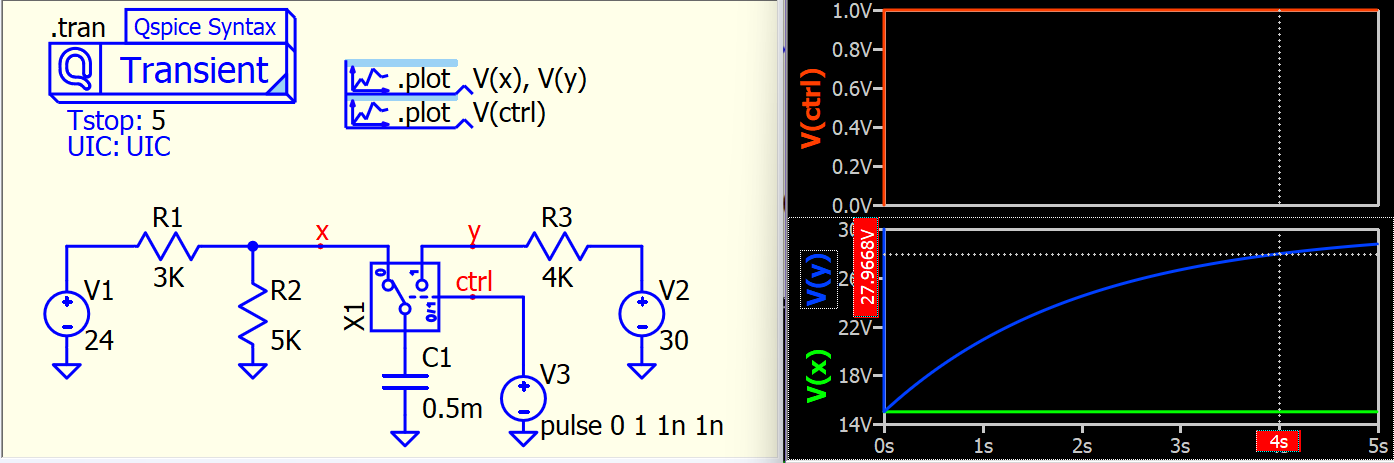

A simple trick, double click marker label, input “4” and Enter, the marker can jump right at 4s.
