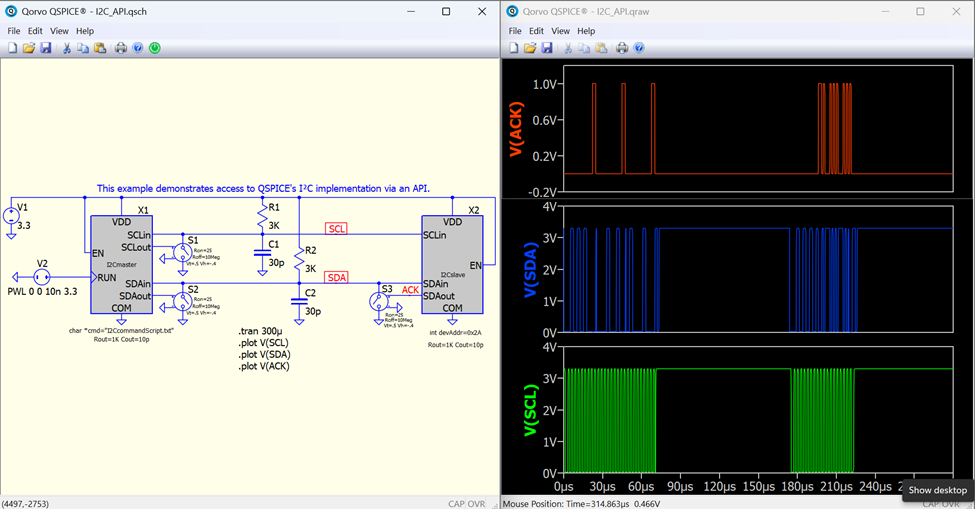

This schematic capture is one by our own Mike Engelhardt. It demonstrates in QSPICE®’s I2C capability. This schematic capture is in the QSPICE release under File=>Open Demo…=>Example I2C_API.qsch. It illustrates good modeling methodology, resulting in better models than otherwise exist. Please send any submissions to tim.mccune@qorvo.com (Schematic Capture Post #052)
